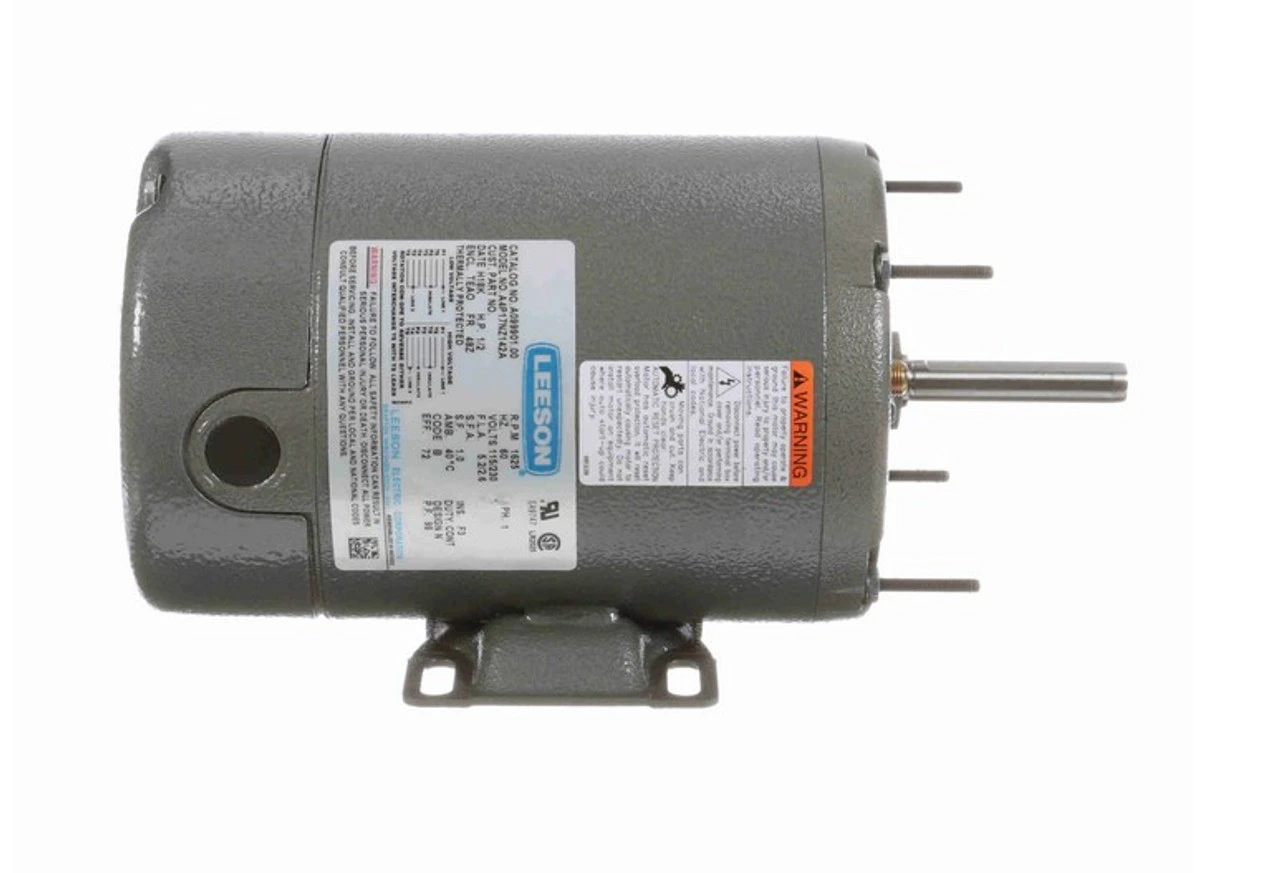

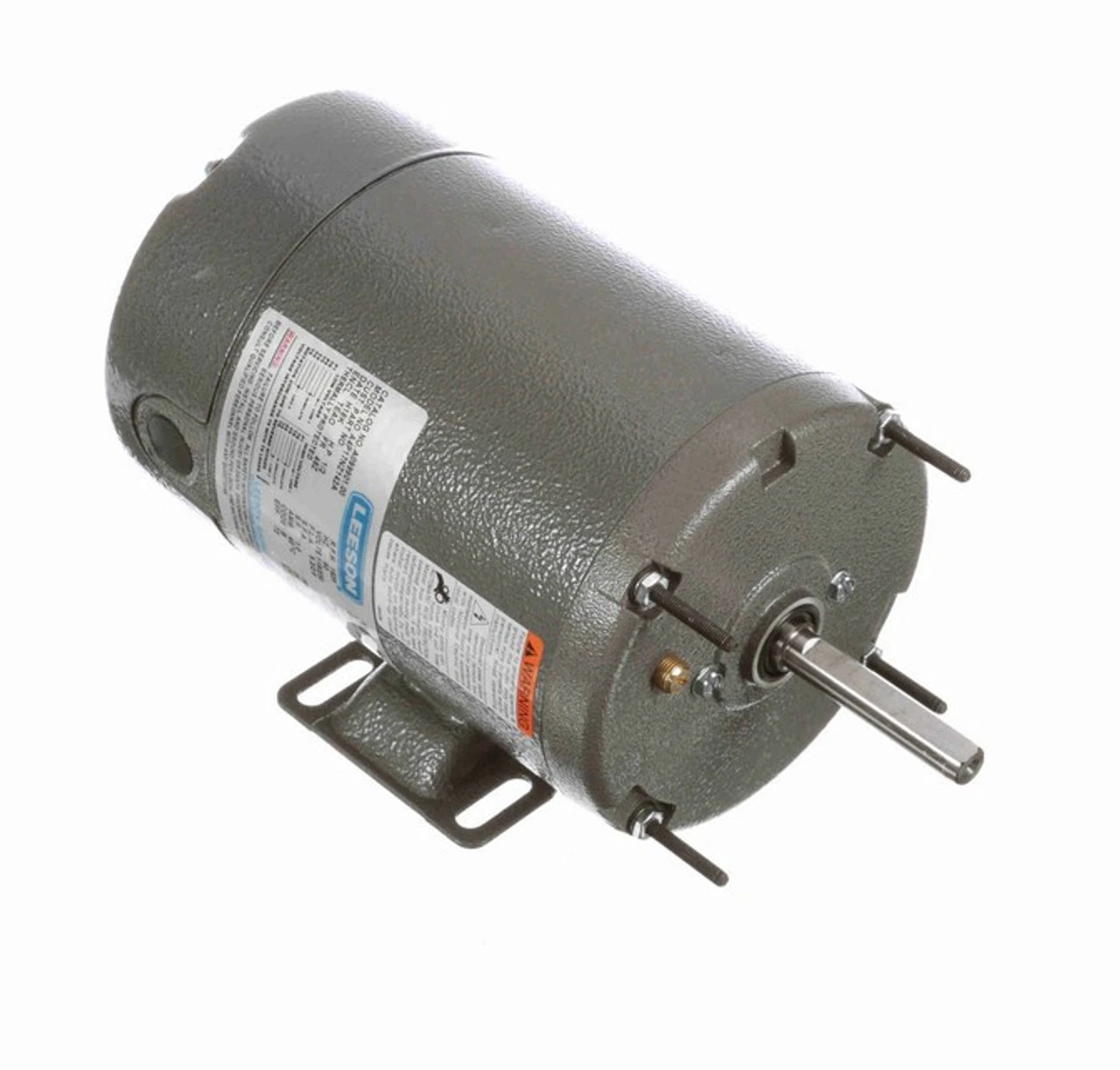

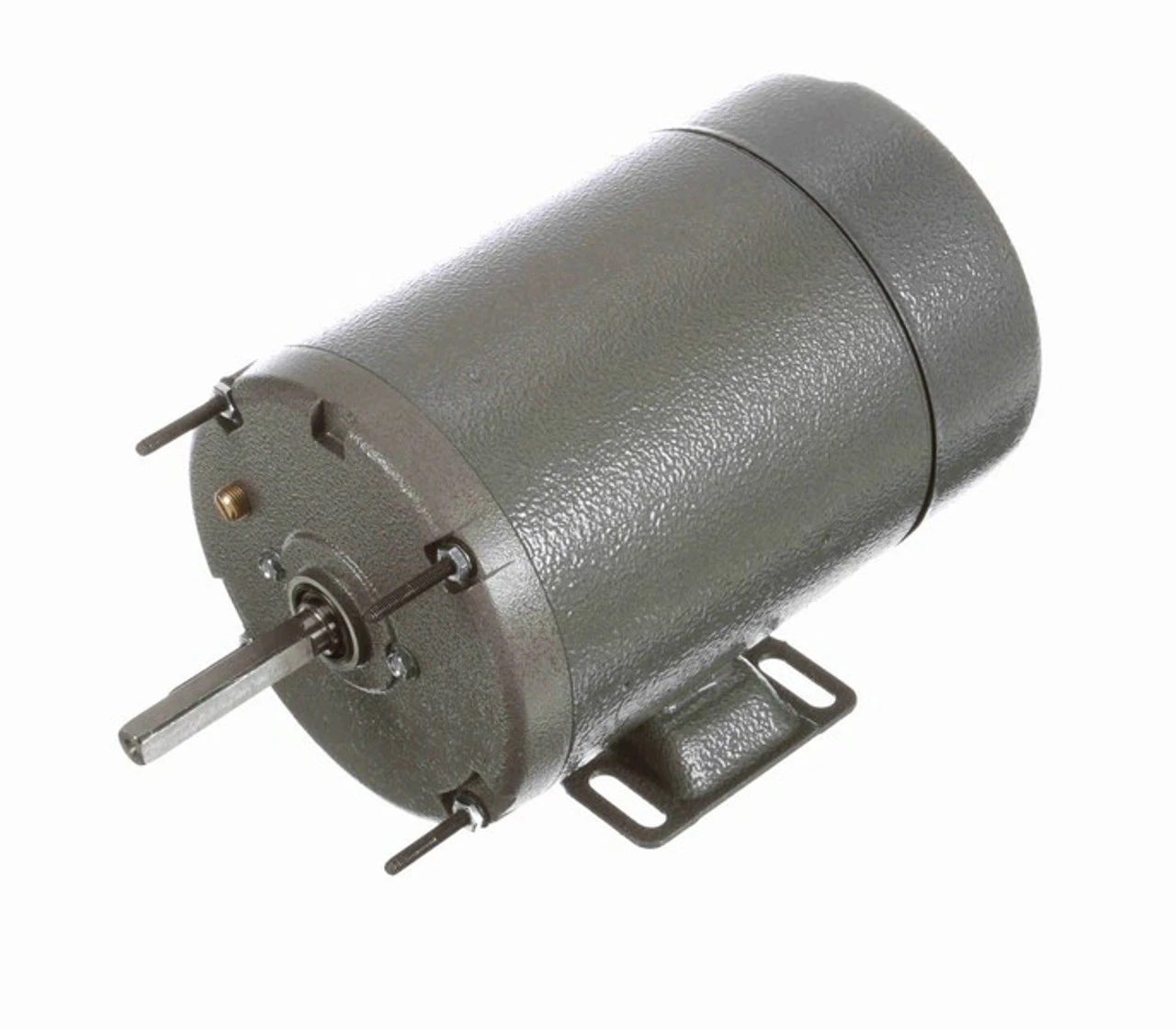

A099901.00 Leeson 1/2 Hp 1800 RPM 115/230V 48Z Frame TEAO 1-Phase Belt Drive Farm Motor

• 1/2 hp 1800 RPM, 5.2/2.6 amps 115/230 Volts 60 Hz. PSC 1-Phase Motor
• NEMA 48Z Frame with Flat Shaft 1/2″ Diameter x 2 1/4″
• Service Factor: 1.0, Overload Protection = Auto
• Rigid Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

Farm duty motor for driving large fans with a belt while still being in the airstream. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air-Over. A099901.00
