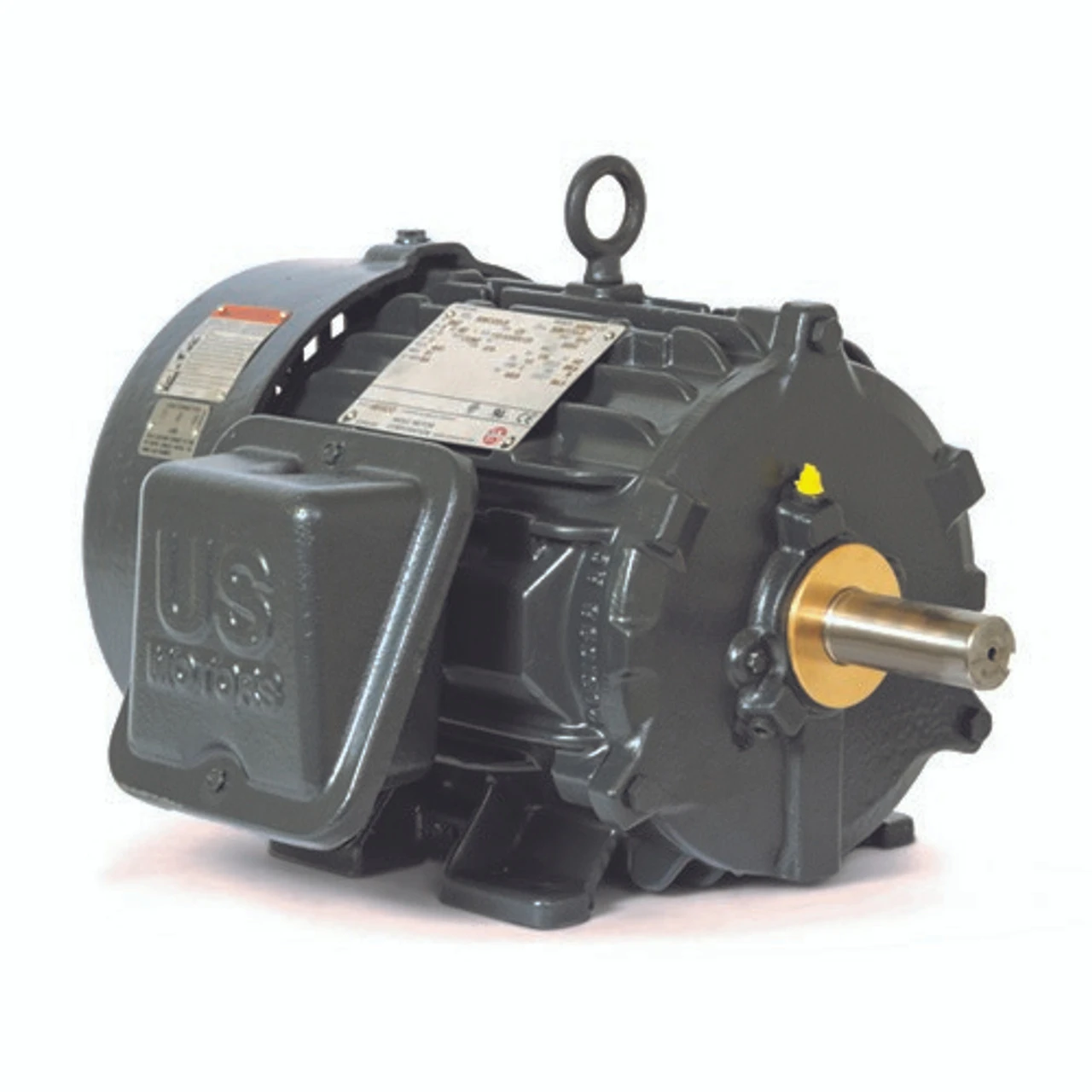

8D32P2C Nidec 1 1/2 Hp 1800 RPM 145T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor

• 1 1/2 hp 1800 RPM, 2.1 amps  460 Volts 60 Hz Three Phase Motor

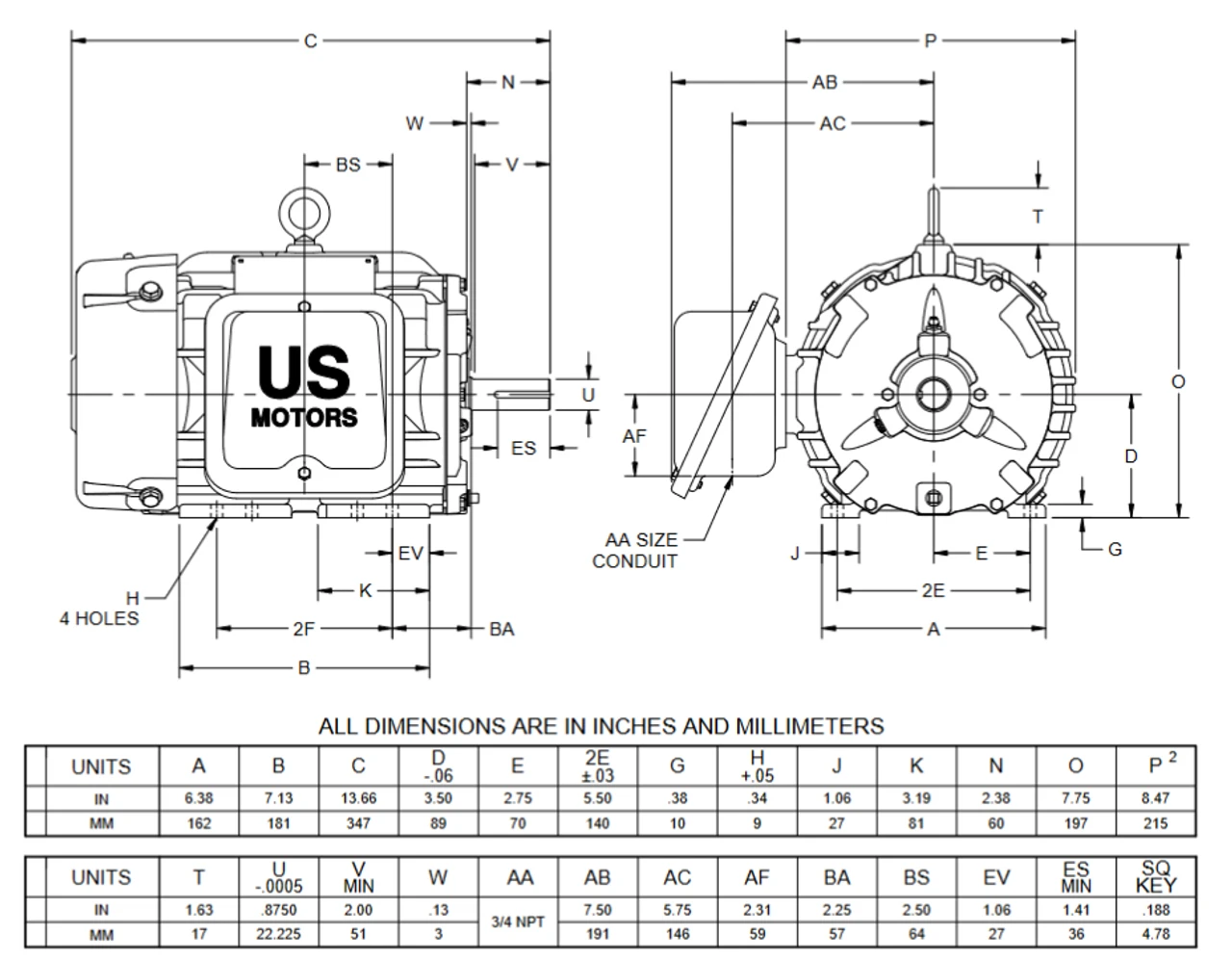

• NEMA 145T Cast Iron Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.15, Overload protection = None
• Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
• 5 Year Manufacture Warranty, 3 year on inverter power

Corrosion resistant inverter duty motor is designed for use in petro-chemical and similar industries. Self-Certified Class 1, Division 2, Groups A, B, C, and D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GG45
