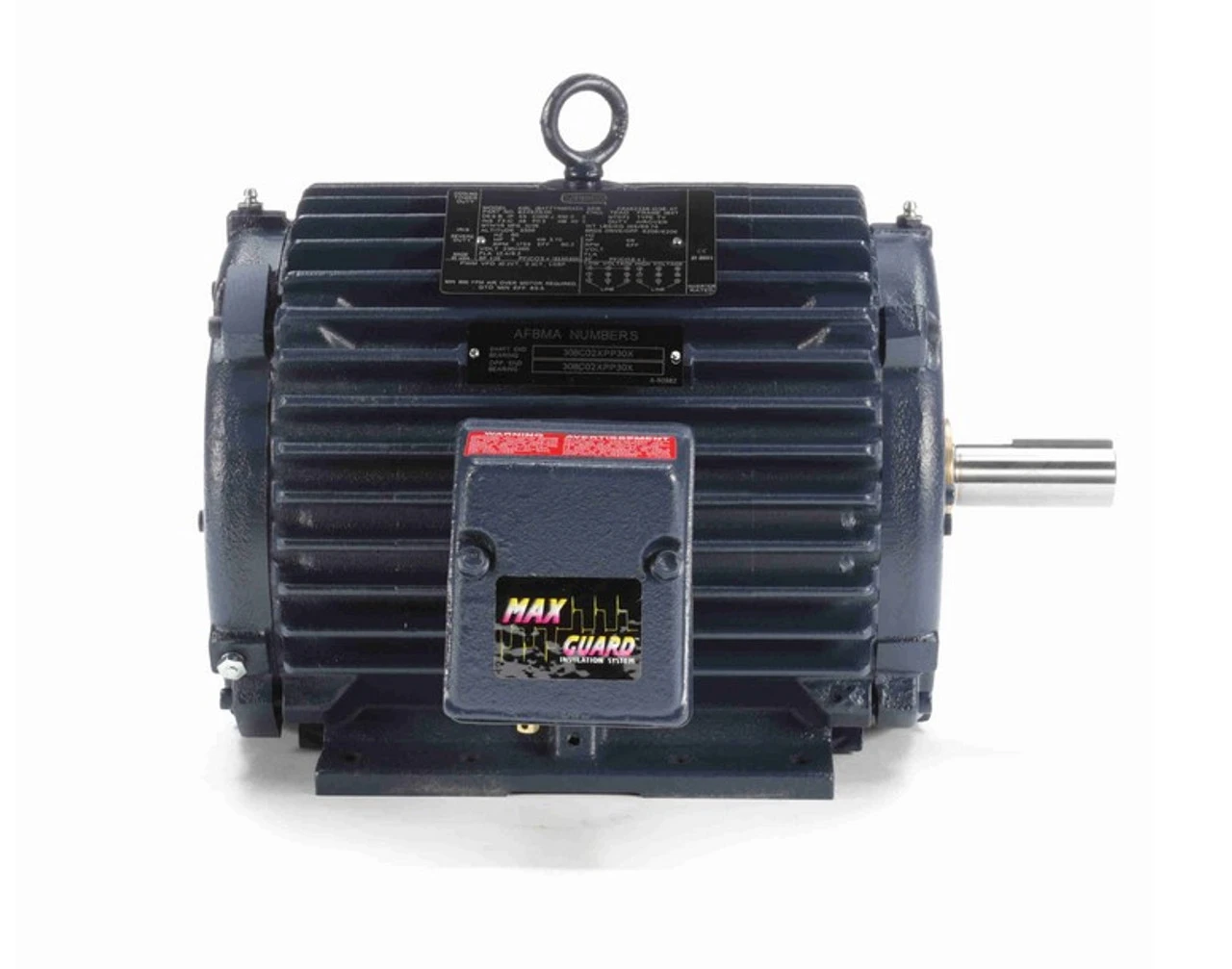

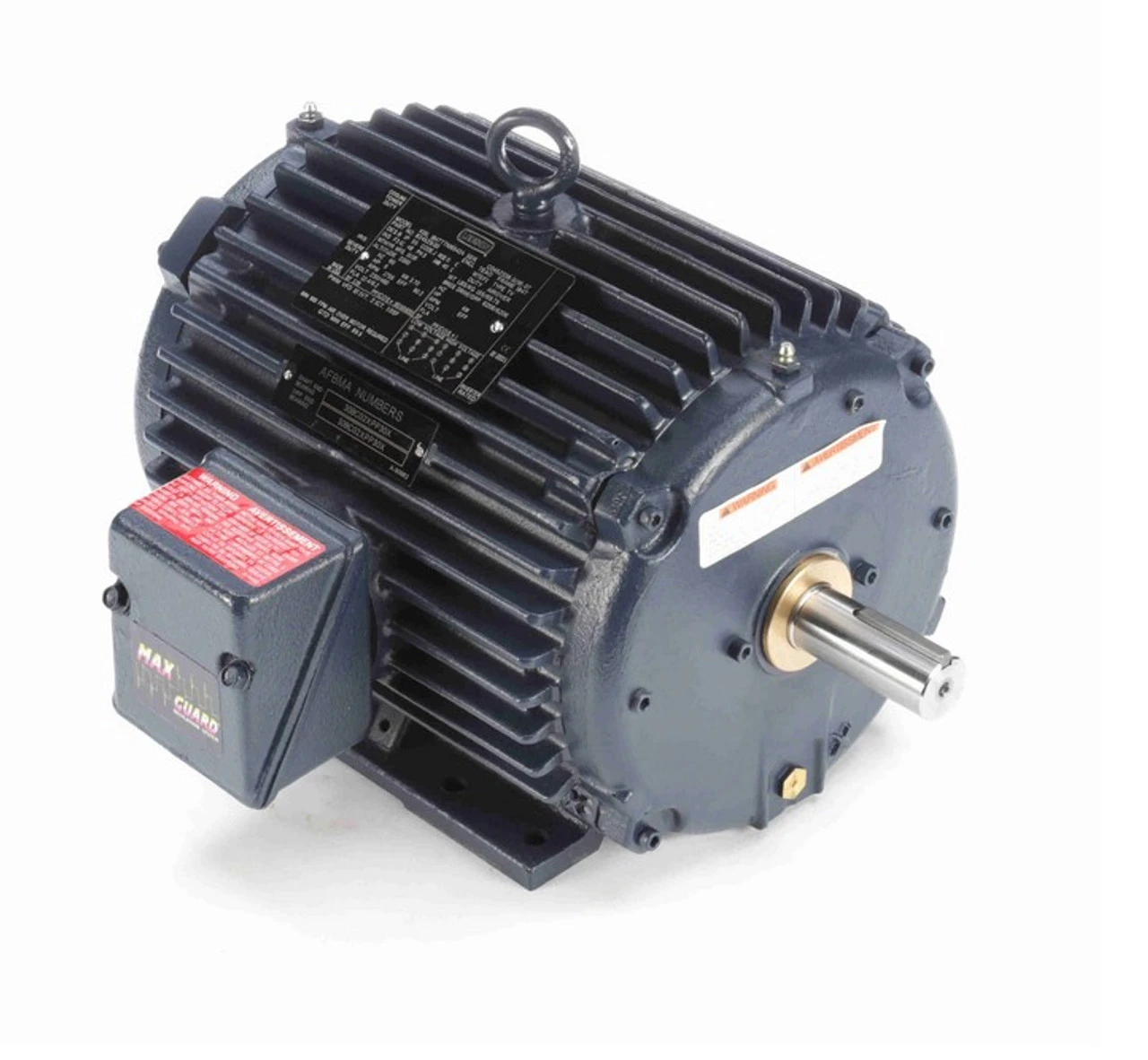

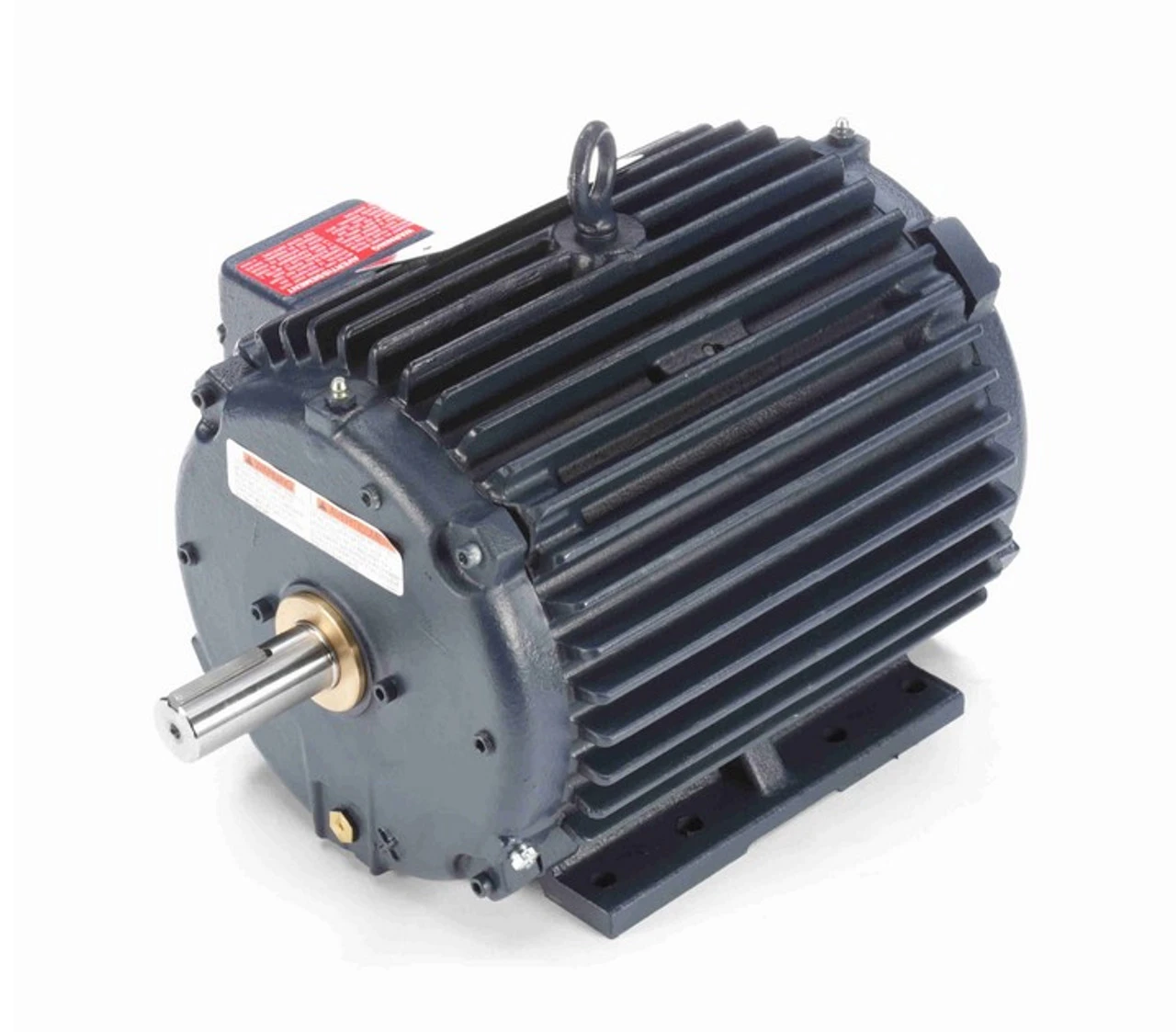

824529.00 Leeson 5 Hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor

• 5 hp 1800 RPM, 12.4/6.2 amps 230/460 Volts 60 Hz. 3-Phase Motor
• NEMA 184T Frame Keyed Shaft 1 1/8″ Diameter x 2 3/4″
• Service Factor: 1.15 Overload Protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Cast iron severe duty motor for use on cooling towers and any other fan application requiring long life and high efficiency. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air Over. 824529.00
