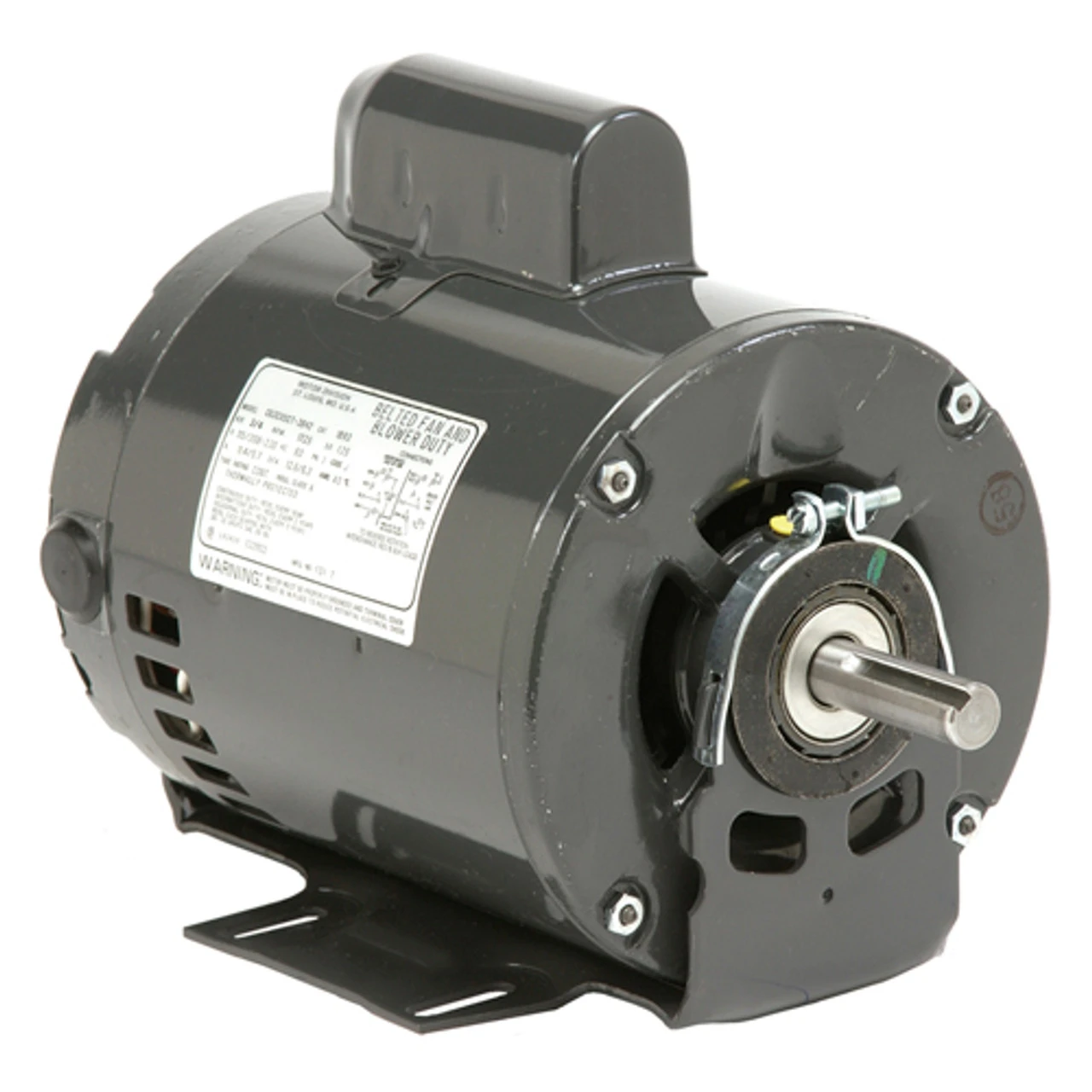

6309 Nidec 1/2 Hp 1800 RPM 100-120/200-240V 5.6″ Dia. (Base) 1-Speed ODP Belt Drive Motor

Original price was: $388.30.Current price is: $97.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/2 hp 1800 RPM (1 speed), 6.3-5.6/3.1-2.8 amps 100-120/200-240V Volts 50/60 Hz Capacitor Start/Run Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 1 1/2″
Service Factor = 1.25, Overload Protection: Auto
Resilient Base Mount, Ball Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, T055CCR1218022B
