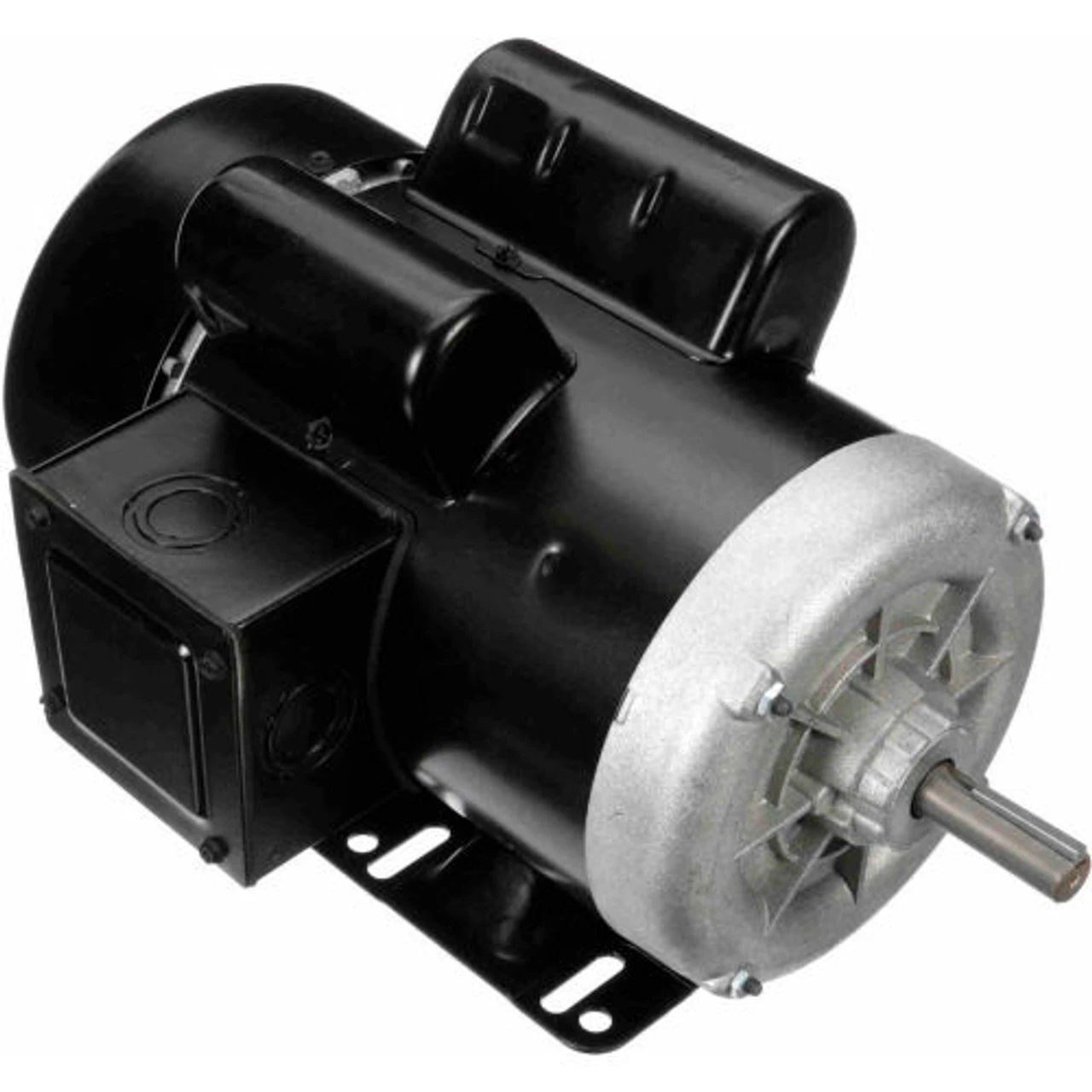

6174 Nidec 1/2 Hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor

Original price was: $328.00.Current price is: $98.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/2 hp 1800 RPM, 6.3-5.6/3.1-2.8 amps 100-120/200-240 Volts 60 Hz Capacitor Start/Run Motor
NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.25 Overload protection = None
Rigid Mount, Ball Bearings, Class B Insulation, Reversible
1 Year Manufacture Warranty

For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T055CCZ1223025B
