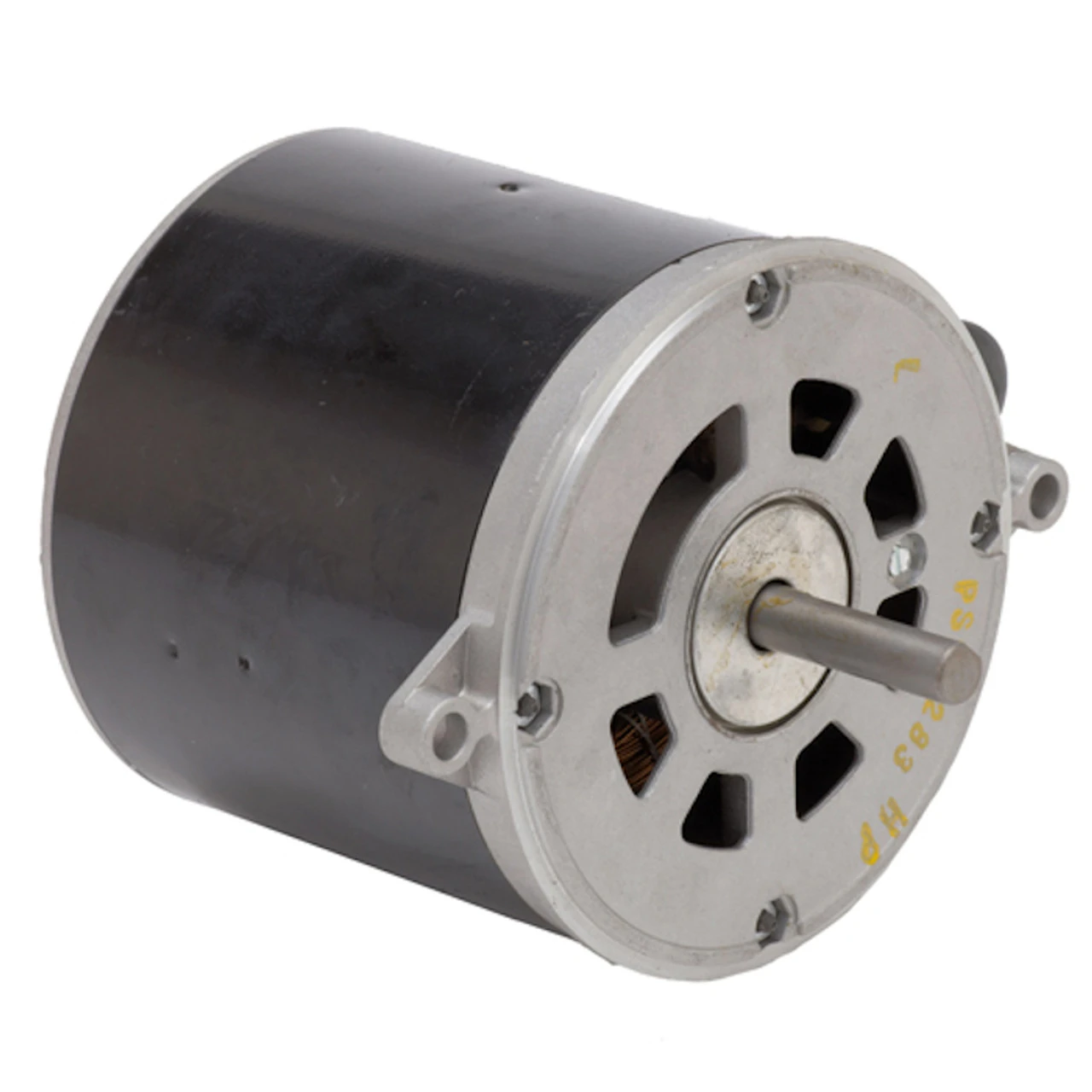

5866 Nidec | 1/7 Hp 3450 RPM 1-Speed 115V, 48M Oil Burner Motor
Original price was: $108.50.$75.95Current price is: $75.95.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
Replacement motor for some Beckett, Calin, Ducaune, Wayne units

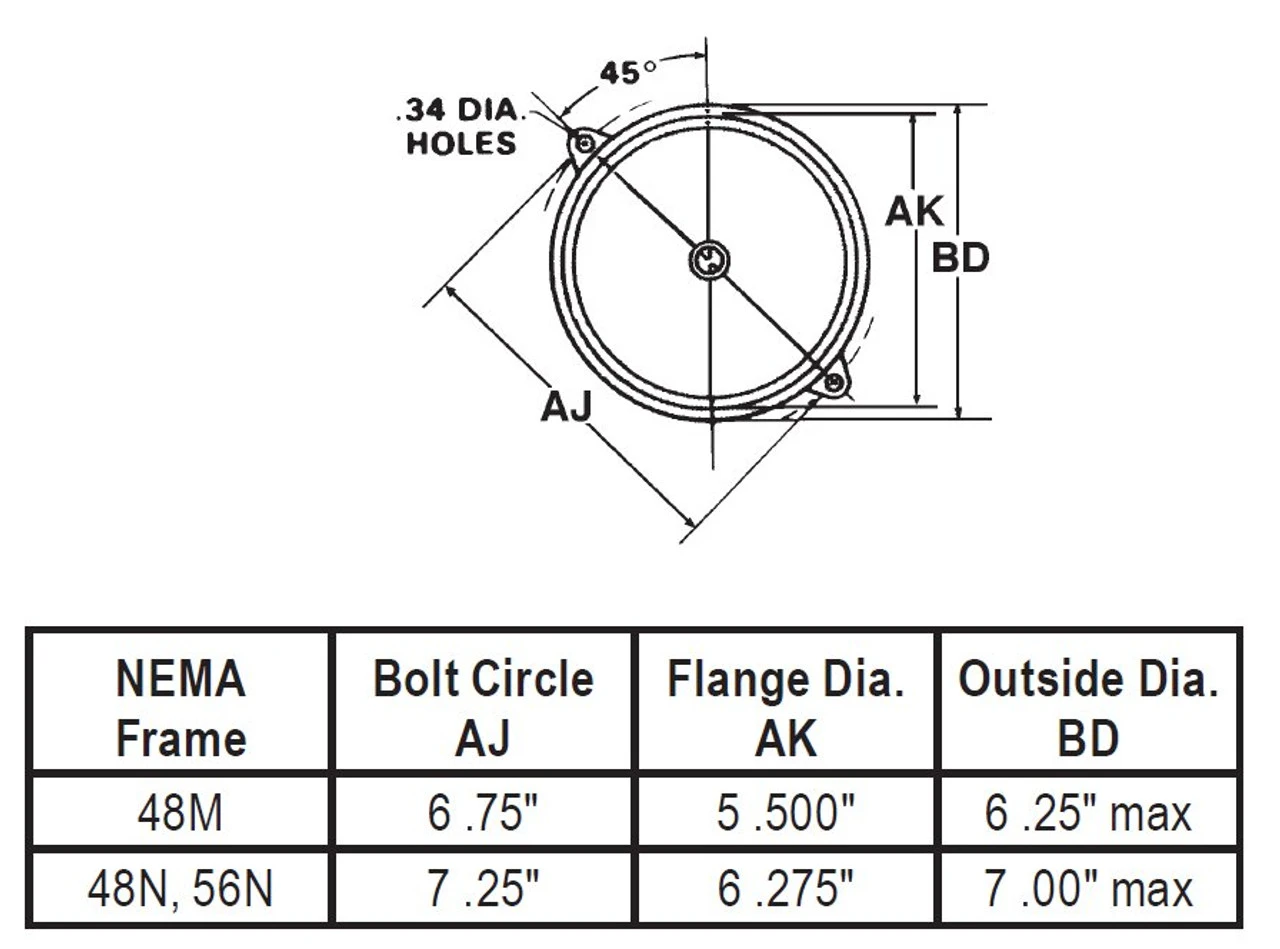

48M Frame Mounting Flange Size
- 1/7 hp 3450 RPM 1-Speed 115V; 2.6 amps, 60hz
- Shaft 1/2″ x 2.0″
- Rotation: CCW shaft end
- 48M Frame
- 5.625″ Diameter
- Motor case length 5.2″
- Ball Bearings
- Flange Mount (2 screws 6-3/4″ apart)
- 20″ wire leads
- 1 Year mfg warranty
Split Phase Oil Burner Motor. Manuel Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature

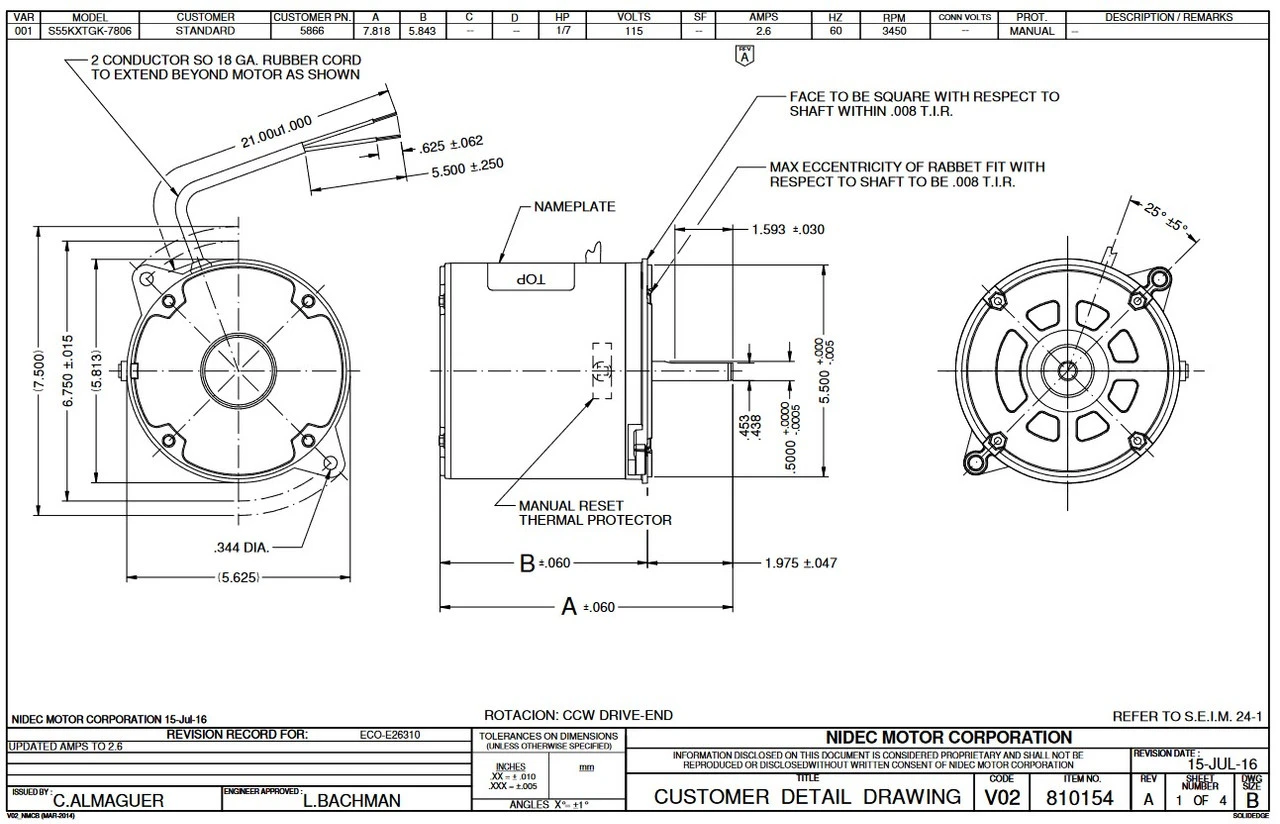

Nidec/US Motor S055TGK7806R13B
