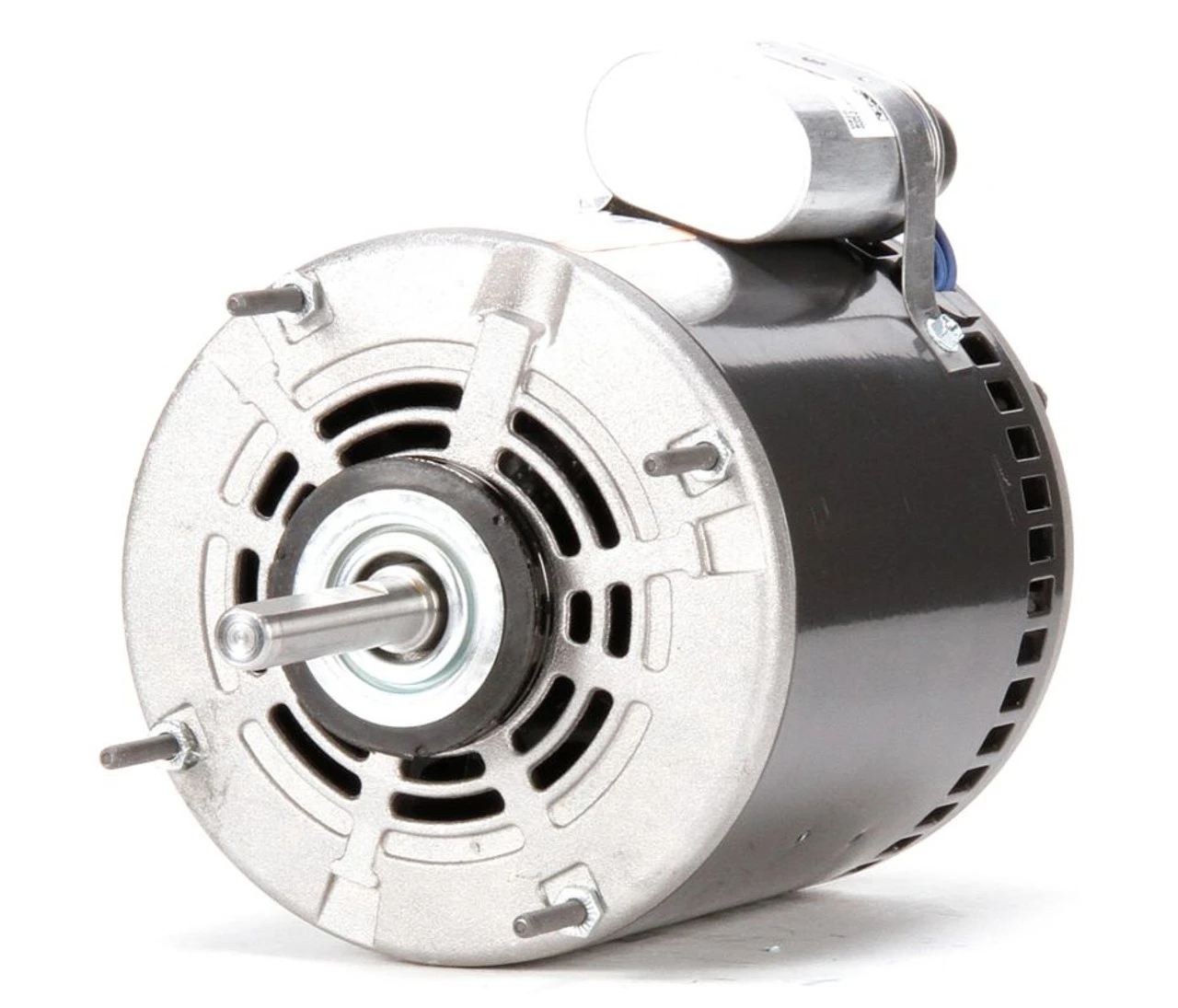

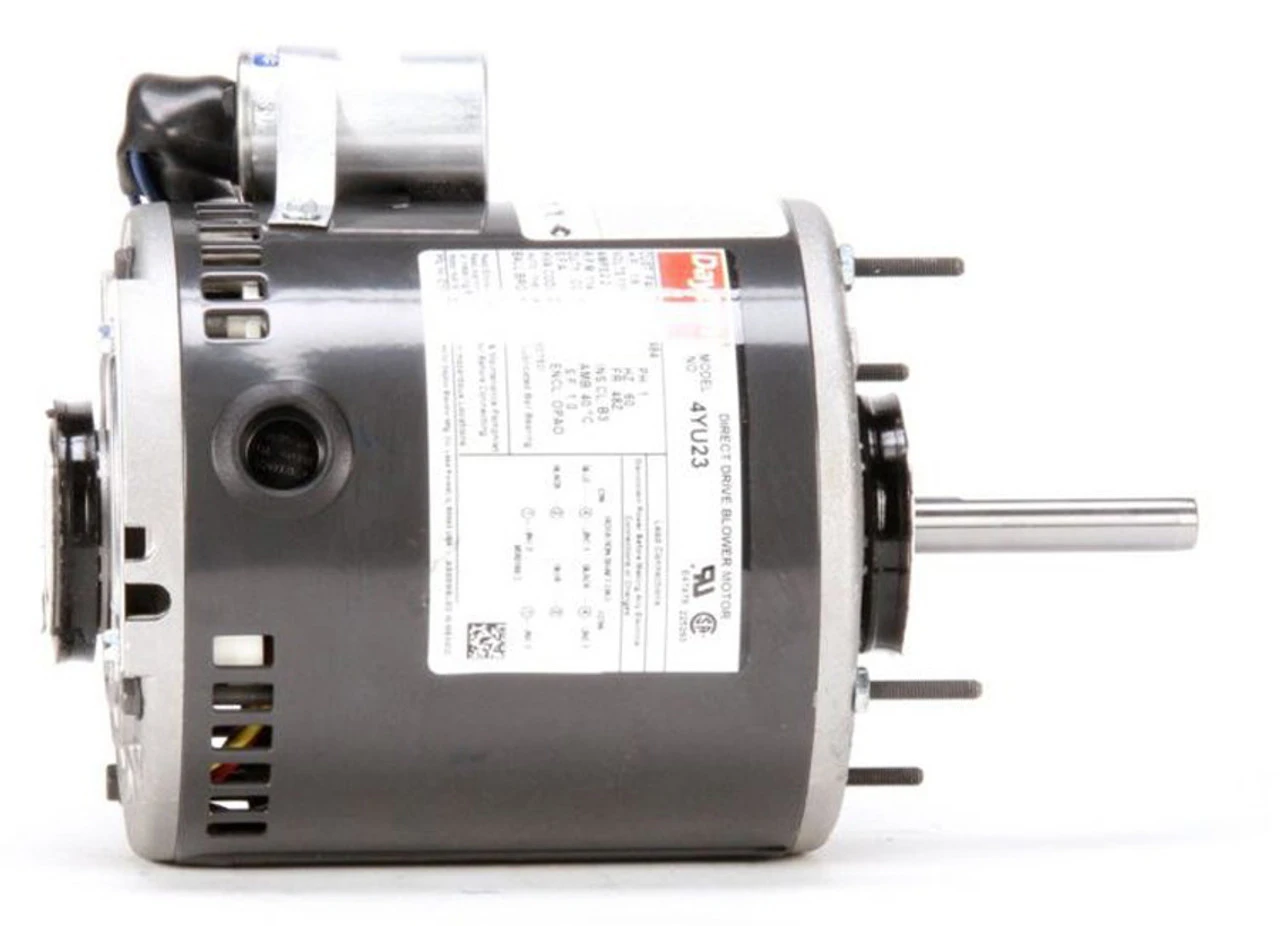

4YU23 Dayton 1/6 HP Direct Drive Blower Motor 1140 RPM 115V

• 1/6 hp 1140 RPM, 2.2 amps, 115 Volts 60 hz.
• 1-Speed, PSC Motor

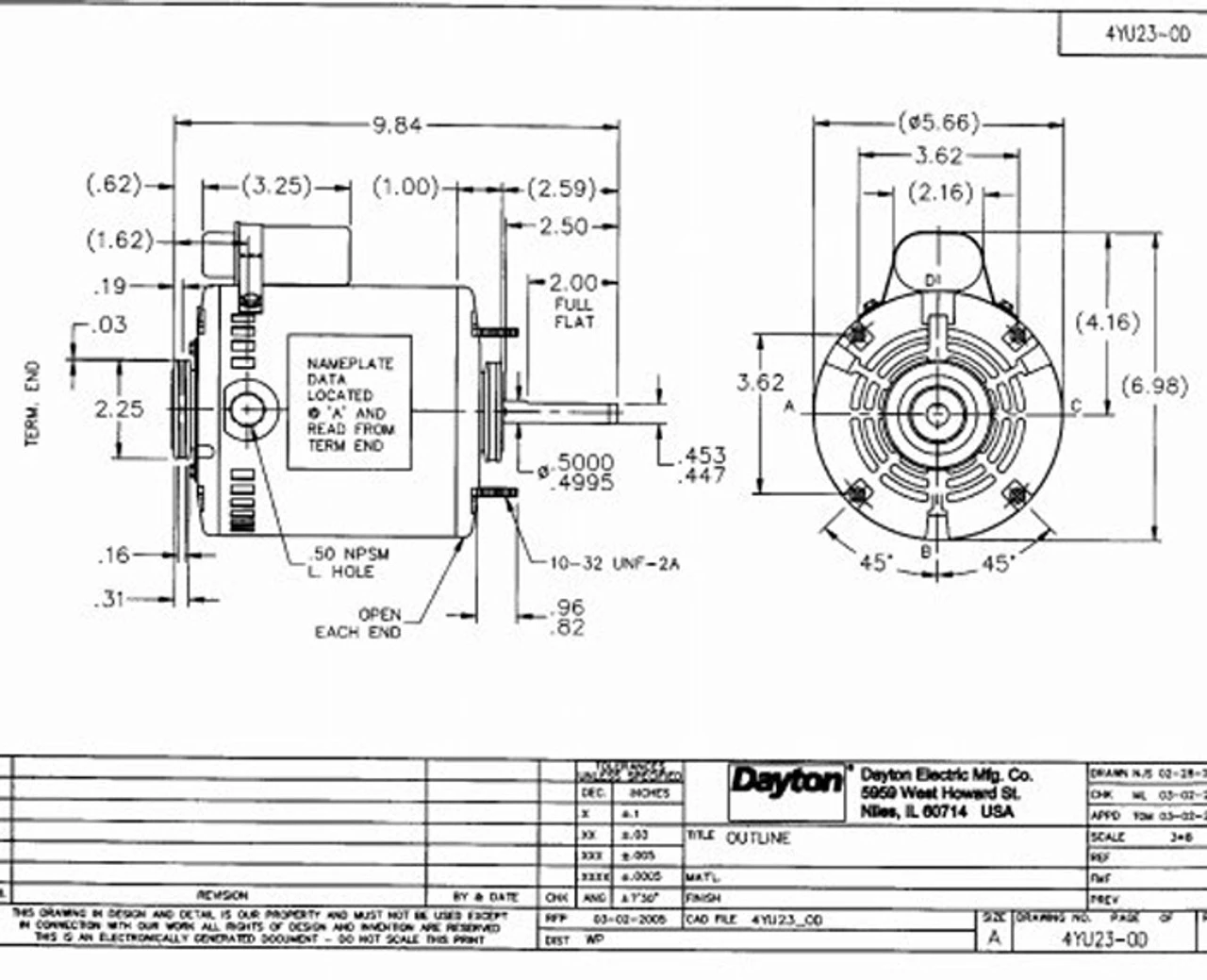

• 5 5/8″ Diameter Motor
• Shaft 1/2″ x 2.5″

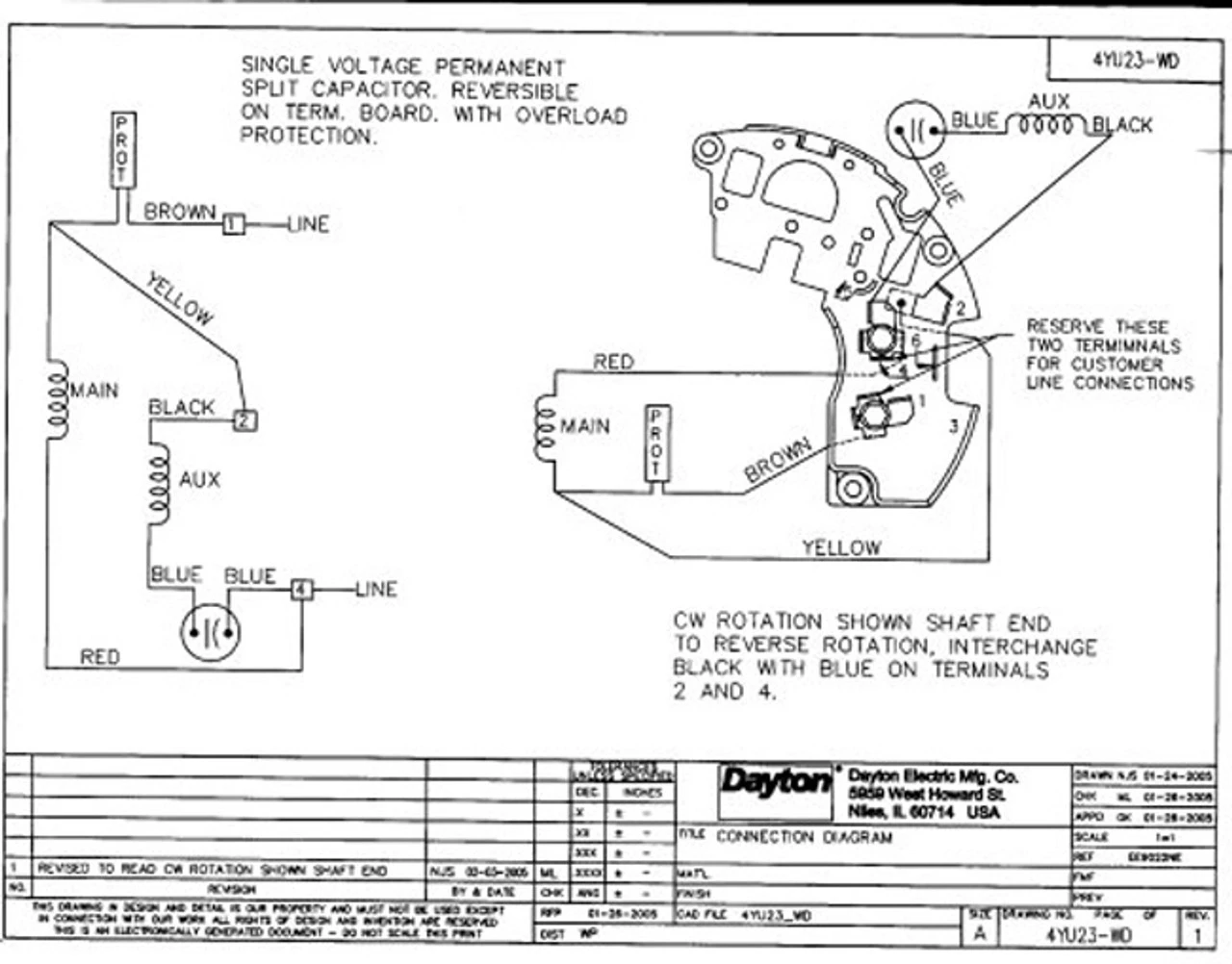

• Rotation = Reversible
• Ball Bearings
• Motor case length 7 11/32″
• Resilient Ring Dia. 2-1/4″; Ring to Ring Center 6-7/8″
• Automatic Overload Protection
• 4 studs shaft end
• Service Factor 1.0
• CSA Certified, UL Recognized
• 1 Year Manufacture Warranty.

Continuous Duty, Open Air Over, Class B Insulation. Replacement Motor for 4HZ36, 4HZ38, 4HZ40, 4HZ42, 5DVR9, 5DVT1 Dayton Ventilators
