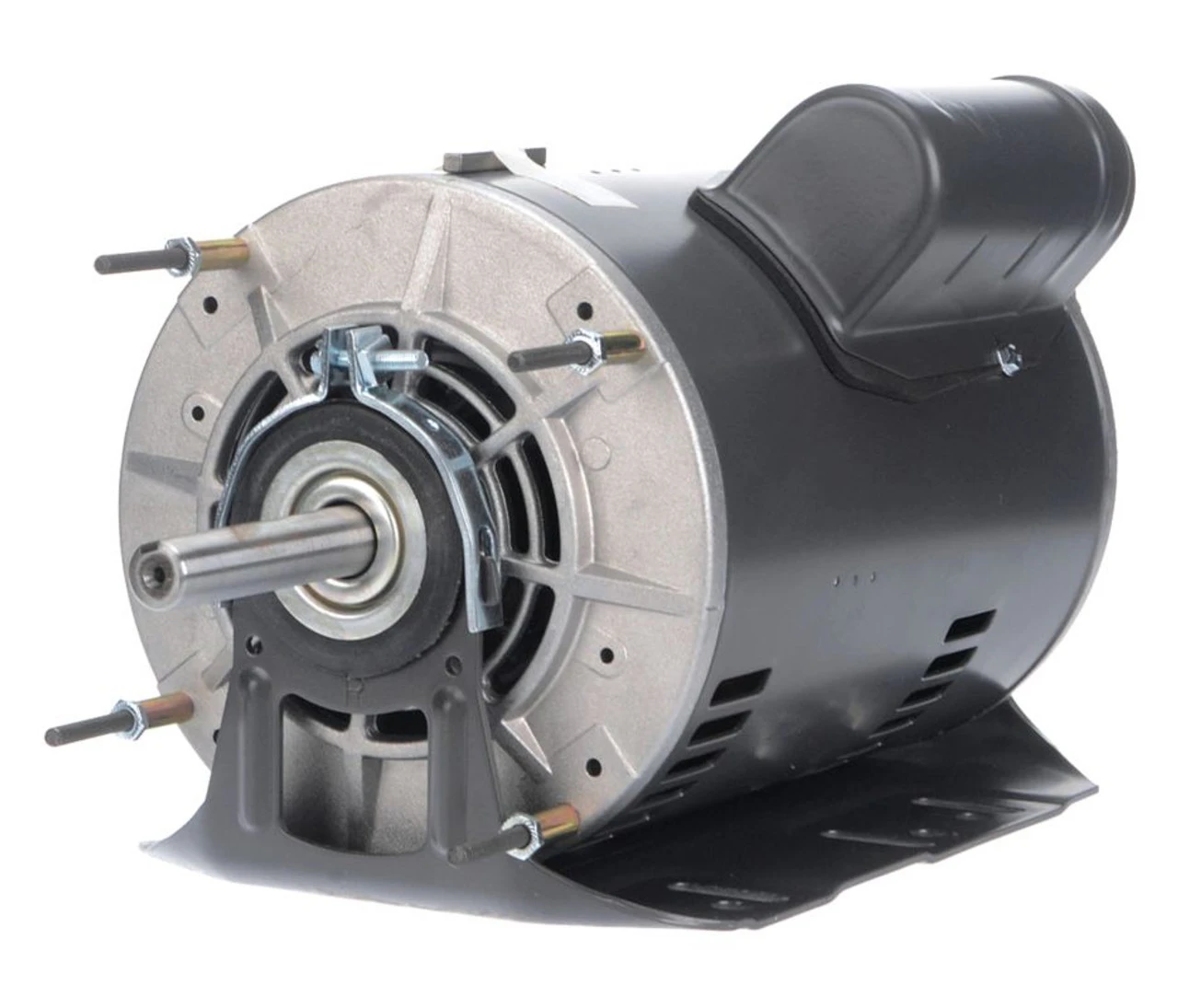

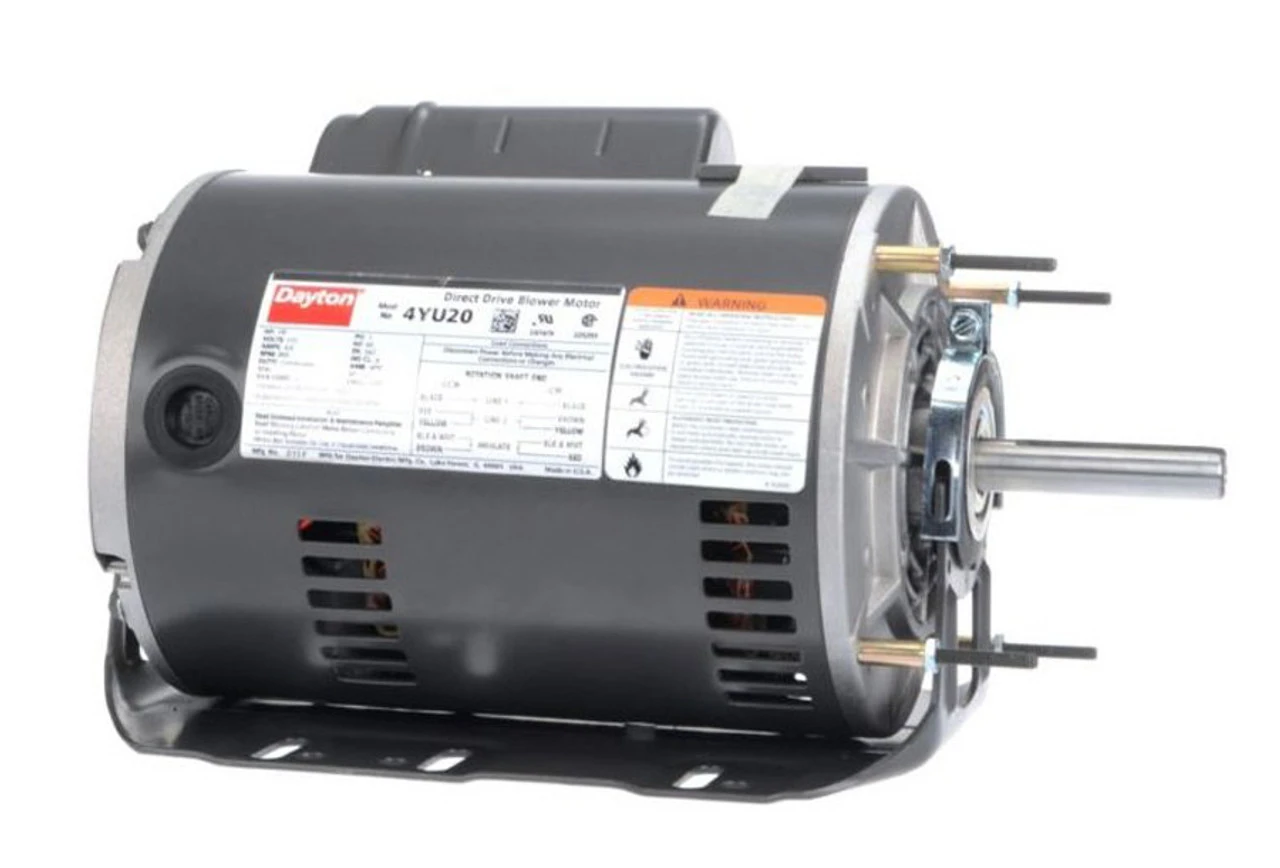

4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V

• 1/4 hp 860 RPM, 4.8 amps, 115 Volts 60 hz.
• 1-Speed, PSC Motor
• 6 1/2″ Diameter Motor
• Shaft 5/8″ x 2.75″
• Rotation = Reversible
• Ball Bearings
• Length less shaft 10.5″
• Automatic Overload Protection
• Resilient Ring Dia. 2-1/2″; Ring to Ring Center 10-1/8″
• 4 studs opposite shaft end
• Service Factor 1.0
• CSA Certified, UL Recognized
• 1 Year Manufacture Warranty.

Continuous Duty, Open drip proof, Class B Insulation. Replacement Motor for 4HZ52, 4HZ54, 4YC73 Dayton Ventilators
