3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor

• 1/3 hp 1725 RPM 1-Speed 115V 4.8 amps
• Shaft 1/2″ x 2.34″
• Includes 5/8″ shaft bushing
• Rotation: Reversible
• 56N Frame
• 6.5″ Diameter
• Motor case length 8.22″
• Ball Bearings

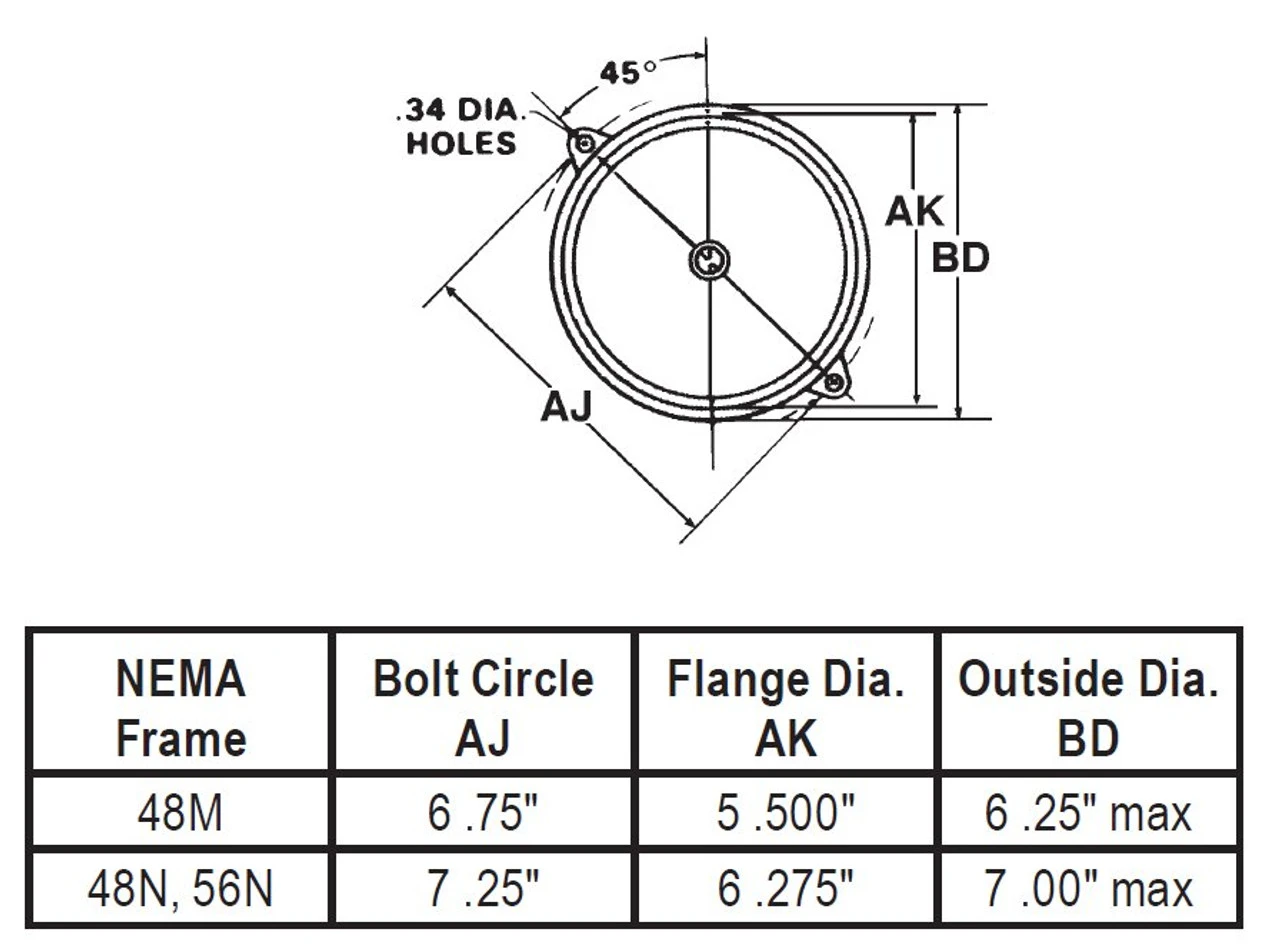

• Flange Mount (2 screws 6-3/4″ apart)
• 20″ wire leads
• 1 Year mfg warranty

Split Phase Oil Burner Motor. Manual Overload Protection. Continuous Duty; Open Enclosure (Totally Enclosed Non-ventilated when mounted); Class B Insulation; 40C Ambient Temperature; 60 Hertz. S063SHJ7367724B.
