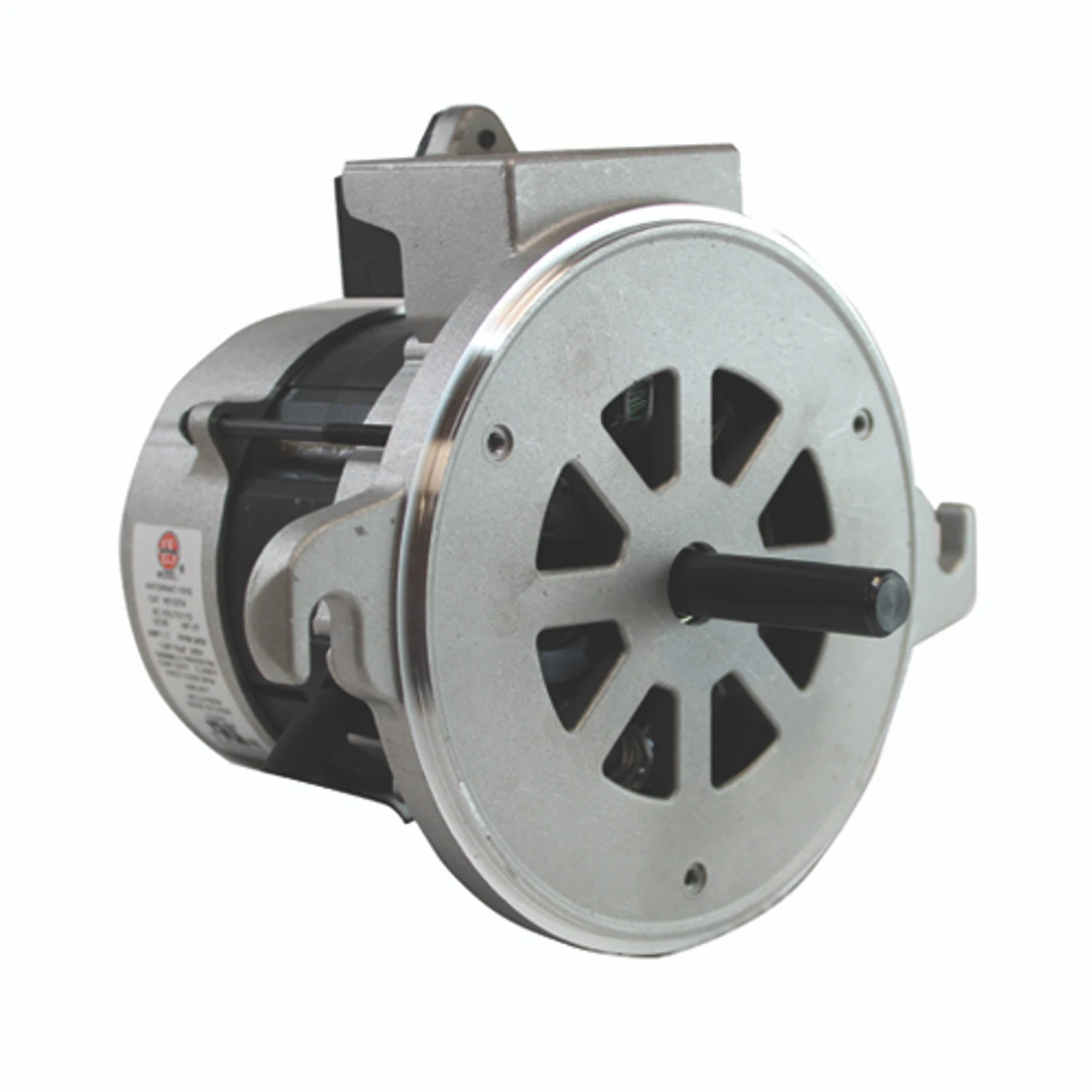

3274 Nidec | 1/7 Hp 3450 RPM 1-Speed 115V, 48M Oil Burner Motor

Original price was: $100.90.Current price is: $70.63.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

OEM Direct Replacement Oil Burner Motor for Beckett, Carlin, Ducane, Wayne
1/7 HP, 3450 RPM, 115 Volts, 48M Frame

1/7 hp 3450 RPM 1-Speed 115V; 1.7 amps, 60HZ
Shaft 1/2″ x 2.0″
Rotation: CCW shaft end
48M Frame
6.25″ Diameter
Ball Bearings

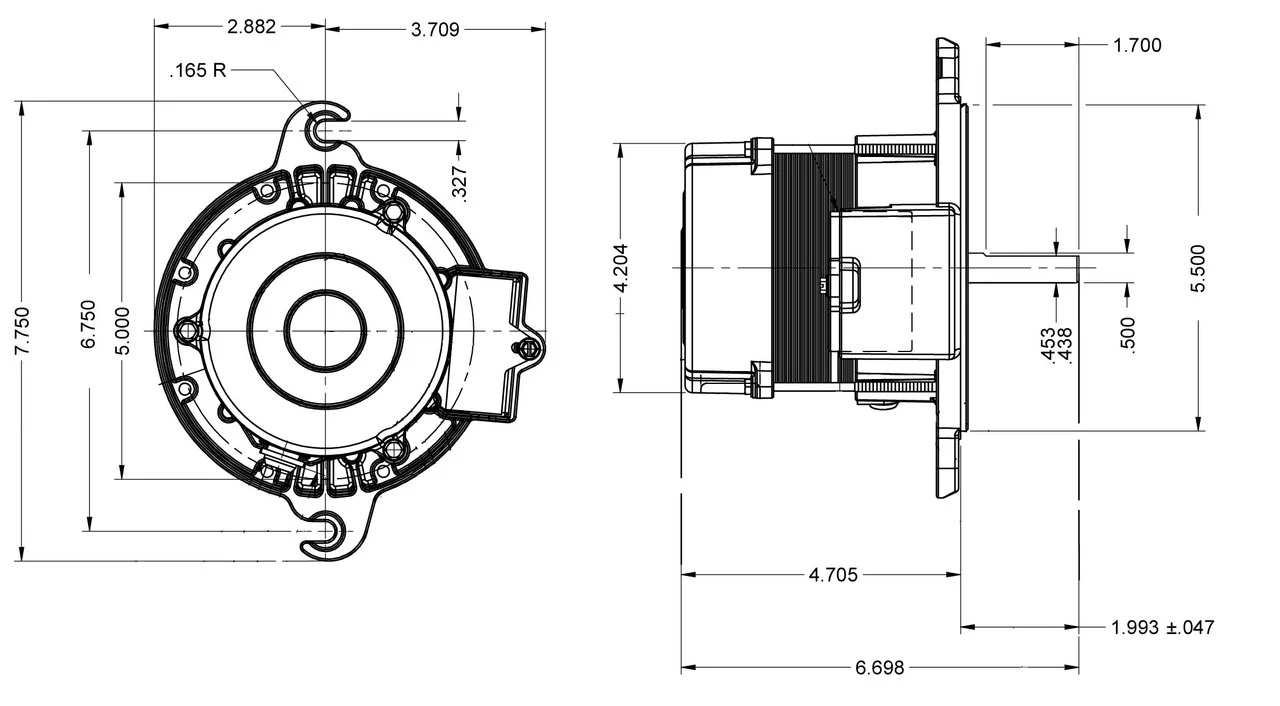

Flange Mount (2 screws 6-3/4″ apart)
20″ Power Leads
PSC Motor – Preinstalled Capacitor
Automatic Overload Protection; Class F Insulation; 40C Ambient Temperature
1 Year Manufacture Warranty

Applications: Domestic high and low pressure oil burners and other applications where 48M flange mounting is required. This motor is open shaft side for ventilation. All mounting dimensions such as location of ears, diameter of rabbet fit and shaft size are in accordance with NEMA standards.

Suggested replacement for:
Beckett 21805U, AF/AFG/NX Series Burners
Century OBK6002V1
Nidec/US Motor K041AAT1016013J, K41GWAAT-1016
Dayton 3AAC3
