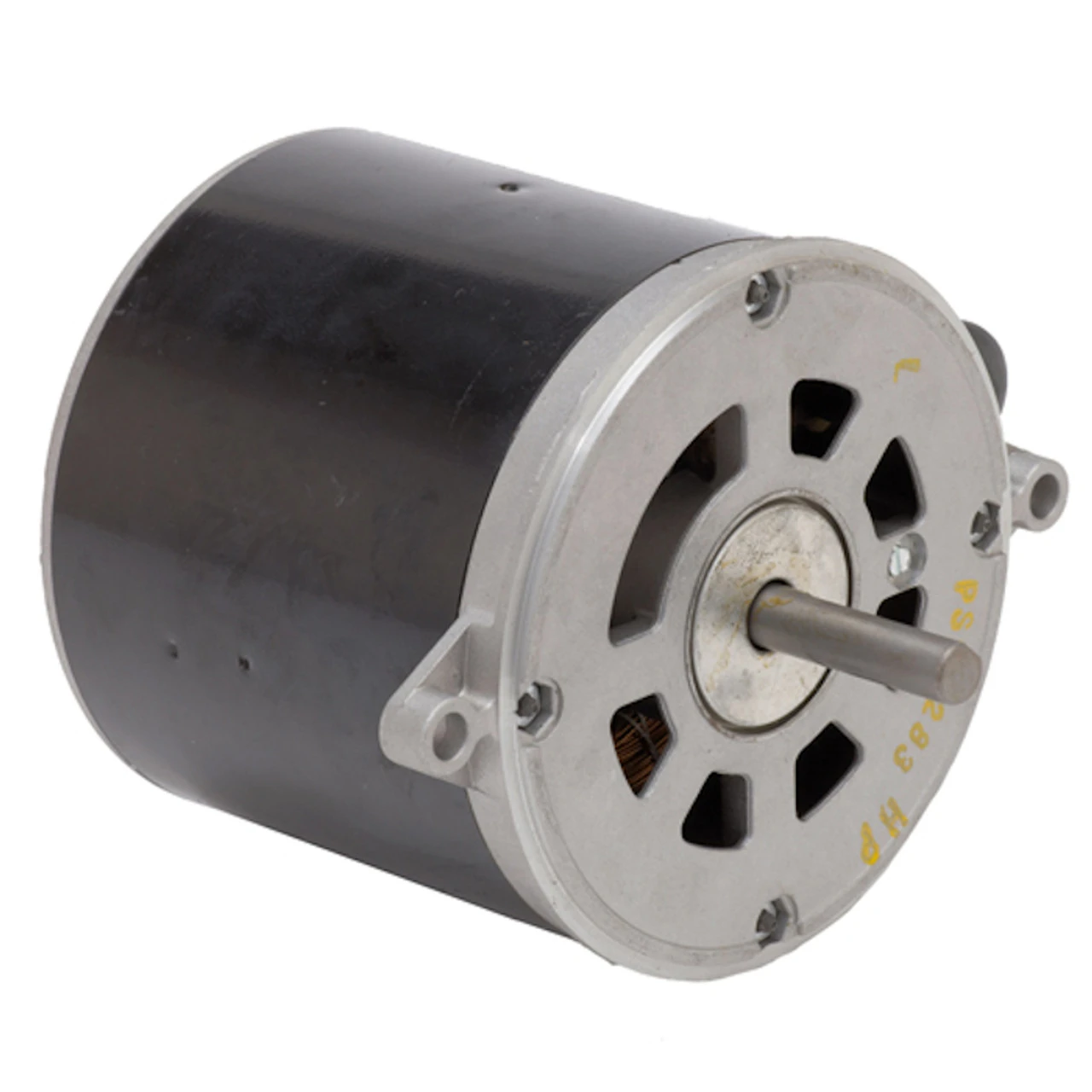

3252 Nidec | 1/6 Hp 1725 RPM 1-Speed 115V, 48N Oil Burner Motor

• 1/6 hp 1725 RPM 1-Speed 115V; 3.1 amps
• Shaft 1/2″ x 2.0″
• Rotation: Reversible
• Frame 48N
• 5.6″ Diameter
• Motor case length 6.8″
• Ball Bearings

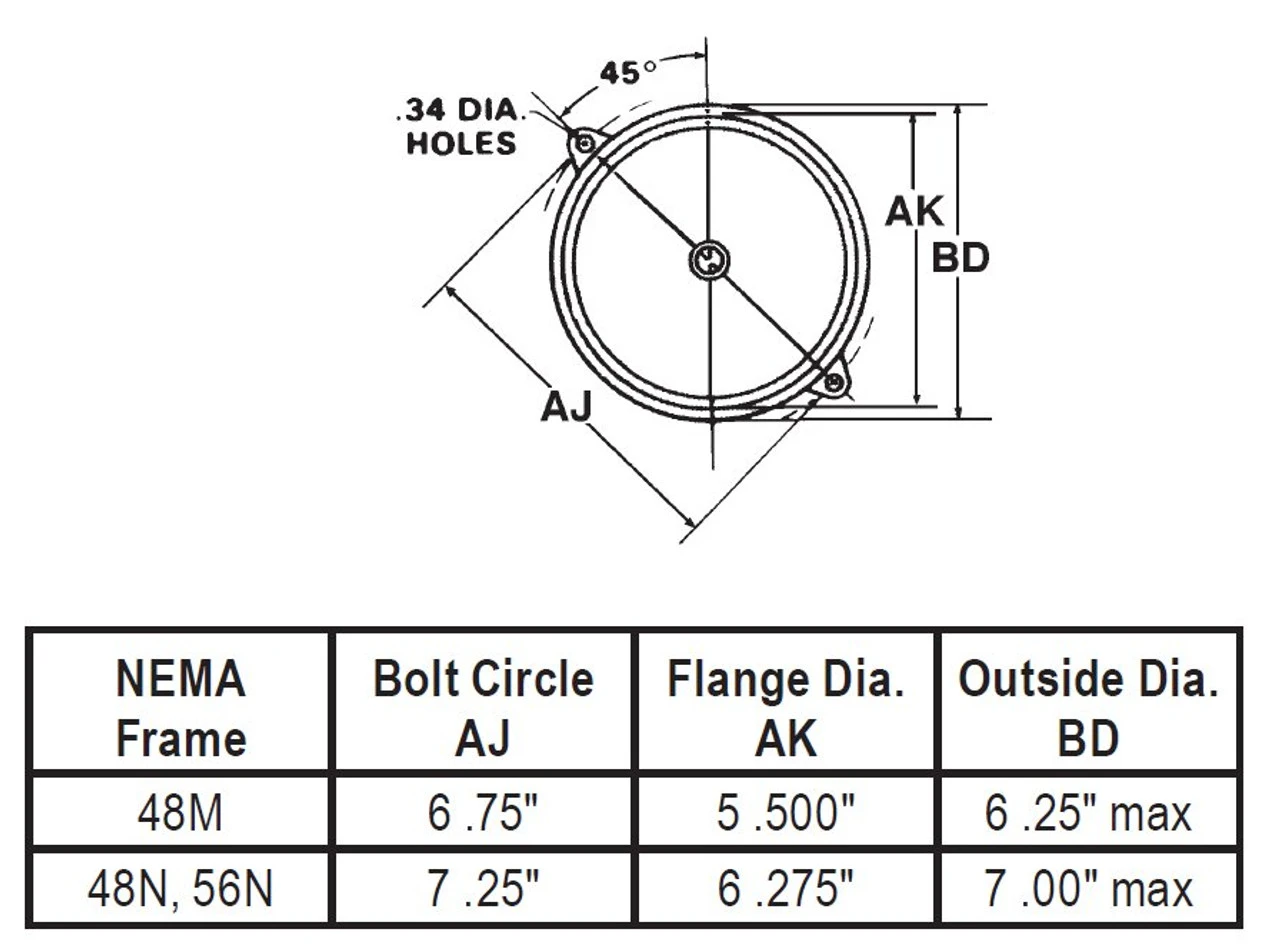

• Flange Mount (2 screws 6-3/4″ apart)
• 24″ wire leads
• 1 Year mfg warranty

Split Phase Oil Burner Motor. Manual Overload Protection. Continuous Duty; Open Enclosure (Totally Enclosed Non-ventilated when mounted); Class B Insulation; 40C Ambient Temperature; 60 Hertz. S055TBB7618R14B.
