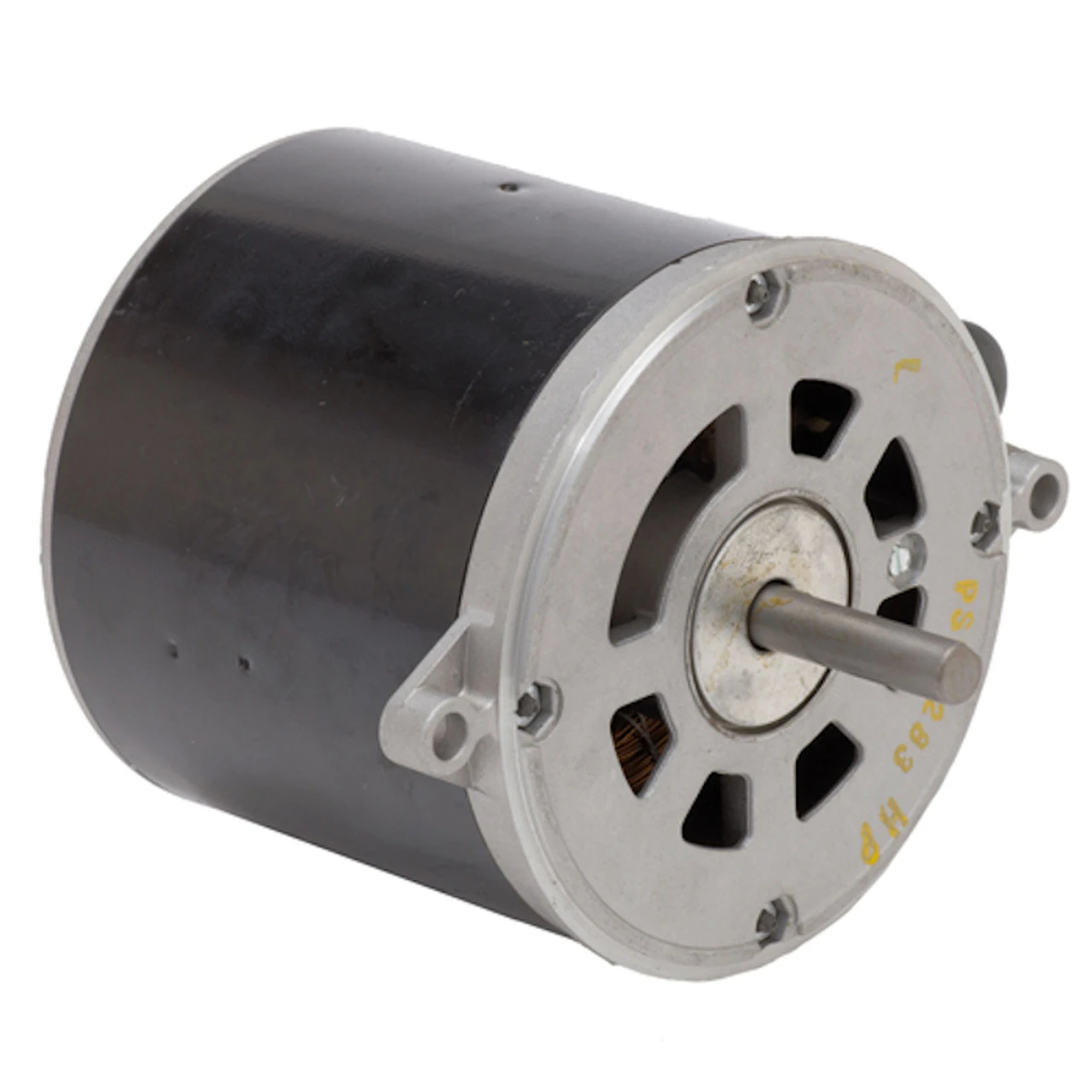

2097 Nidec | 1/8 Hp 3450 RPM 1-Speed 115V, 48N Oil Burner Motor

• 1/8 hp 3450 RPM 1-Speed 115V; 2.7 amps
• Shaft 1/2″ x 2.0″
• Rotation: Reversible
• 48N Frame
• 5.6″ Diameter
• Motor case length 5.84″
• Ball Bearings

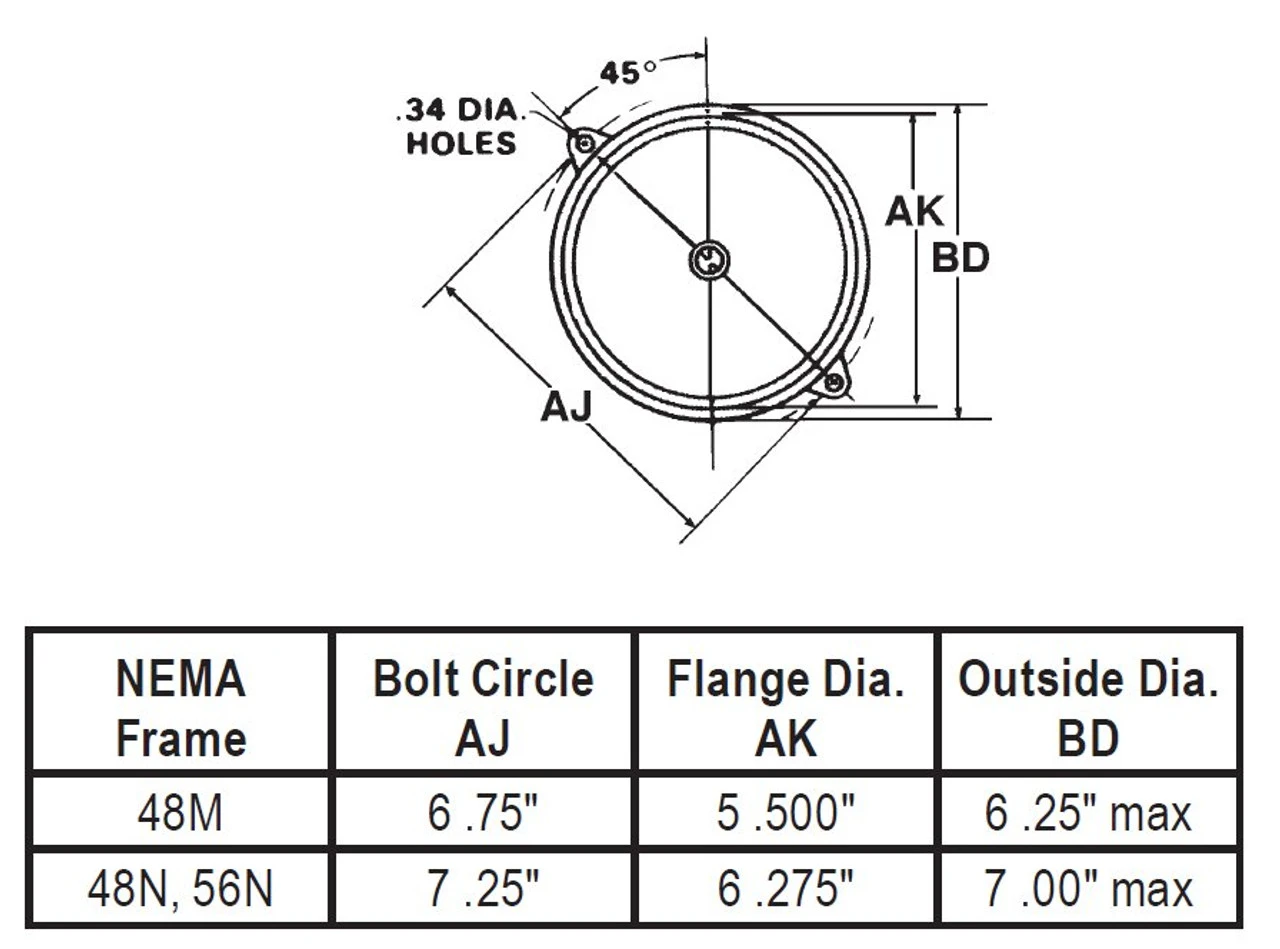

• Flange Mount (2 screws 6-3/4″ apart)
• 24″ wire leads
• 1 Year mfg warranty

Split Phase Oil Burner Motor. Manual Overload Protection. Continuous Duty; Open Enclosure (Totally Enclosed Non-Ventilated when mounted); Class B Insulation; 40C Ambient Temperature; 60 Hertz. SD55SAP2941R14B.
