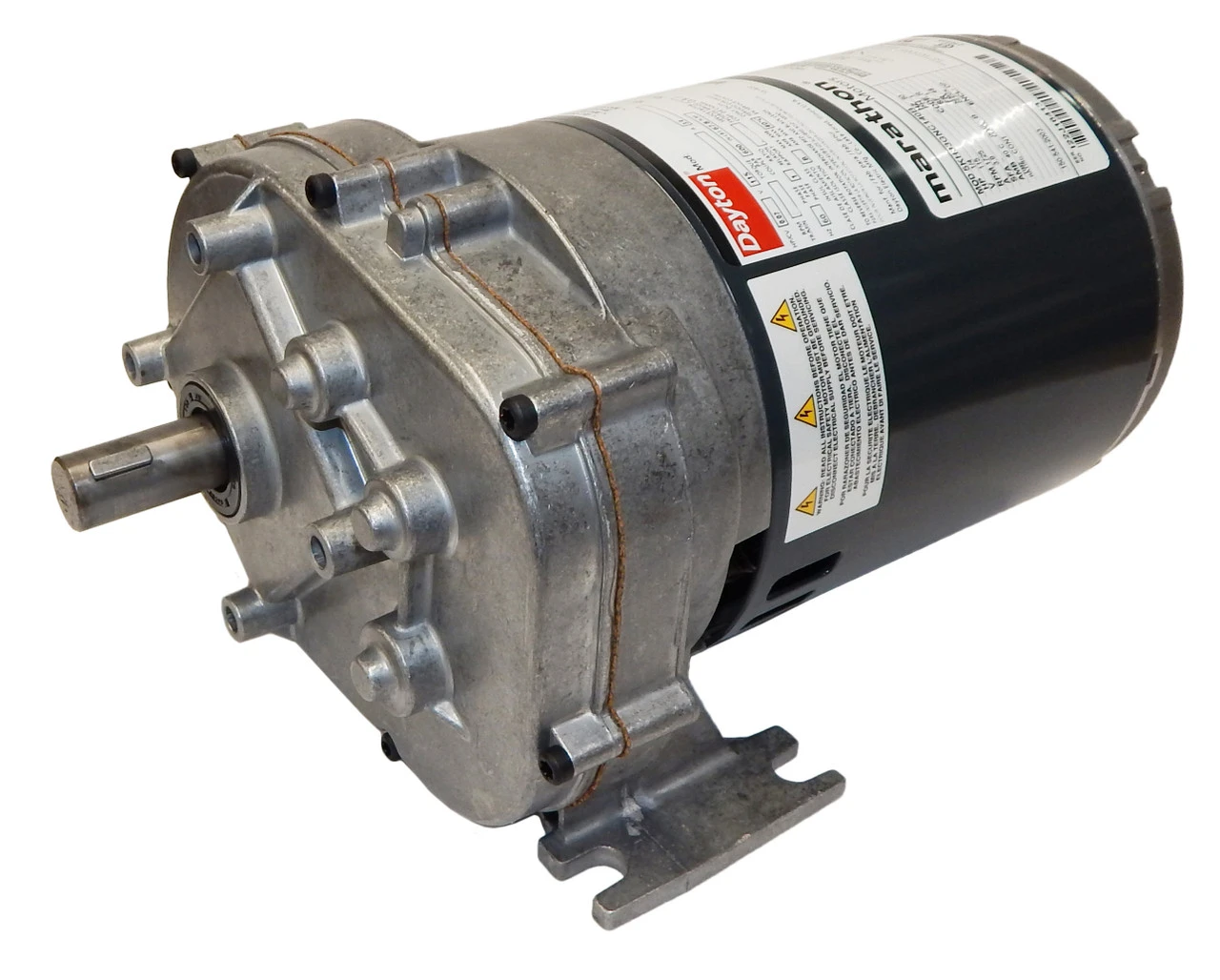

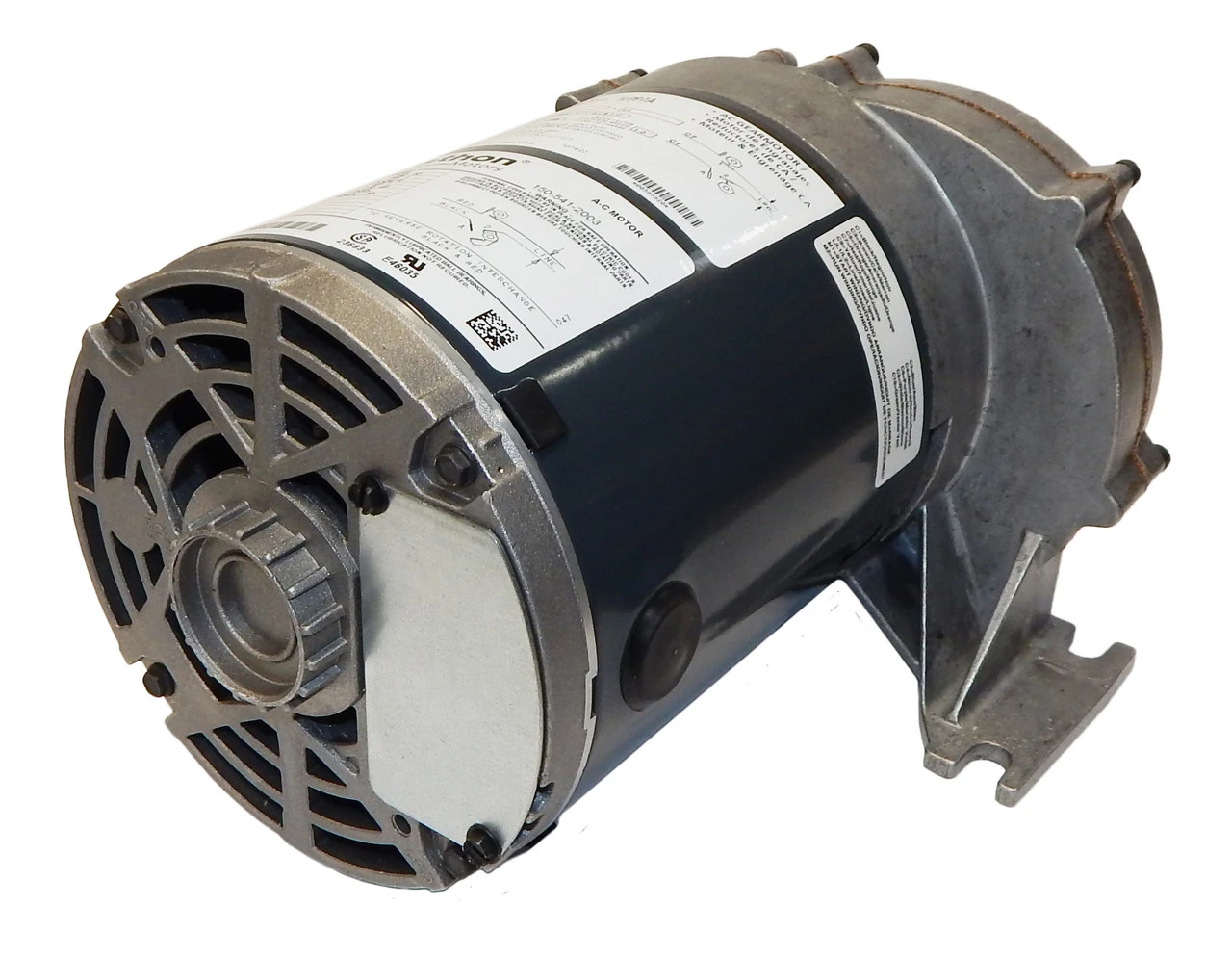

1LPP1 Dayton 1/4 Hp 90 RPM 115V Dayton AC Parallel Shaft Gear Motor Dayton Model (6K993)

• 1/4 hp, 90 RPM, 4.1 amps, 115 volts, 60HZ.
• Load Torque 150 inch pounds
• Gear Ratio 19:1
• Over Hung Pounds = 150
• Rotation = Reversible

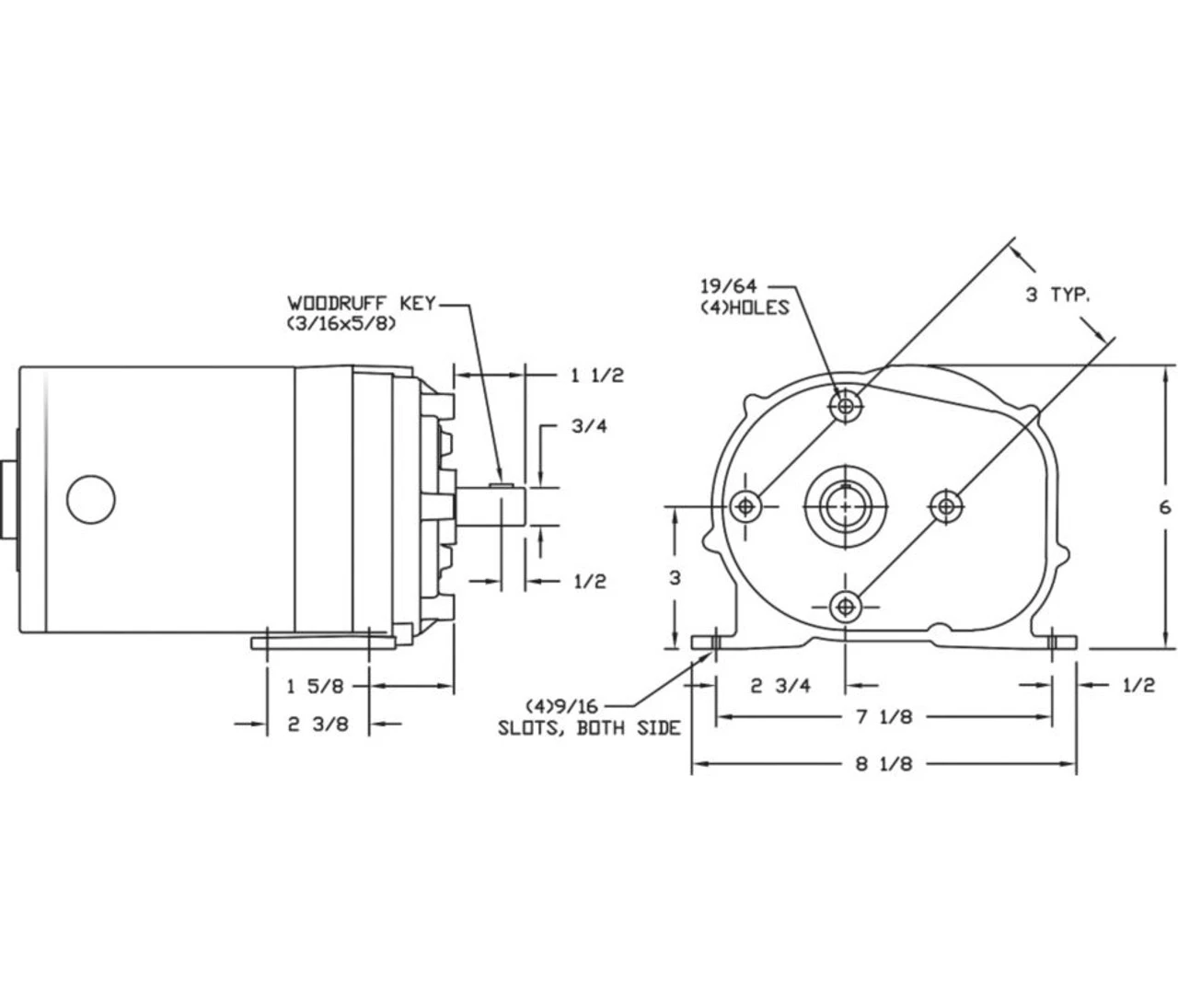

• Keyed Shaft Shaft = 3/4″ x 1-1/2″
• Motor has 4 non threaded bolt holes on face of motor that can be tapped out for 3/8″ bolts (stainless not recommended)
• One Year Manufacture Warranty



Direct Replacement for the following models



Dayton 6K993, 1LPP1A
Von Wiese V00323AH20
Bison 014Q307-0019
