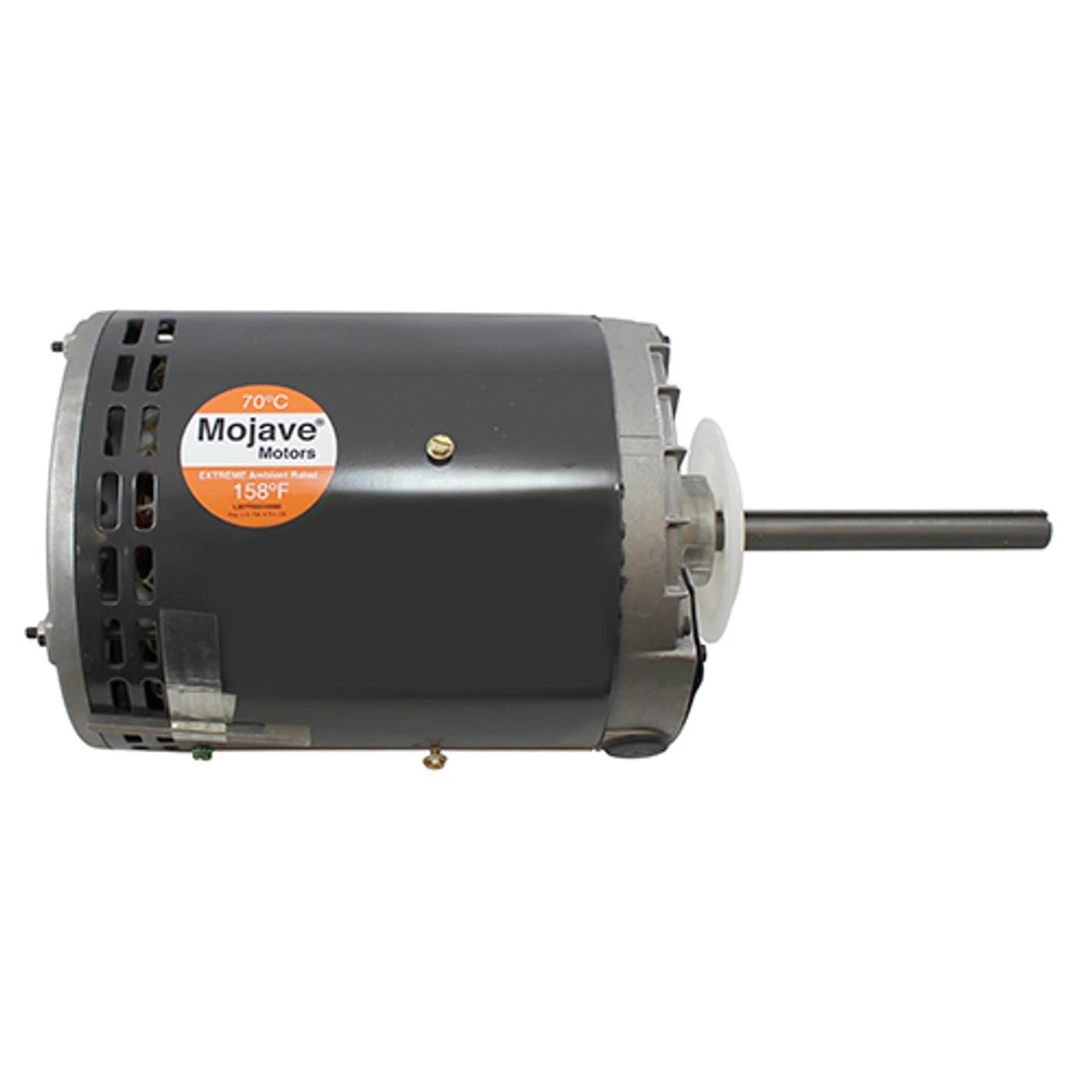

1832H Nidec 1 1/2 Hp 850 RPM 208-230/460V 56Z Frame (No Base) 1-Speed OAO 3-Phase Commercial Motor

• 1 1/2 hp 850 RPM, 6.8-6.6/3.3 amps 208-230/460V Volts 60 Hz 3-Phase Motor
• NEMA 56Z Frame, Rolled Steel, Flat Shaft 5/8″ Diameter x 4 7/8″ long

• Service Factor = 1.0, Overload Protection: Auto
• Band Mount, Ball Bearings, Class B Insulation, Rev
• 1 Year Manufacture Warranty

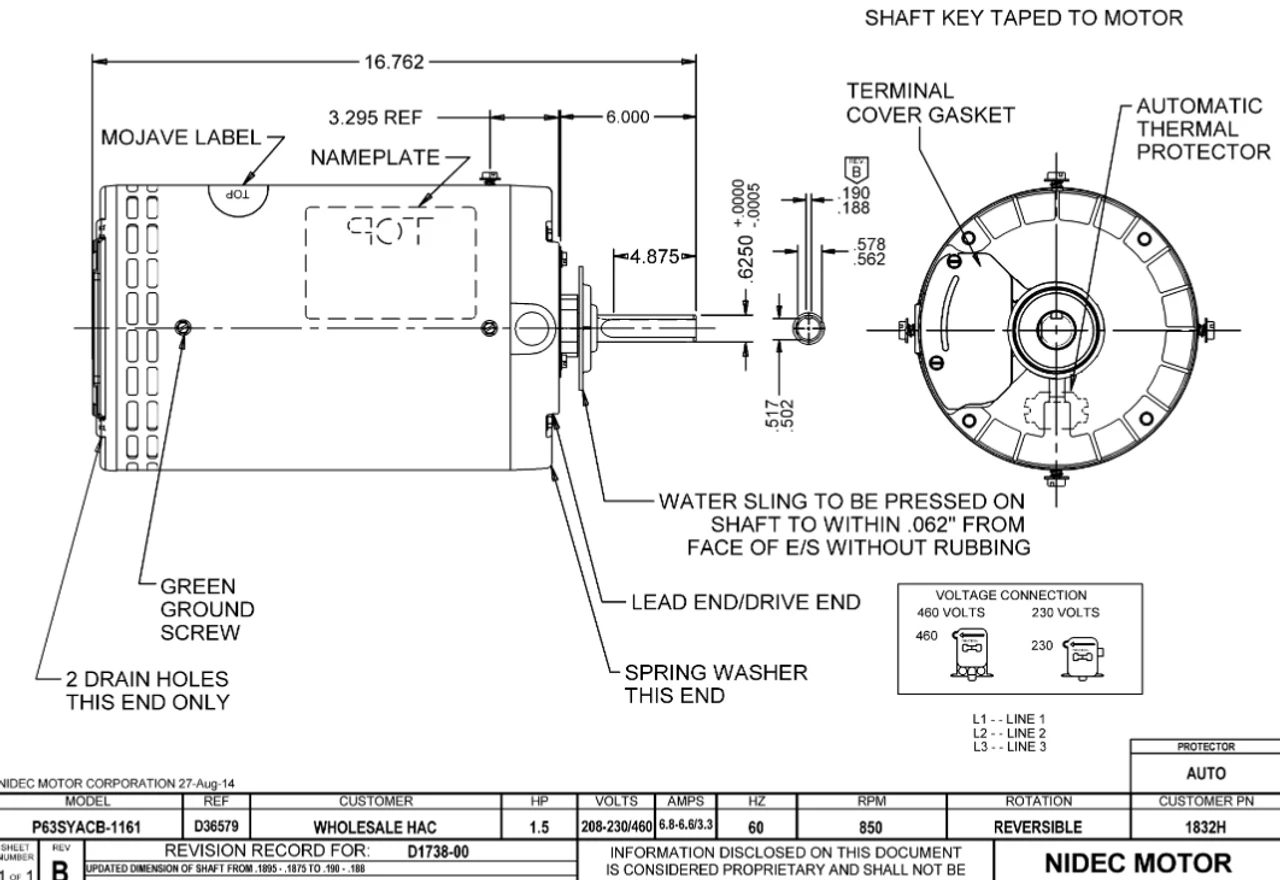

Commercial Condenser Fan Motor for higher than normal temperature environments. Wiring diagram on motor name plate. OAO = Open Air-Over, P063ACB1161015B
