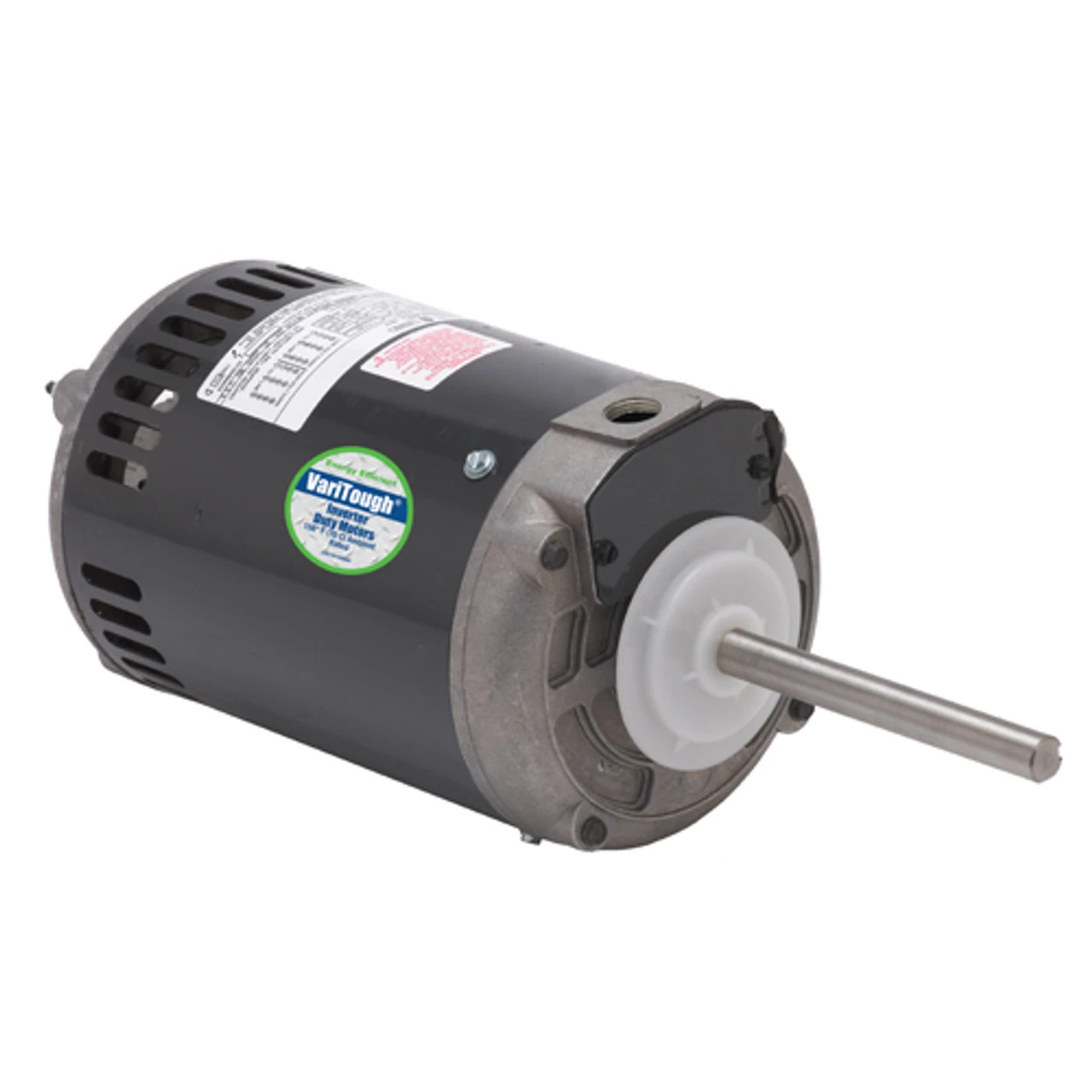

1830VG Nidec 1 Hp 825 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor

• 1 hp 825 RPM, 5.2-5.2/2.6 amps 208-230/460V Volts 60 Hz 3-Phase Motor
• NEMA 56YZ Frame, Rolled Steel, Flat Shaft 5/8″ Diameter x 4 7/8″ long

• Service Factor = 1.0, Overload Protection: Thermostat
• Band Mount, Ball Bearings, Class F Insulation, Rev
• 1 Year Manufacture Warranty

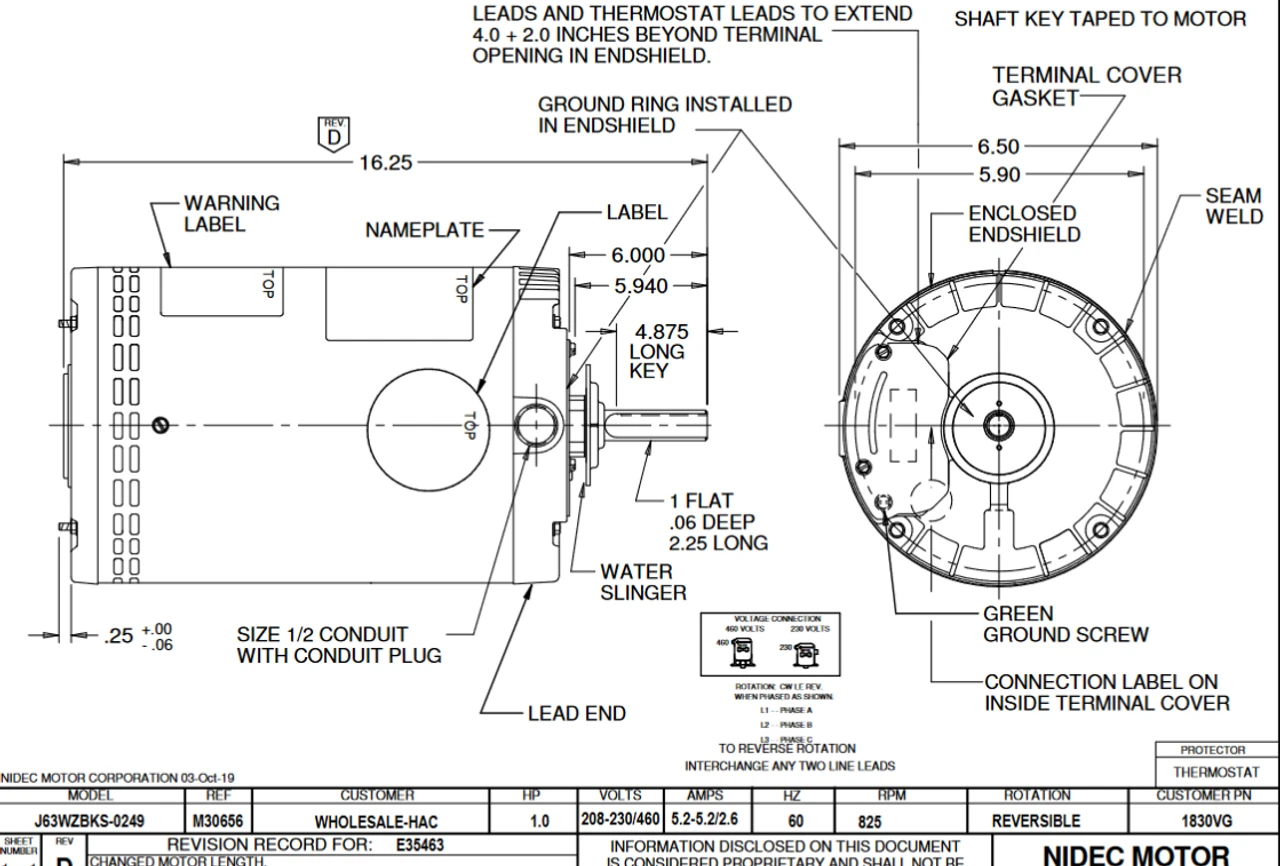

Commercial Condenser Fan Motor for applications using a variable frequency drive. Wiring diagram on motor name plate. OAO = Open Air-Over, J063BKS0249015B
