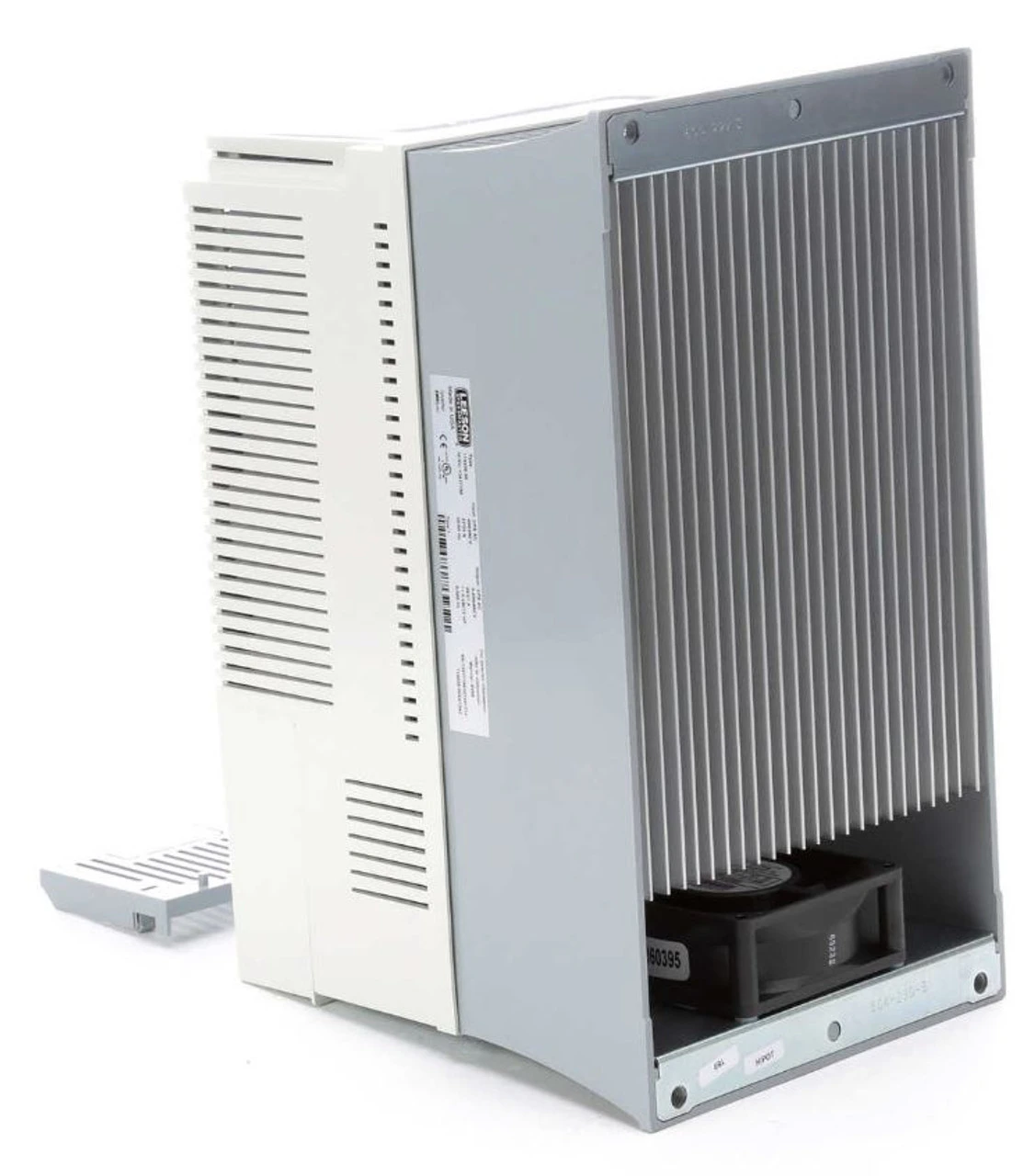

174630.00 Leeson SM2 AC Adjustable Speed VFD Drive 25HP 400-480V

Original price was: $329.00.Current price is: $95.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

SM2 Series Flux Vector Series AC Inverter

20hp, 400-480V; Max amps 35.0
Three Phase Input/Output Only
Designed to be used with vector duty rated AC motors
Typical applications would include: food processing, machinery, material handling and HVAC systems
Enclosure: NEMA 1, IP31, -10 to 55C degrees, 2.5% derate per degree above 40C
NEMA 1 = General purpose enclosures for indoor use. Protects against light dust, is not dust-tight. Primarily prevents accidental contact with the electrical components.

Modes of Operation:
Open loop flux vector (speed or torque)
V/Hz (constant or variable)
Enhanced V/Hz with auto-tuning

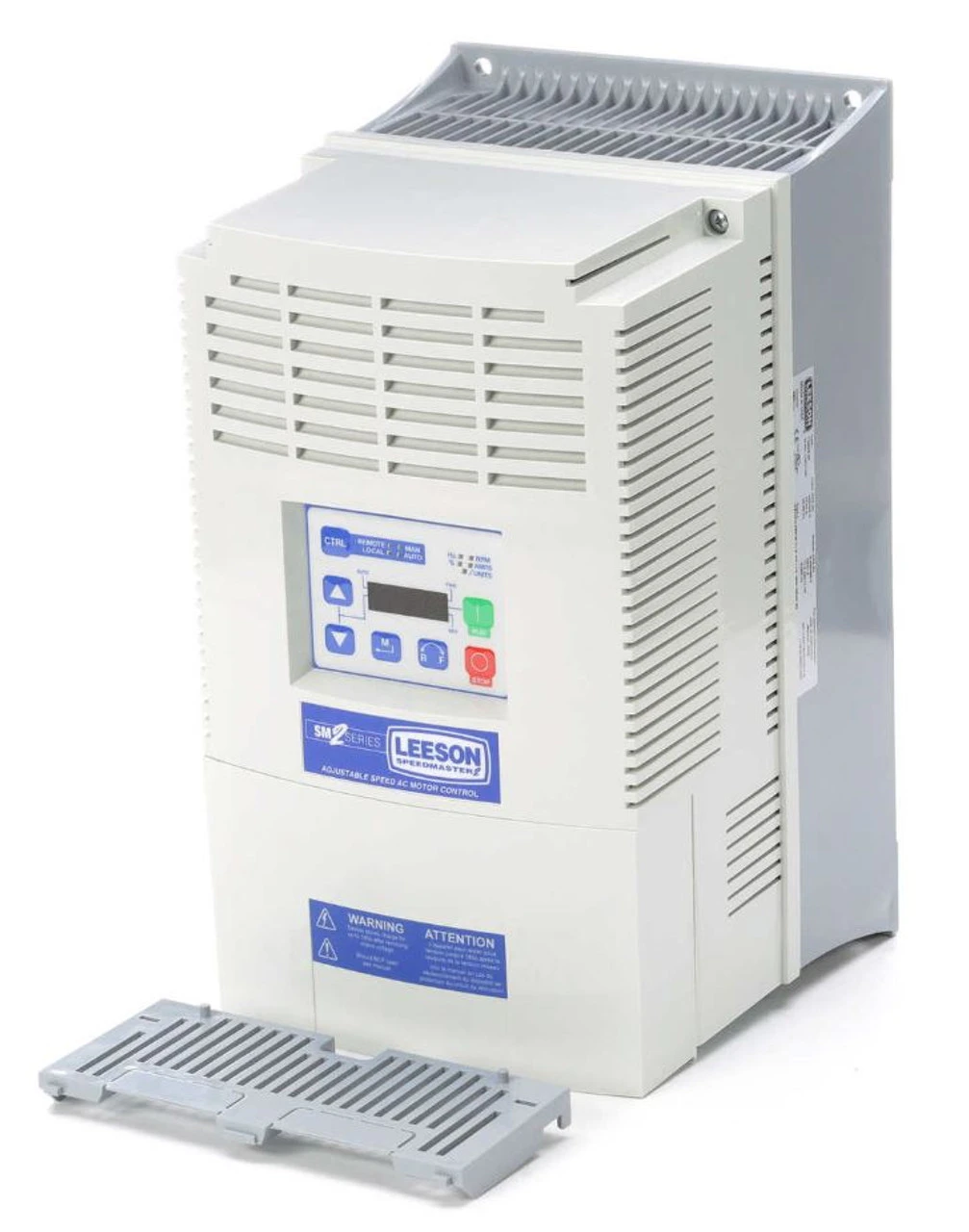

Easy to Use Keypad & Display
6 Button Interface: Start, Stop, Forward/Reverse, Scroll Up/Down, Enter/Mode

Vivid Illumination
4 digit LED Display
Easy to read from a distance
Movable decimal point

Weight: 20-lbs
Dimensions: 12.33 x 6.88 x 8.08 (inches)

Replaces Leeson 174563.00 VFD Drive

Specifications are subject to change without notice
