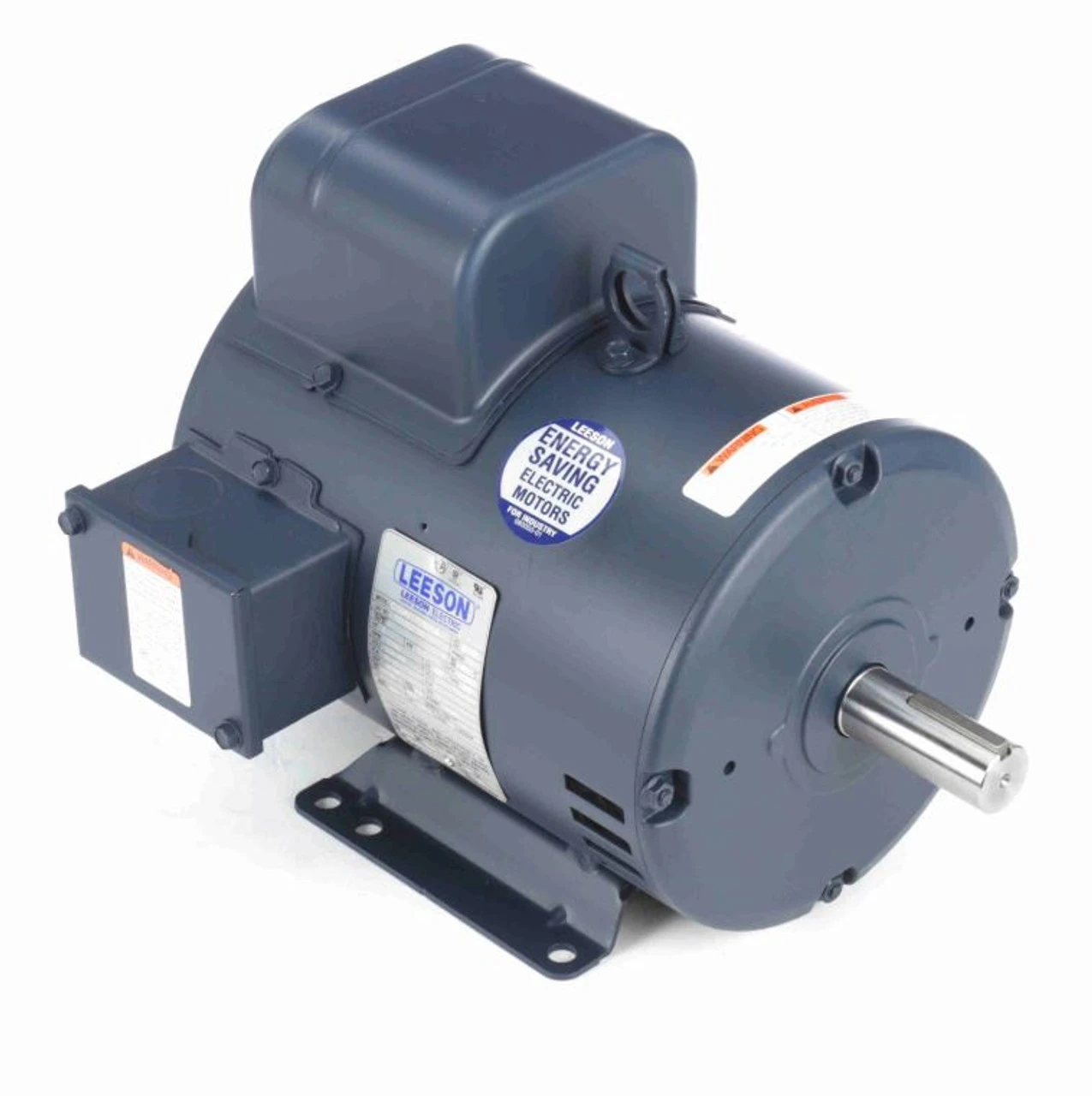

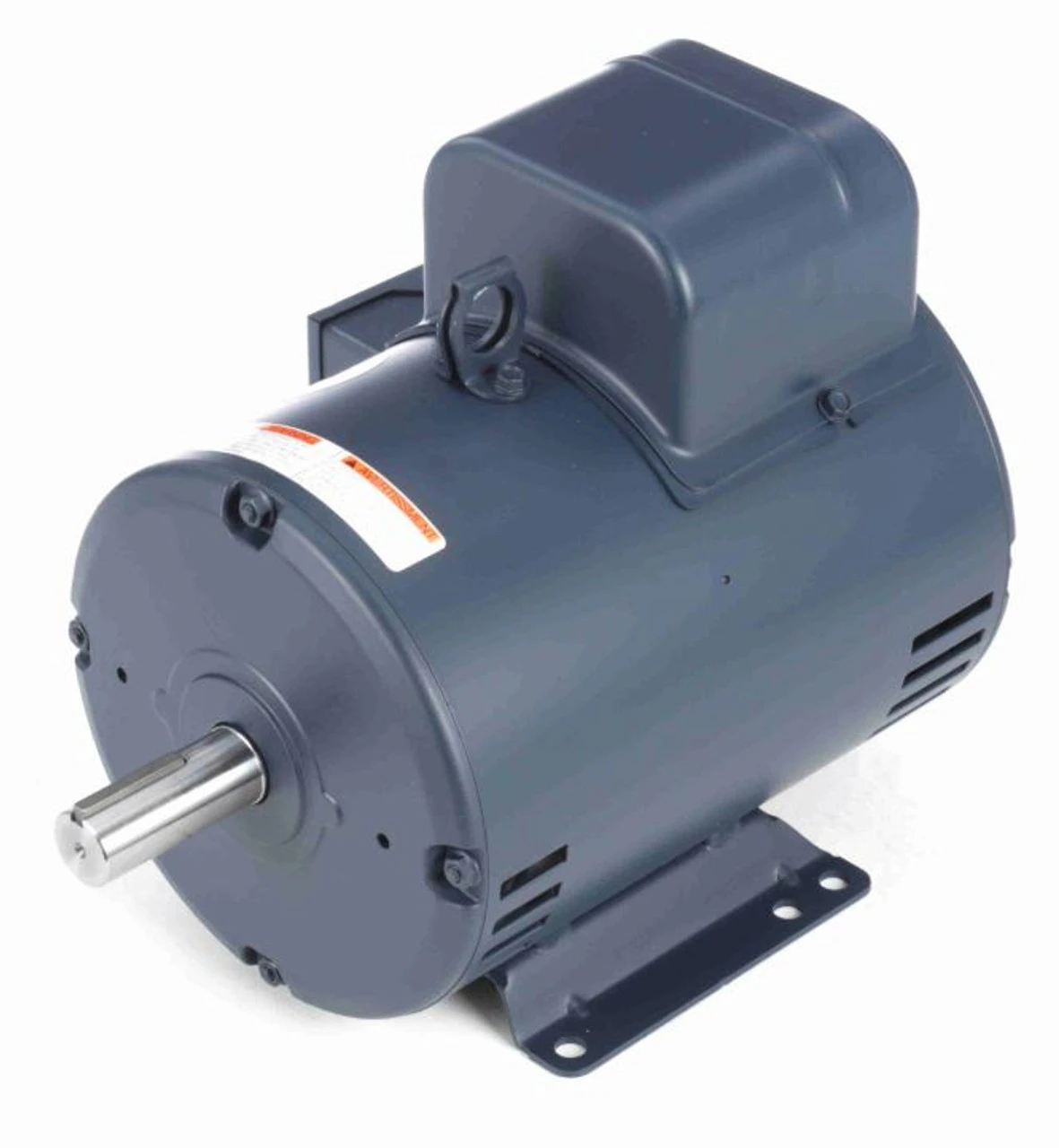

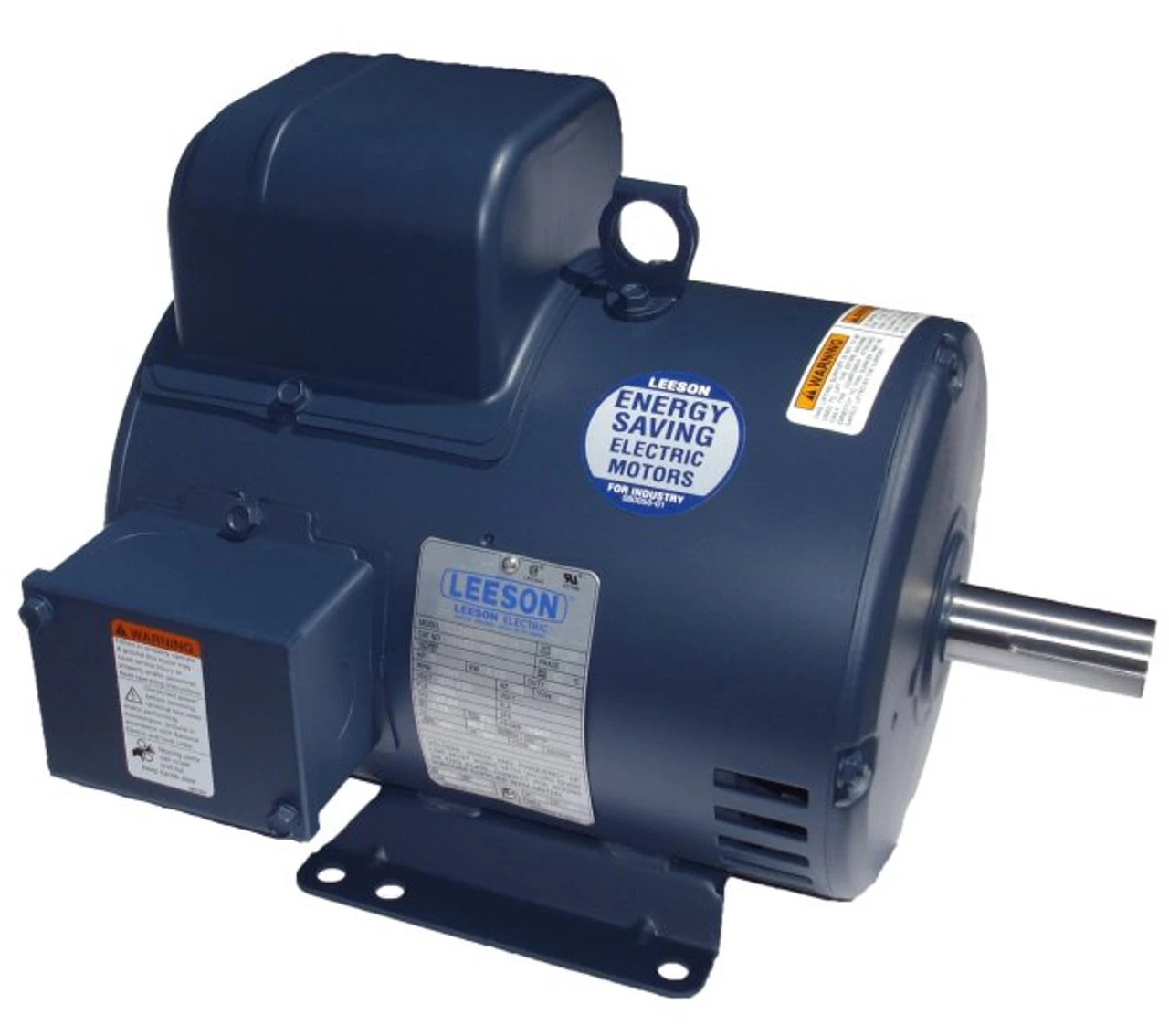

131537.00 Leeson | 5 Hp 1800 RPM 184T Frame ODP 230V

Standard 5hp General Purpose Electric Motor

• 5 hp 1800 RPM 21.0 amps, 60hz
• 208-230V – Single Phase
• Open Drip Proof – Ball Bearings – Service Factor 1.15
• Electrically Reversible
• No Overload Protection
• NEMA 184T Frame – Shaft: 1 1/8″ x 2 3/4″
• Capacitor Start/Capacitor Run
• 1 Year manufacture warranty

Applications: Air Compressors, sprayers and many other applications.

If you need to replace a 3 Phase 5hp electric motor to a single phase motor, this will work Fine.

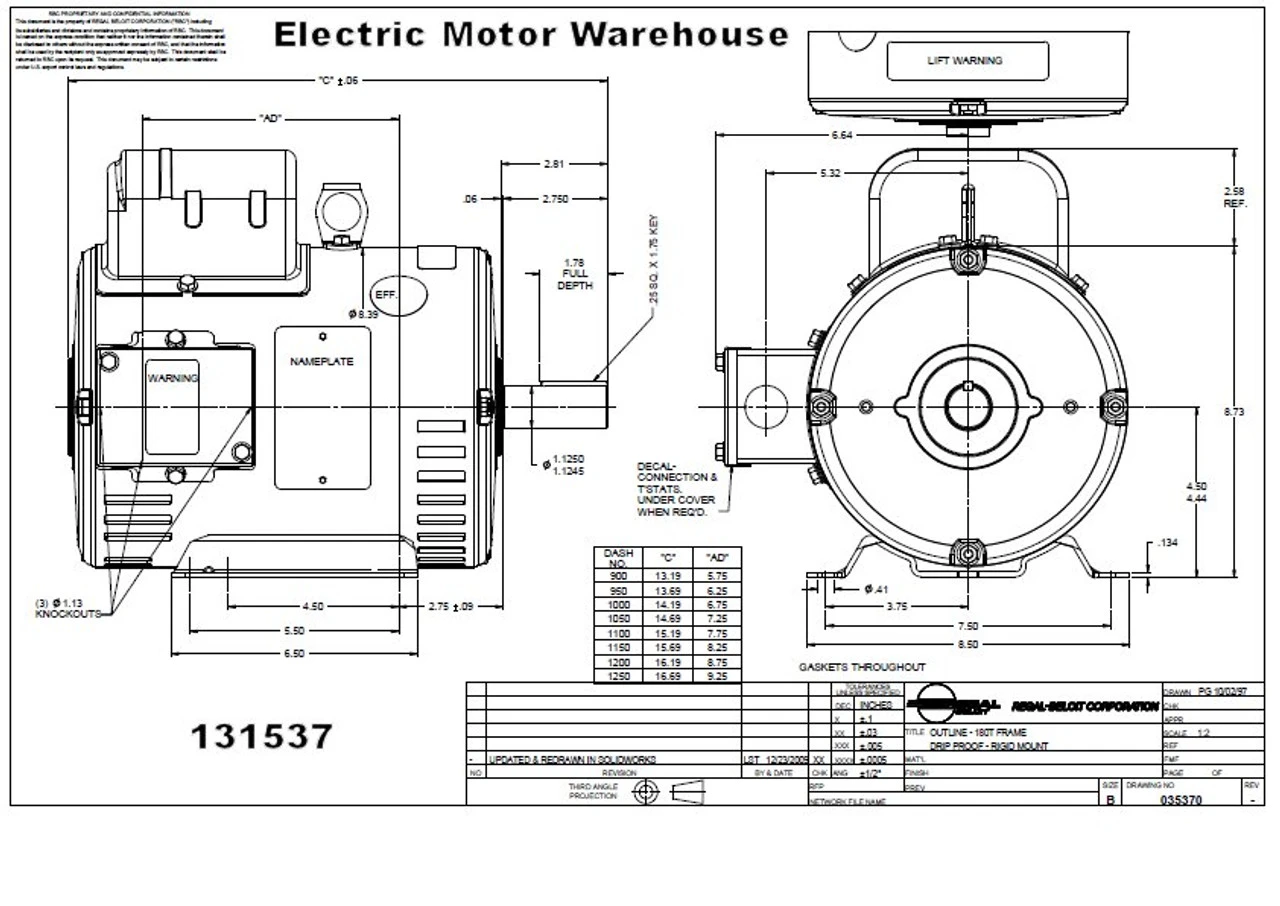

Motor has standard 184T flat mounting base. Overall Length = 14.69″

C184K17DB31A, 131537.00
Nidec Equivalent D5C2K
Marathon equivalent I114A
