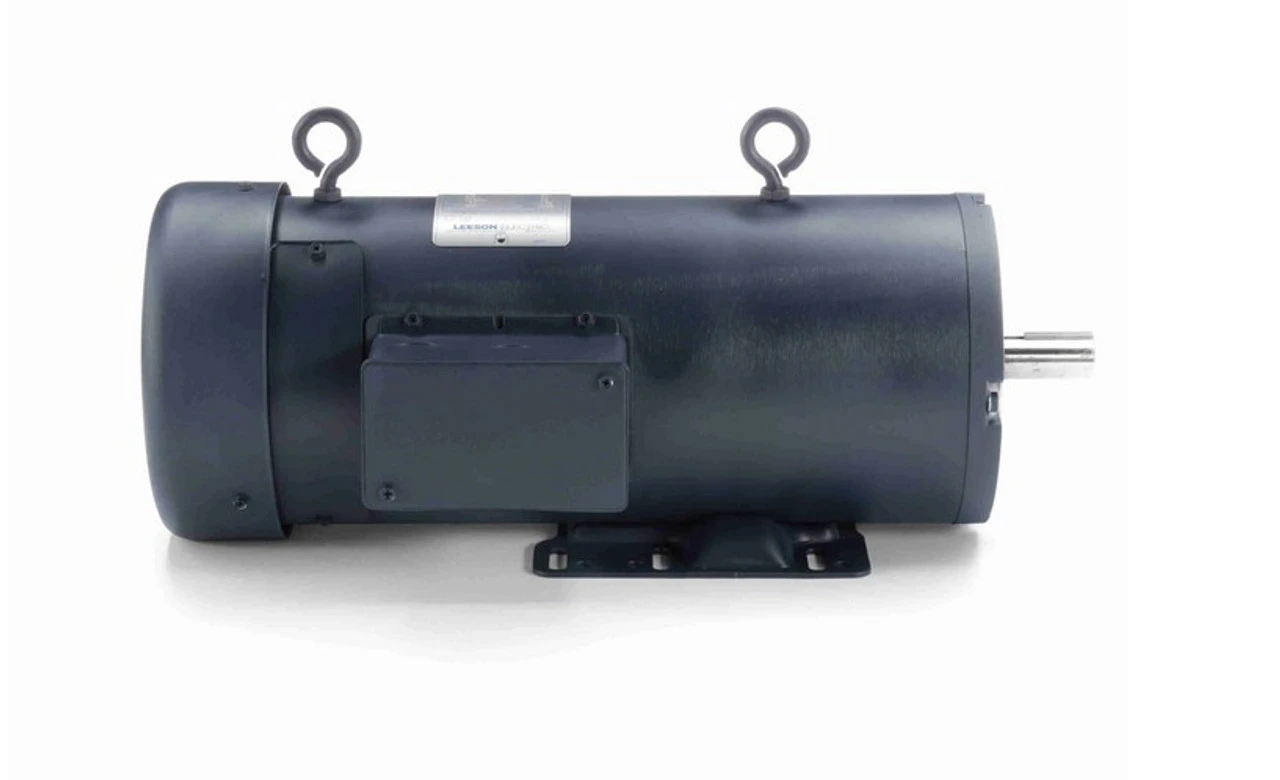

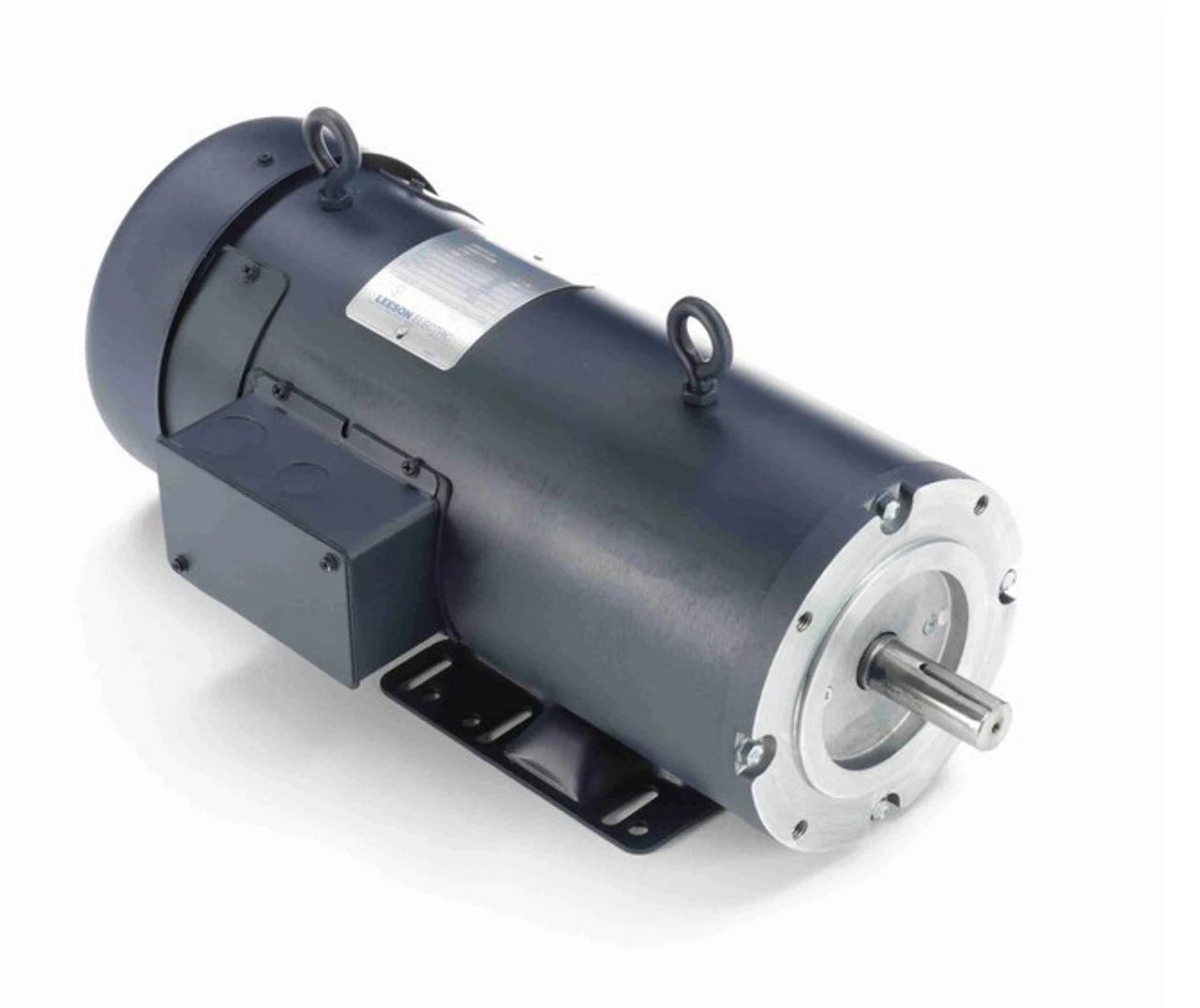

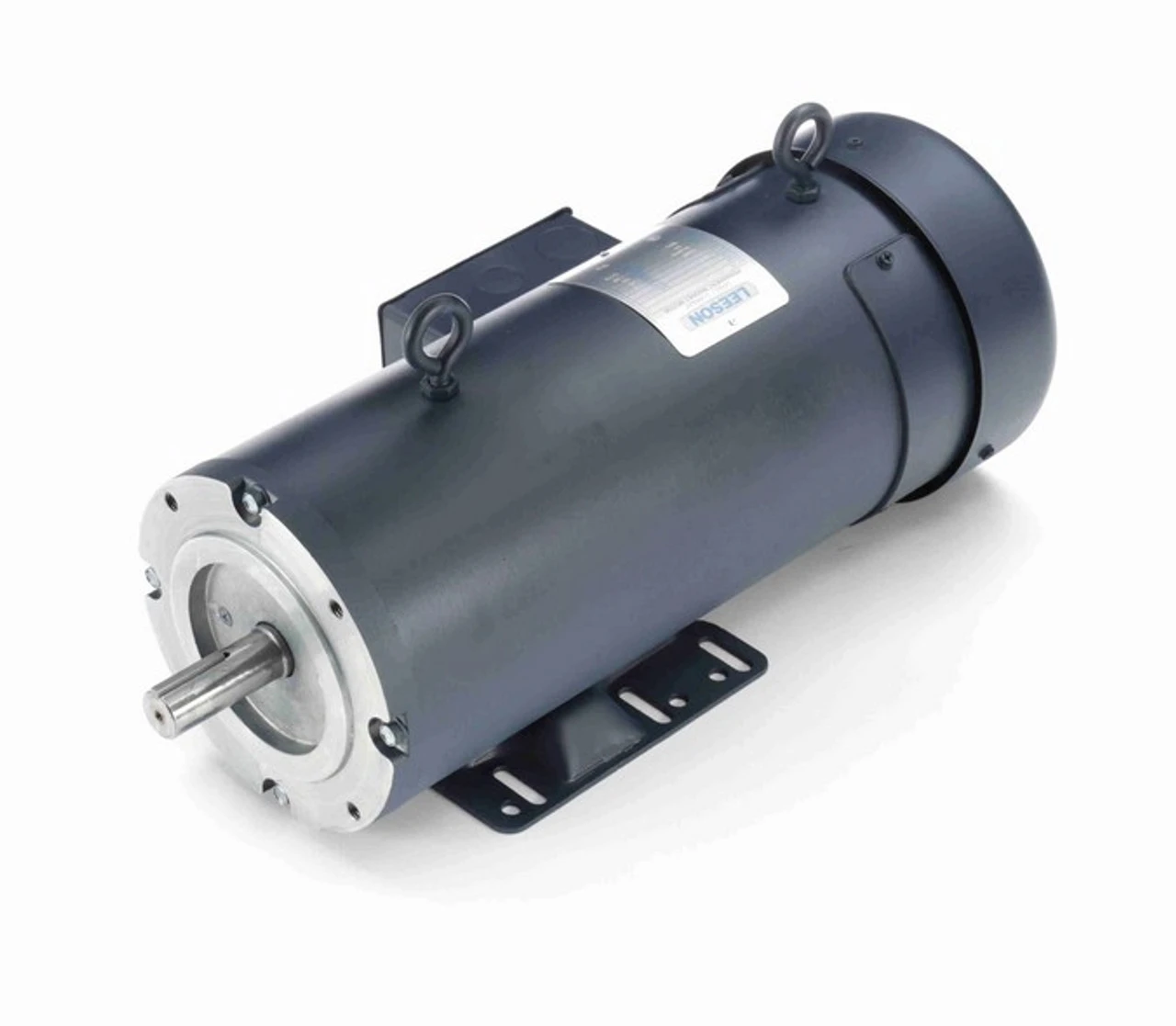

128000.00 Leeson 1 1/2 Hp 1800 RPM 180VDC 145TC Frame (Rigid Base) TEFC DC Controlled Motor

• 1 1/2 hp 1800 RPM, 7.5 amps 180 Volt DC Controlled Motor
• NEMA 145TC Frame, Shaft 7/8″ Diameter x 2 1/8
• Service Factor: 1.0 Overload Protection = None
• Rigid Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) and PWM (Pulse Width Modulation) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled.

Replaces Marathon Z615, 145TEFR5326
