121913.00 Leeson 2 Hp 1800 RPM 208-230/460V 145TC Frame (Rigid Base) TEFC 3-Phase Stainless-Steel Wash-Down Motor

• 2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60 Hz. 3-Phase Motor
• NEMA 145TC Frame Keyed Shaft 7/8″ Diameter x 2 1/4
• Service Factor: 1.25, Overload Protection = None
• No Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

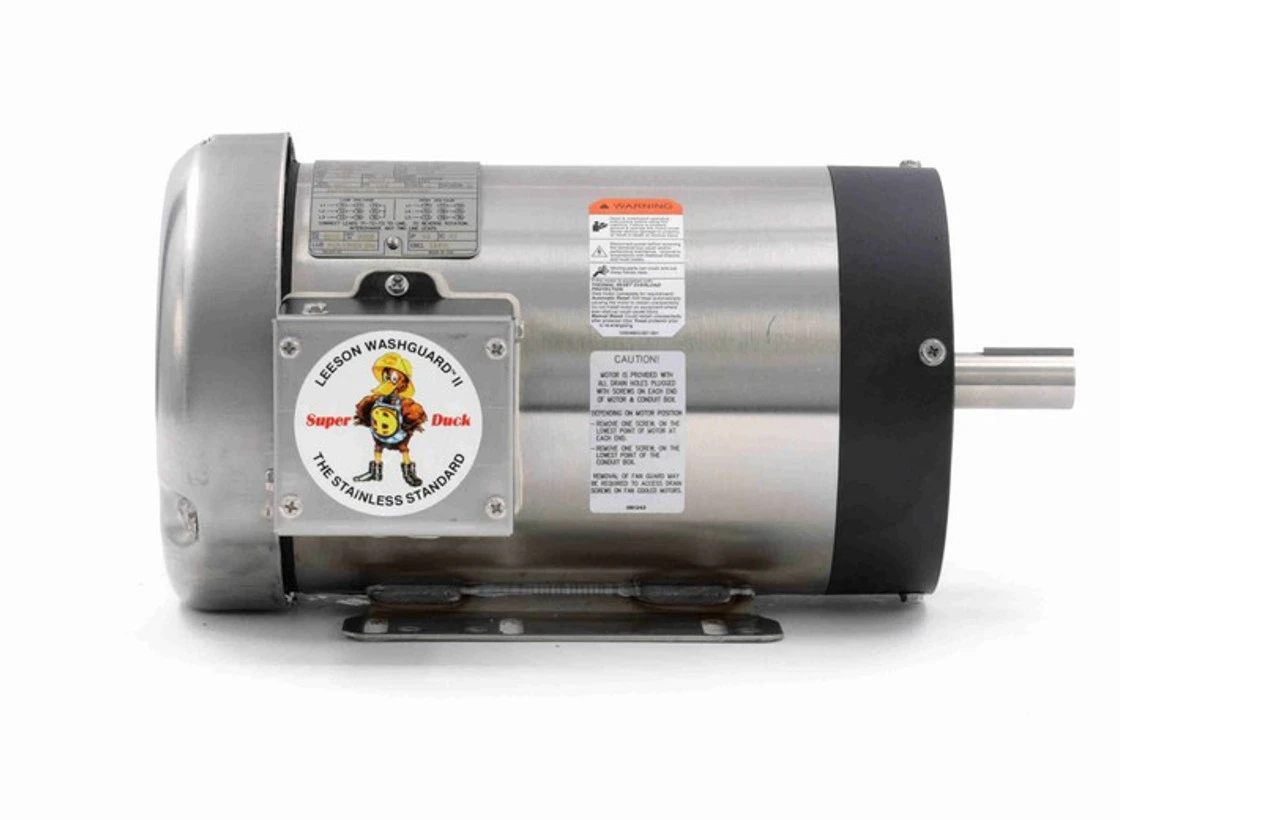

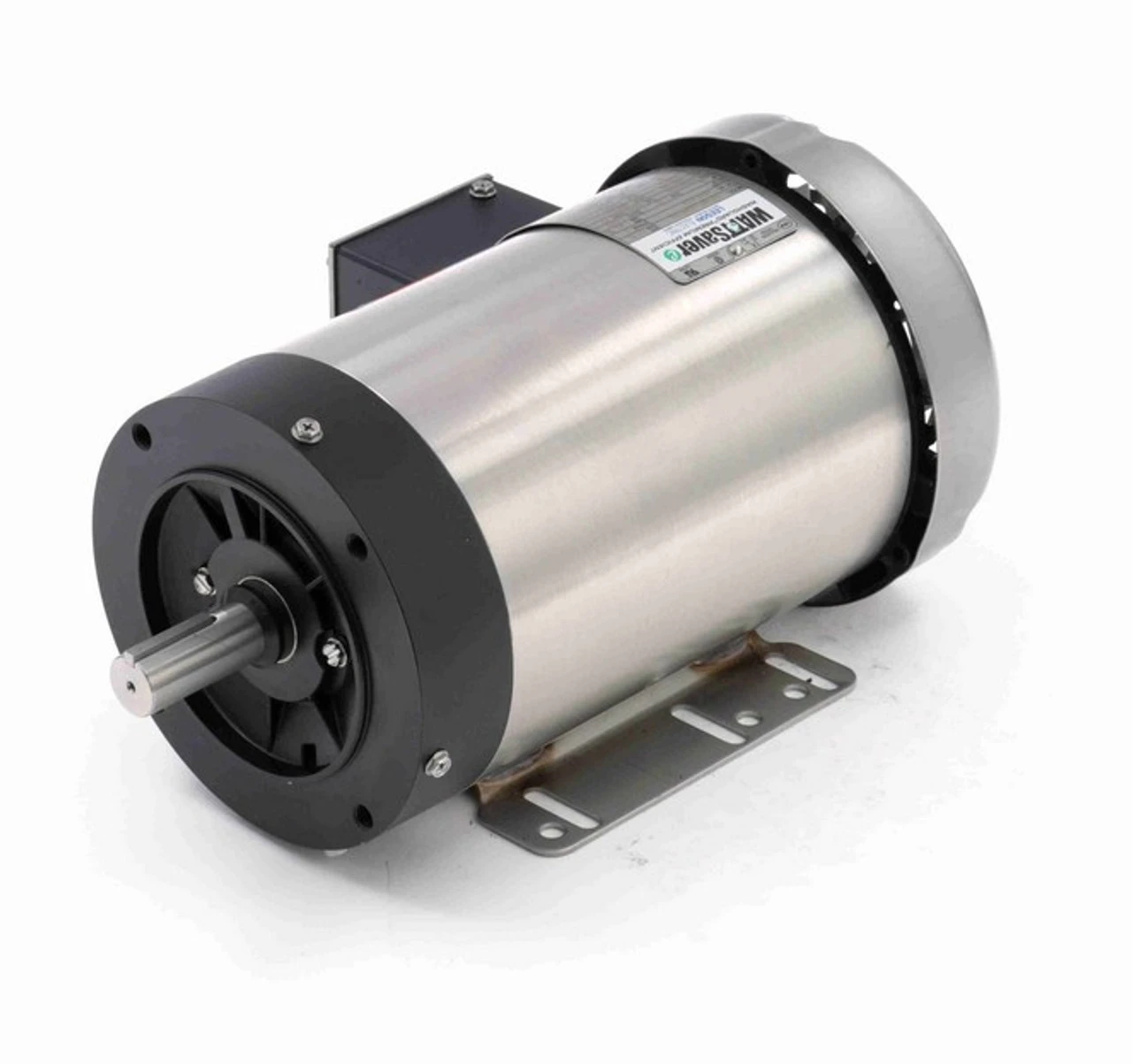

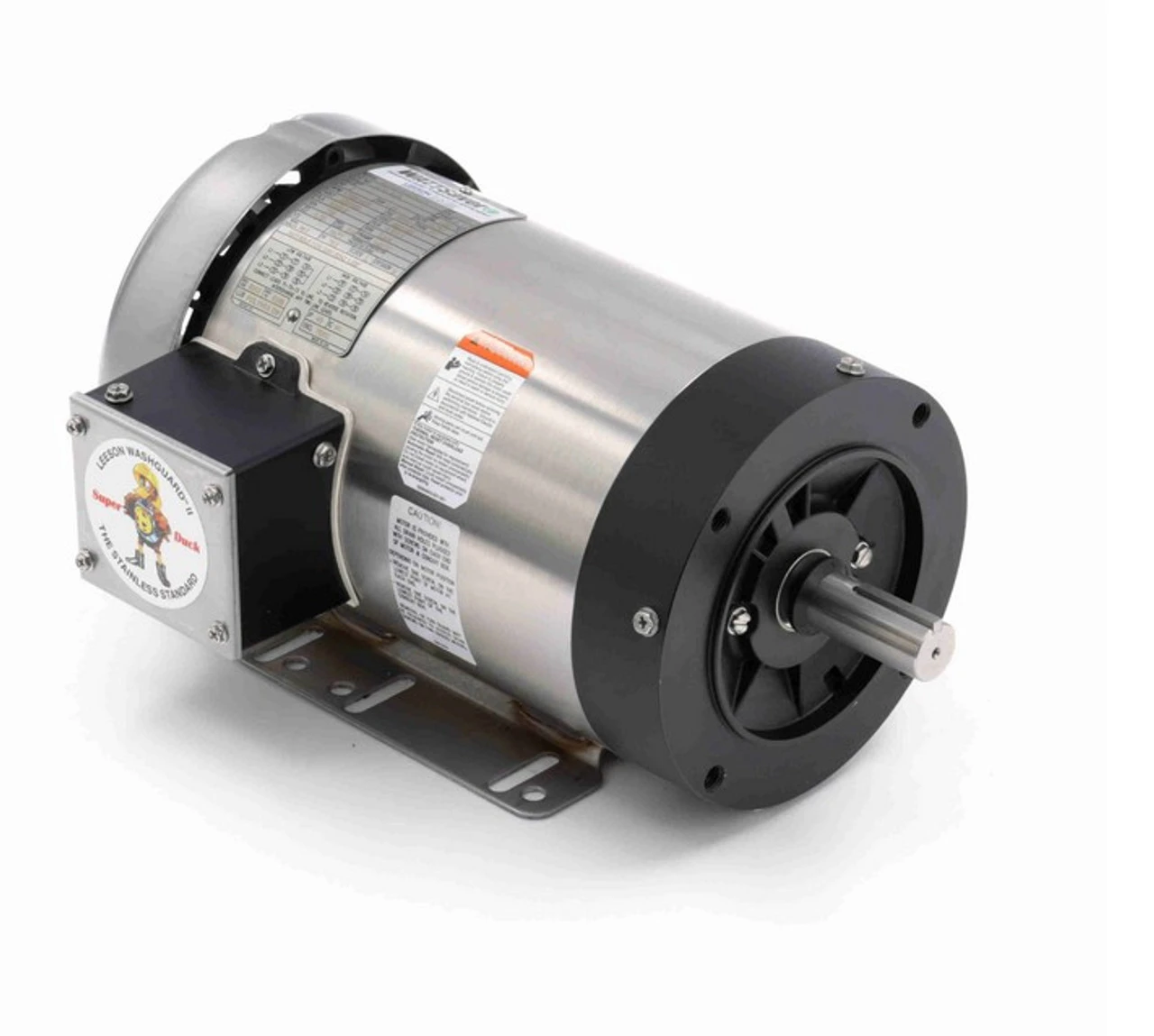

Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 121913.00
