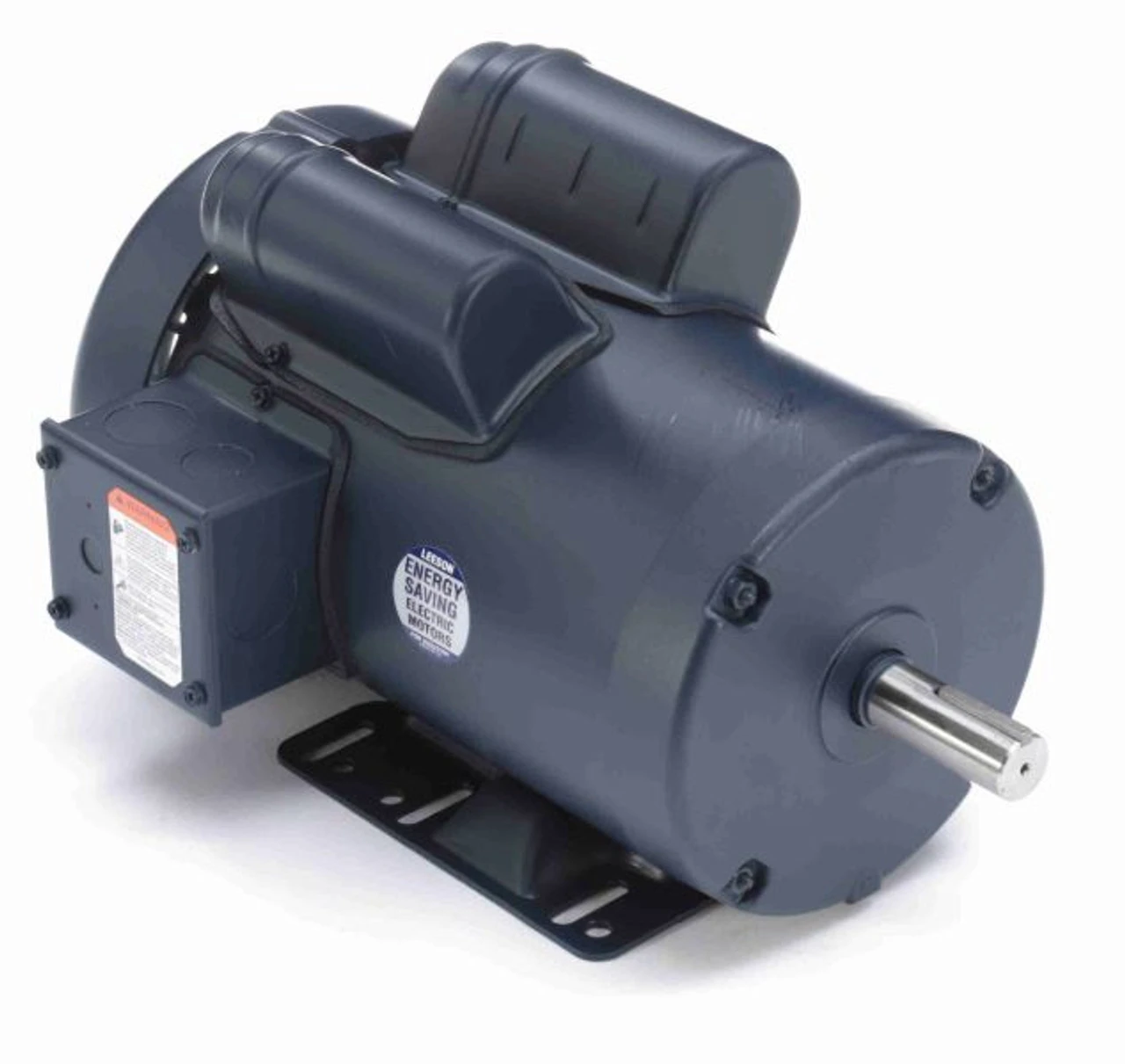

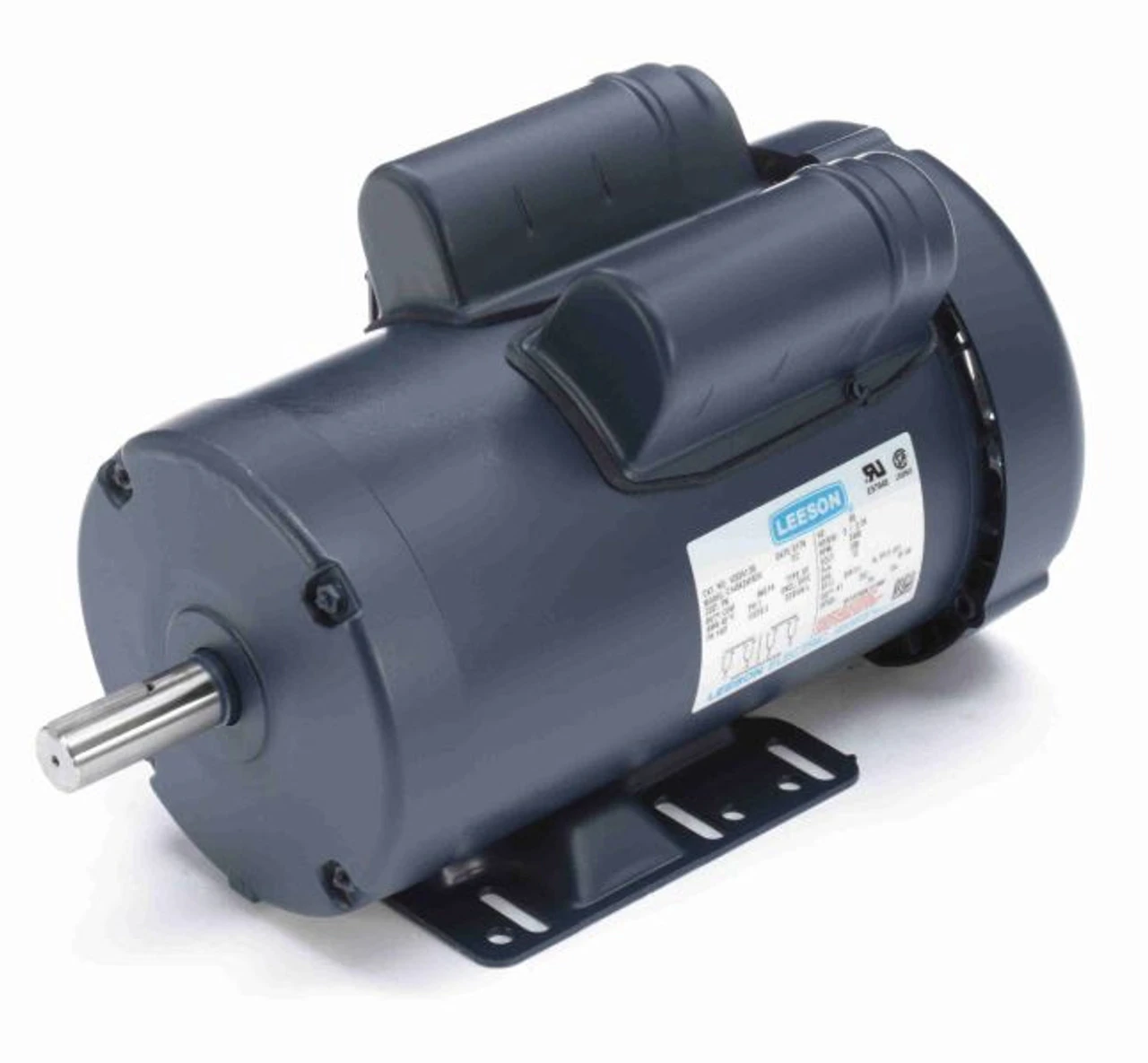

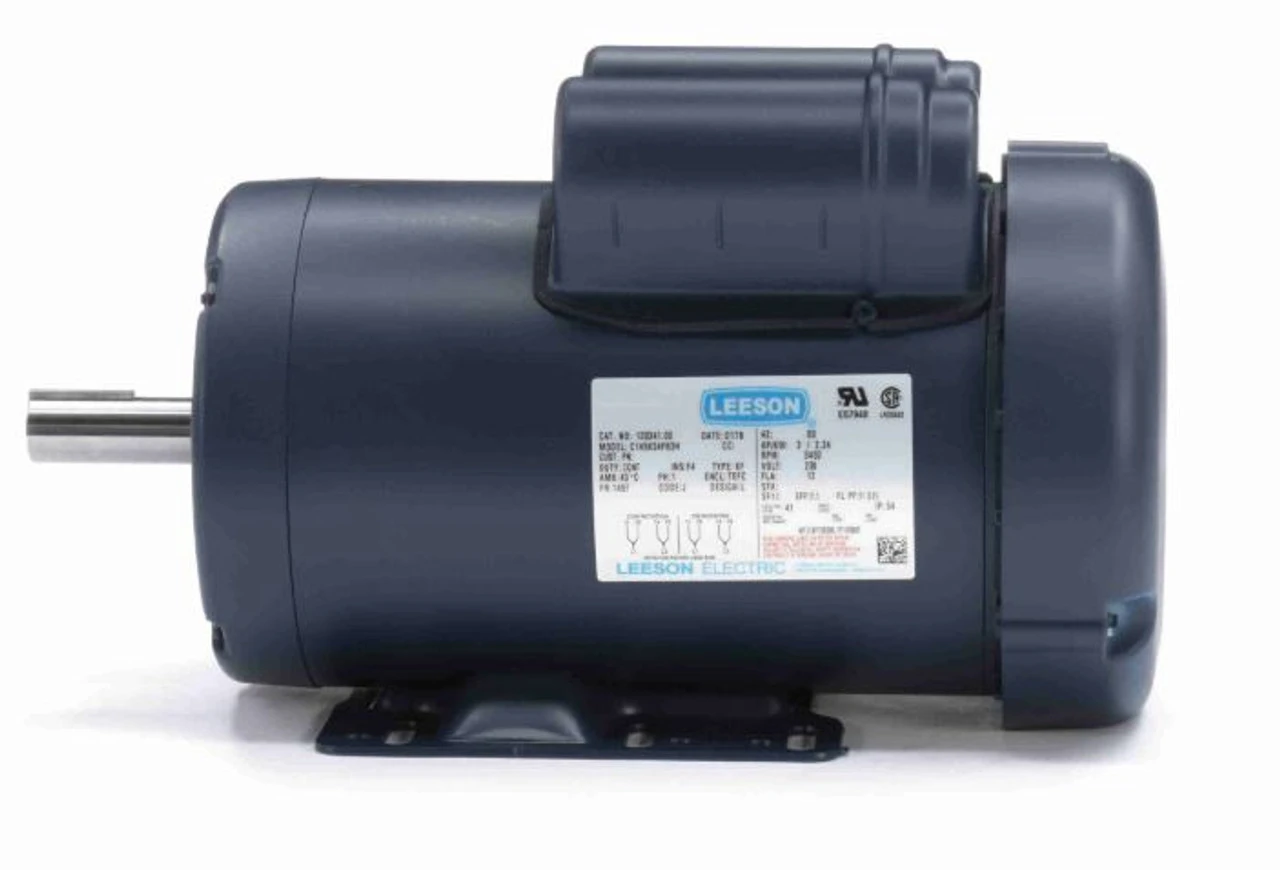

120341.00 Leeson | 3 Hp 3450 RPM 145T Frame TEFC 230 Volts

• 3 hp 3450 RPM, 13.0 amps 230 Volts 60hz. single Phase Motor
• NEMA 145T Frame Keyed Shaft 7/8″ Diameter x 2 1/4″
• Service Factor: 1.0 – overload protection = None
• Reversible – Rigid Base Mount – Ball Bearings – Class F Insulation
• TEFC = Totally Enclosed Fan cooled.
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. Excellent motor for woodworking equipment.

C145K34FB3H, 120341.00
Replaces Marathon I204, 145TBFR5301
