119499.00 Leeson Extreme Duck 2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TEFC (no Base) Motor

Original price was: $393.00.Current price is: $96.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

2 hp 1800 RPM, 6.0-5.8/2.9 amps 208-230/460 Volts 60 Hz. Three Phase
NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty,

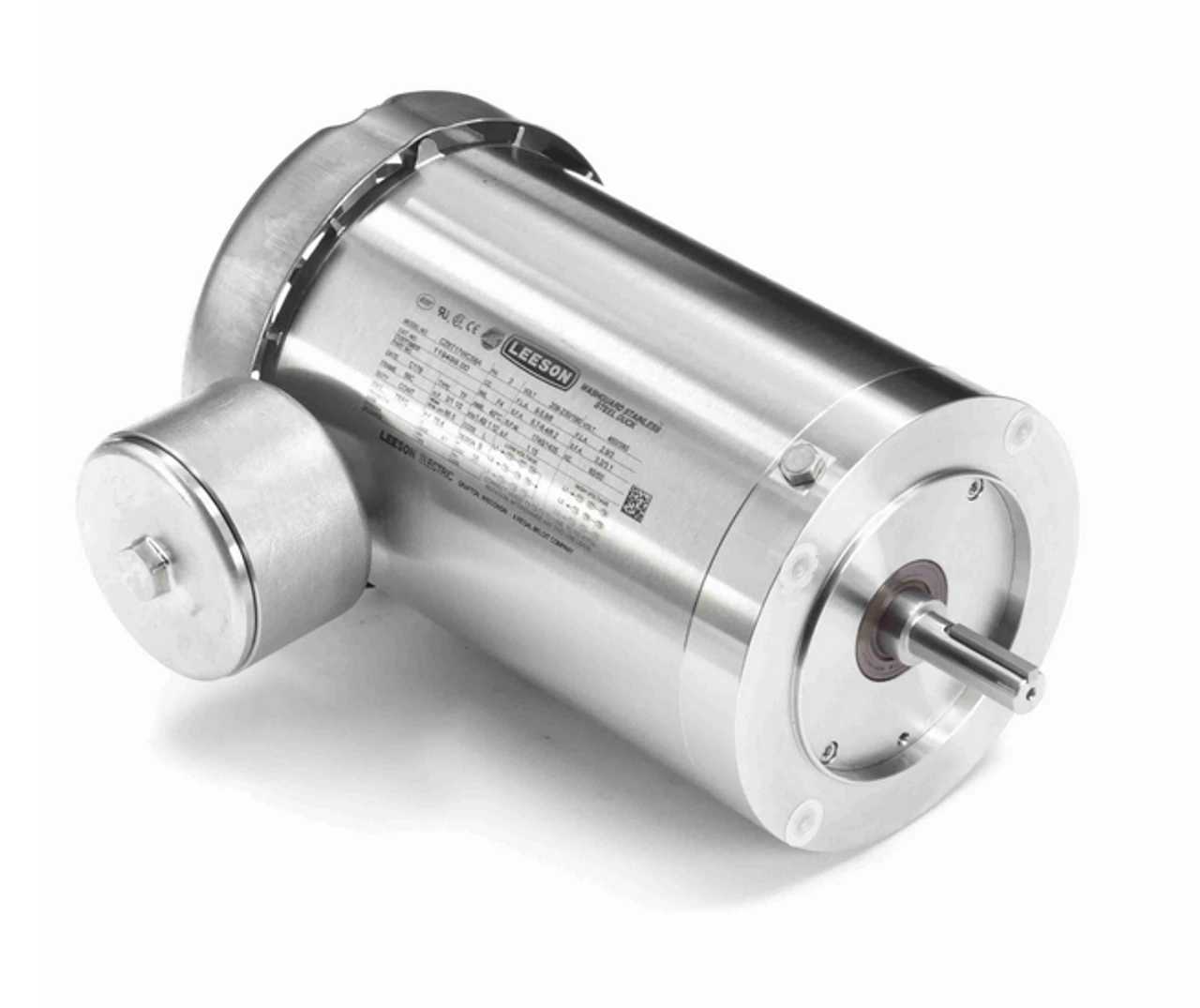

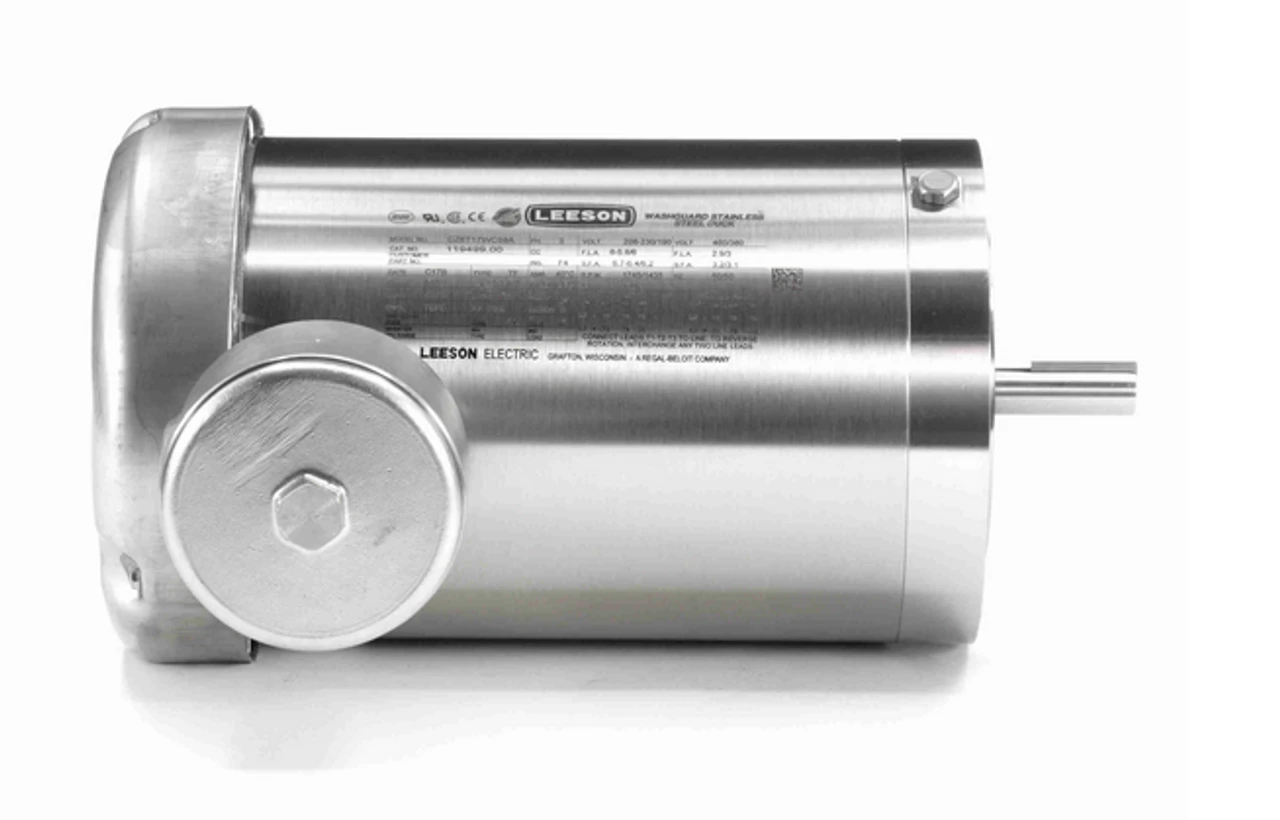

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119499.00
