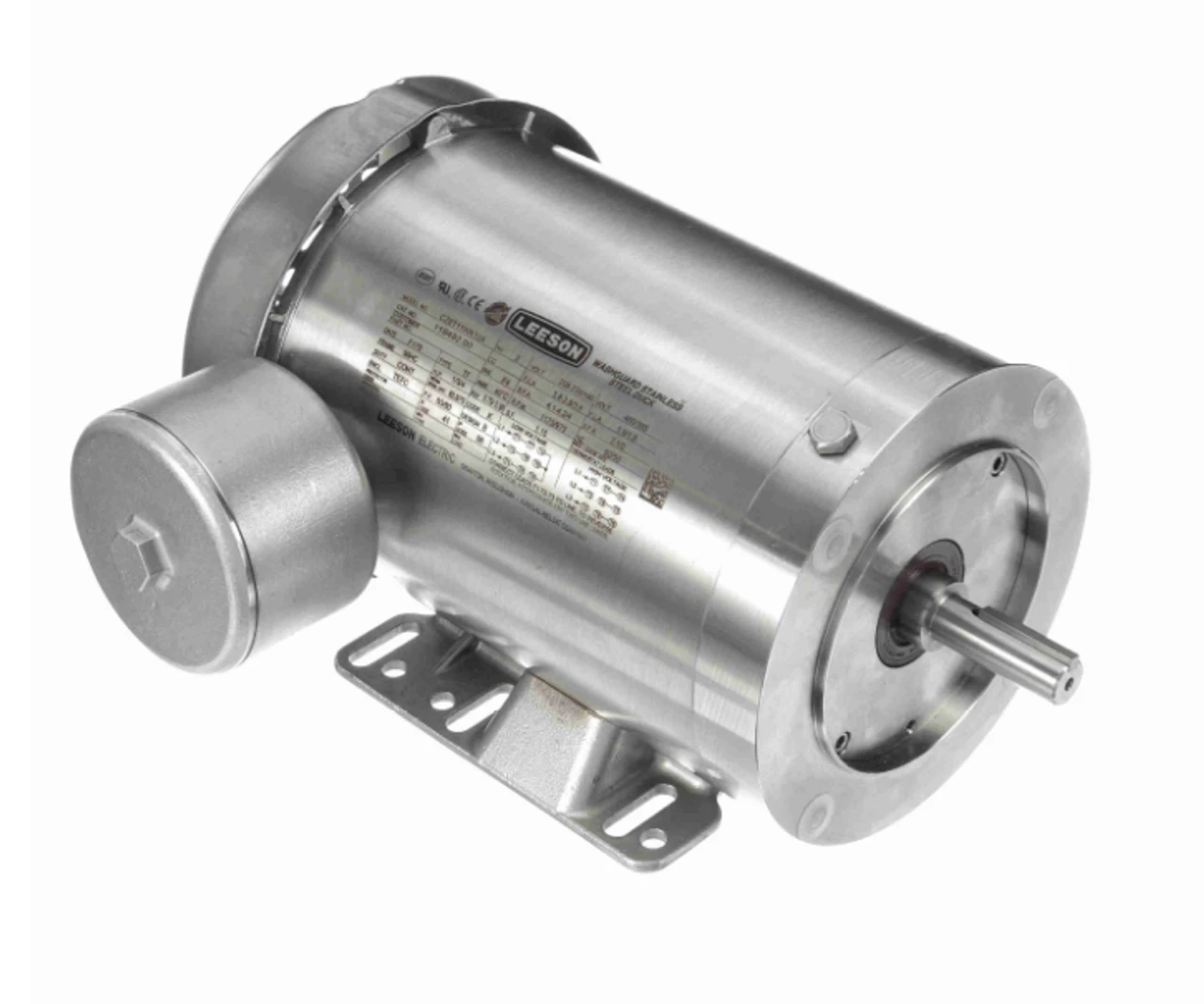

119492.00 Leeson Extreme Duck 1 Hp 1200 RPM 230/460V 3-Phase 56HC Frame TEFC (base) Motor

Original price was: $358.00.Current price is: $95.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1 hp 1200 RPM, 3.8-3.8/1.9 amps 208-230/460 Volts 60 Hz. Three Phase
NEMA 56HC frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

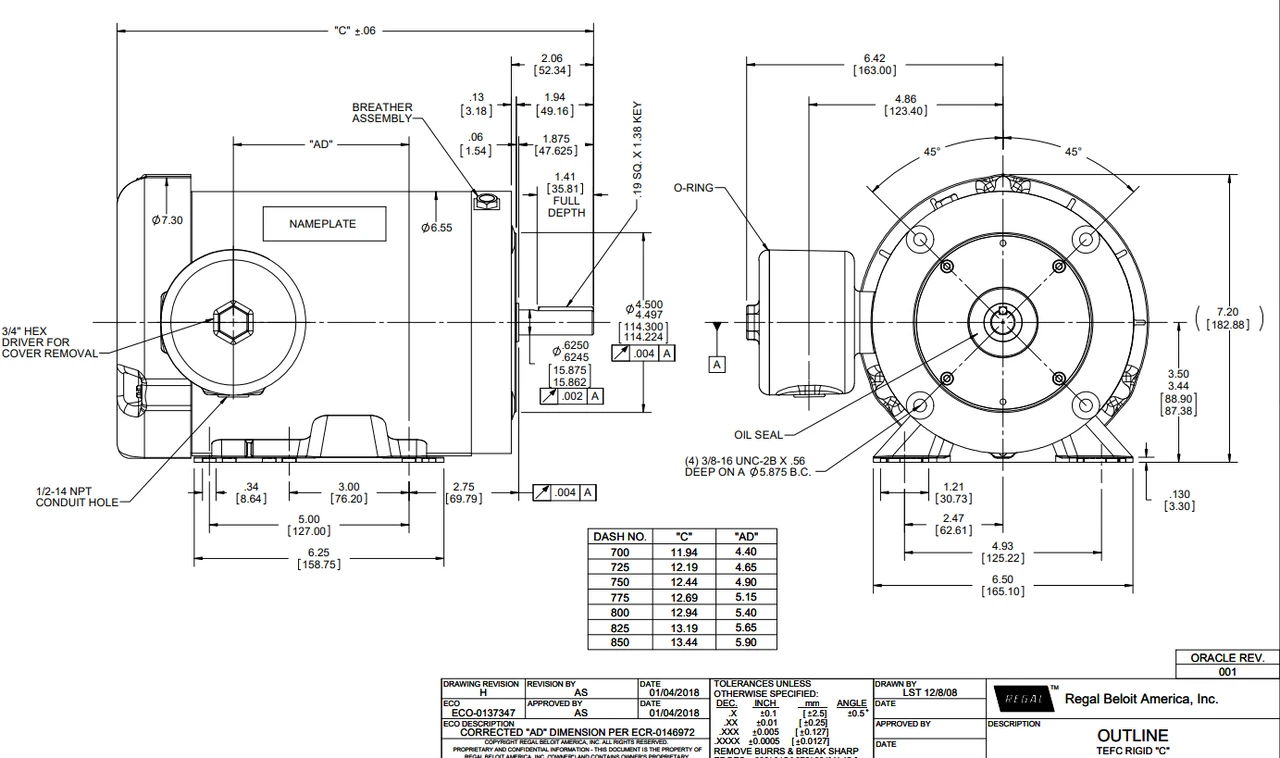

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119492.00
