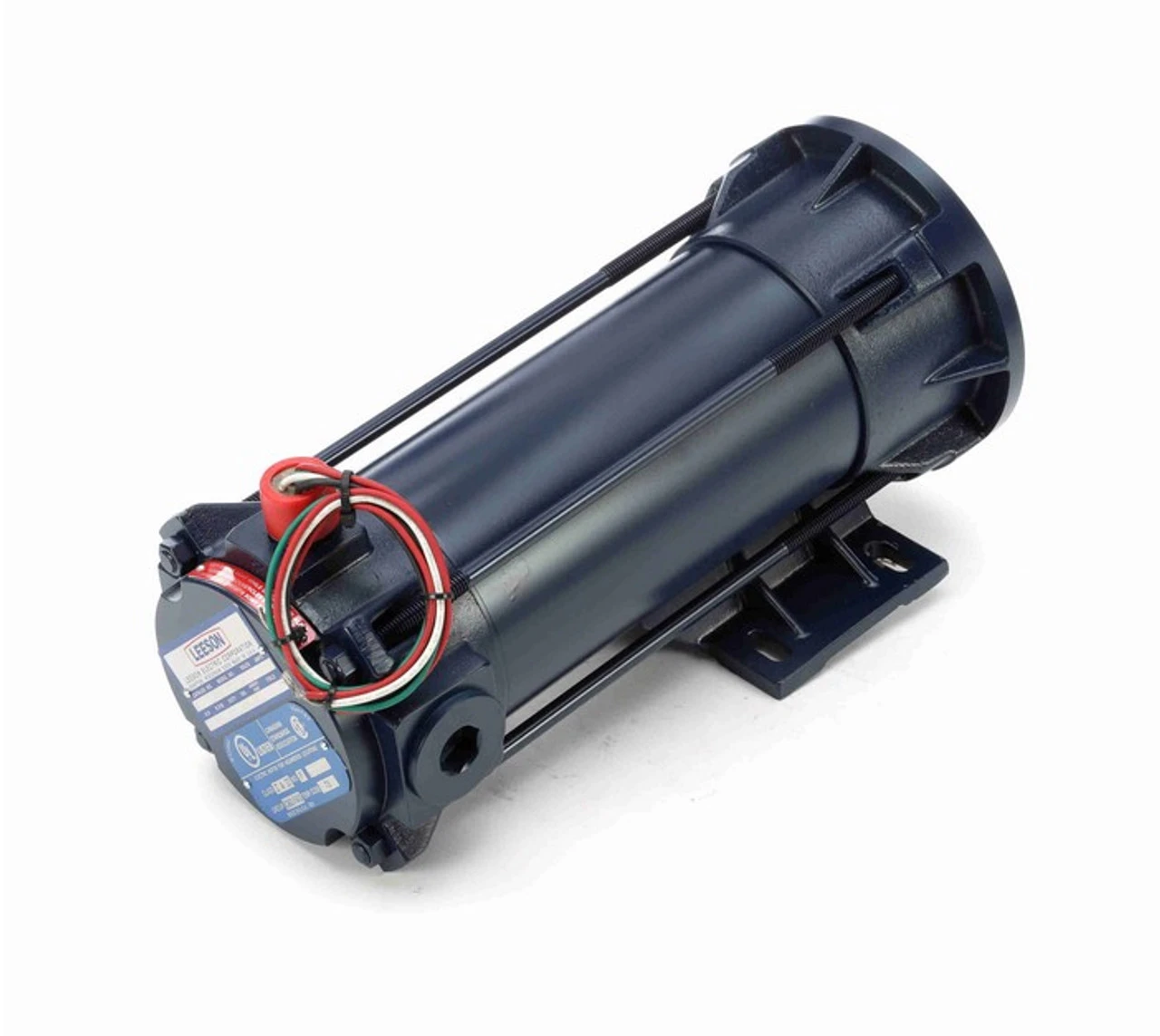

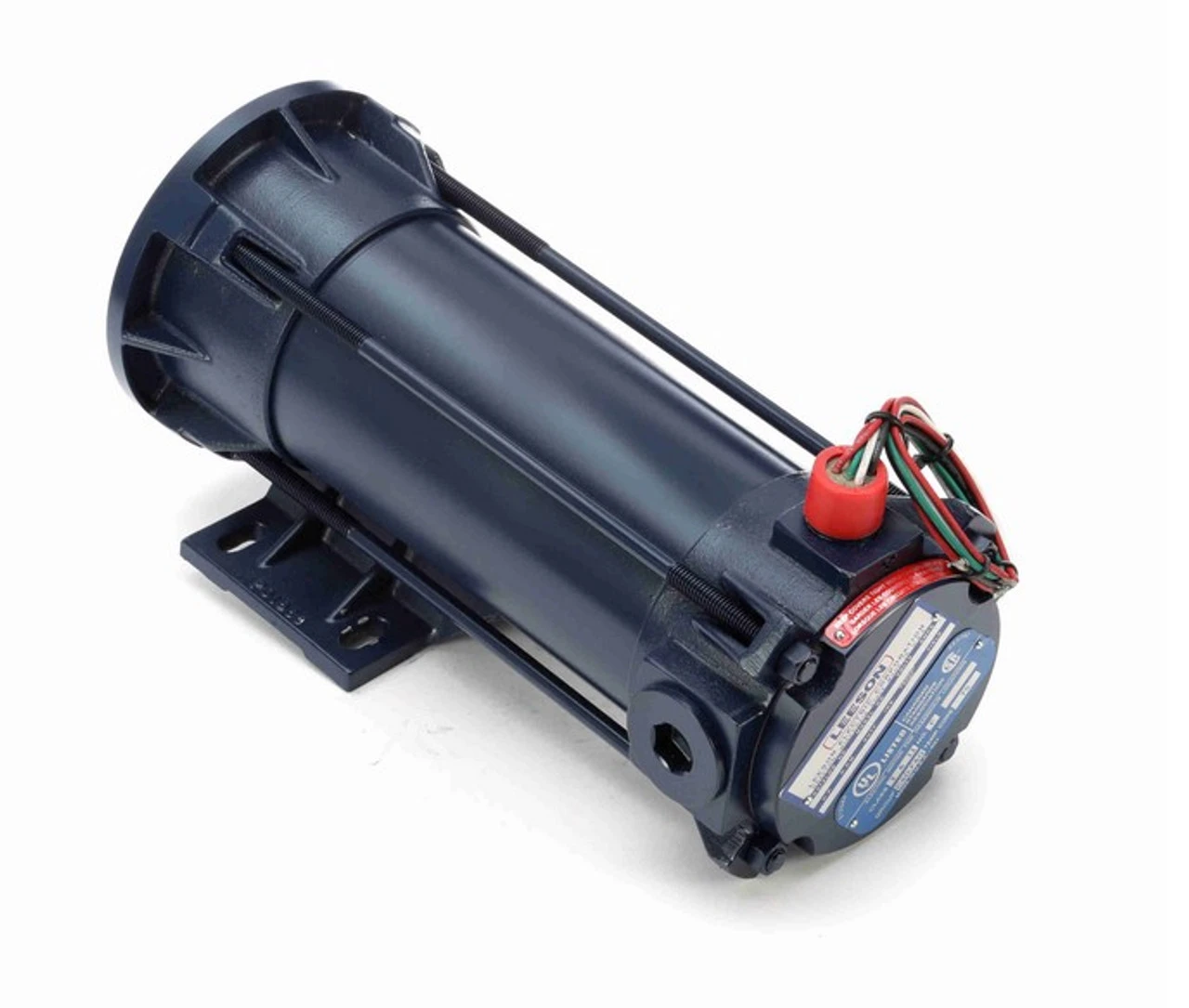

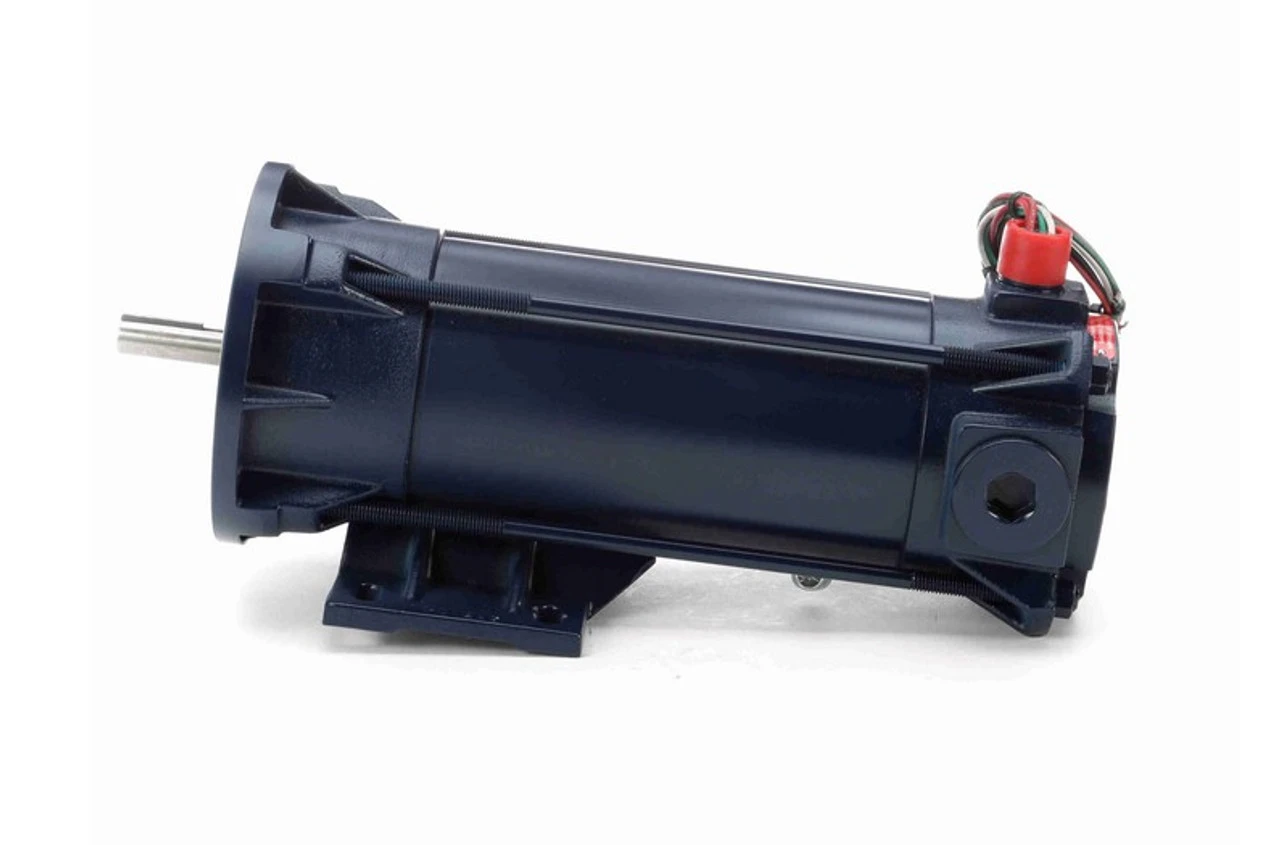

118018.00 Leeson 3/4 Hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor

Original price was: $367.00.Current price is: $95.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

3/4 hp 1800 RPM, 7.1 amps 90 Volt DC Controllable Motor
NEMA 56C Frame, Shaft 5/8″ Diameter x 1 7/8
Service Factor: 1.0 Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings, Class H Insulation
1 Year Manufacture Warranty

Explosion Proof C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Explosion Proof Class 1 Groups C and D, Class II Groups F and G. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. 118018.00
