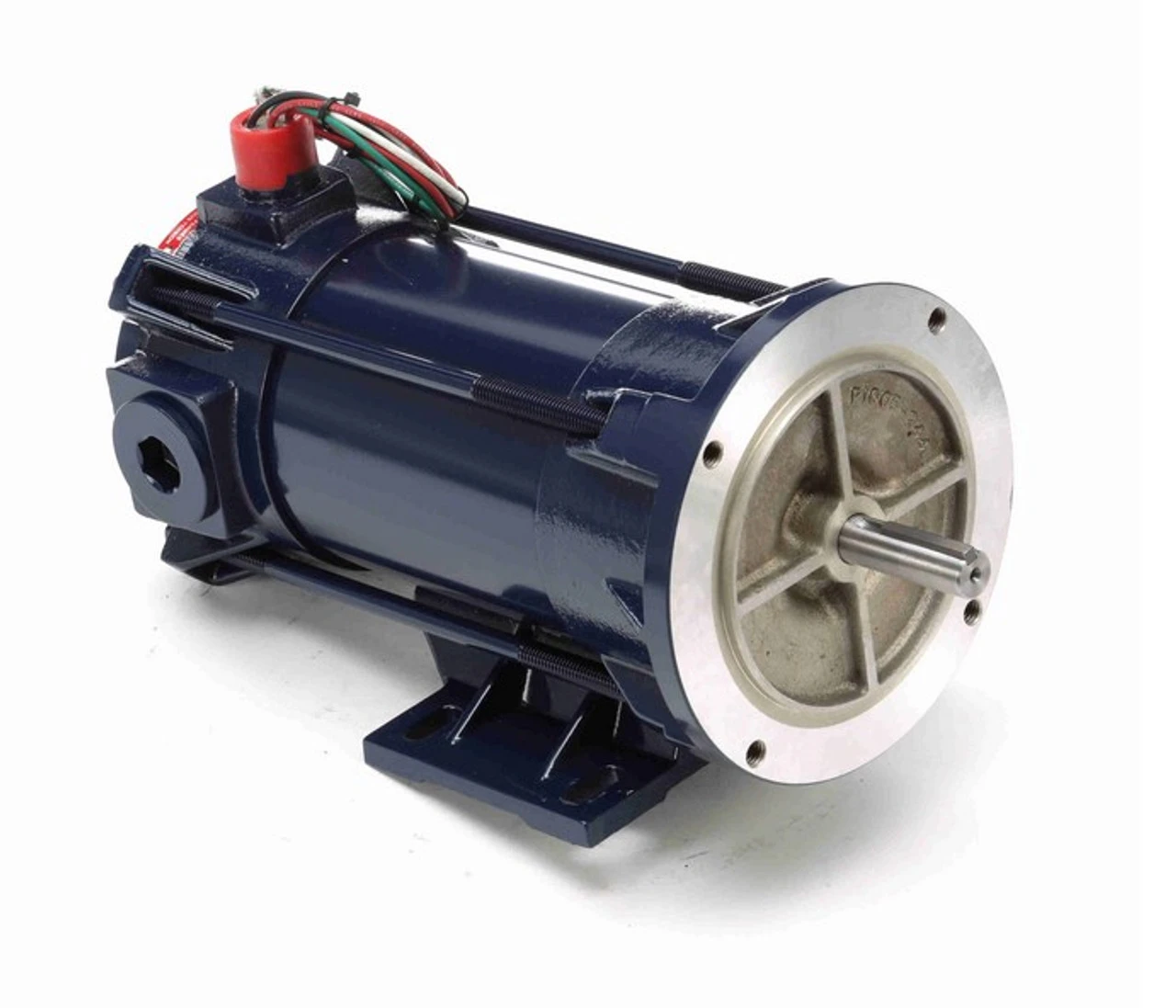

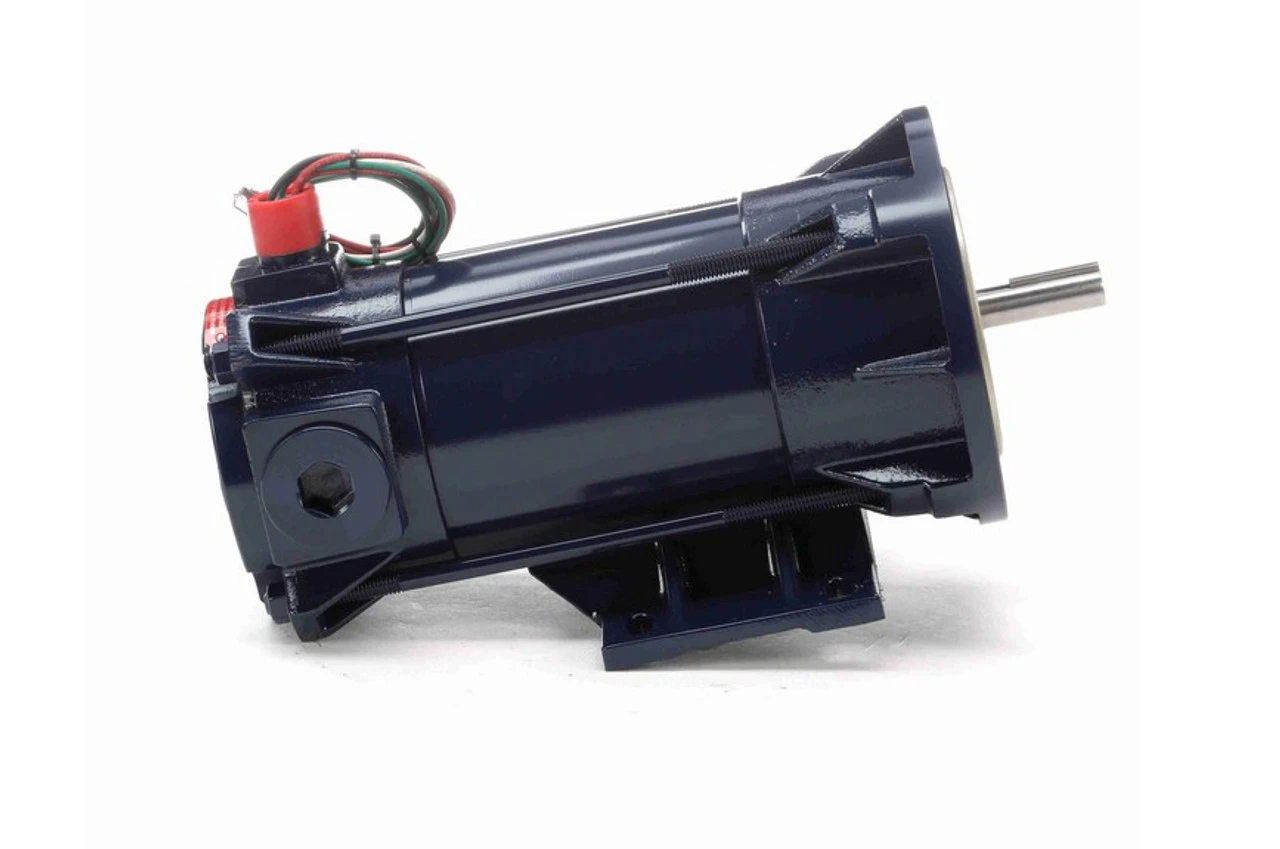

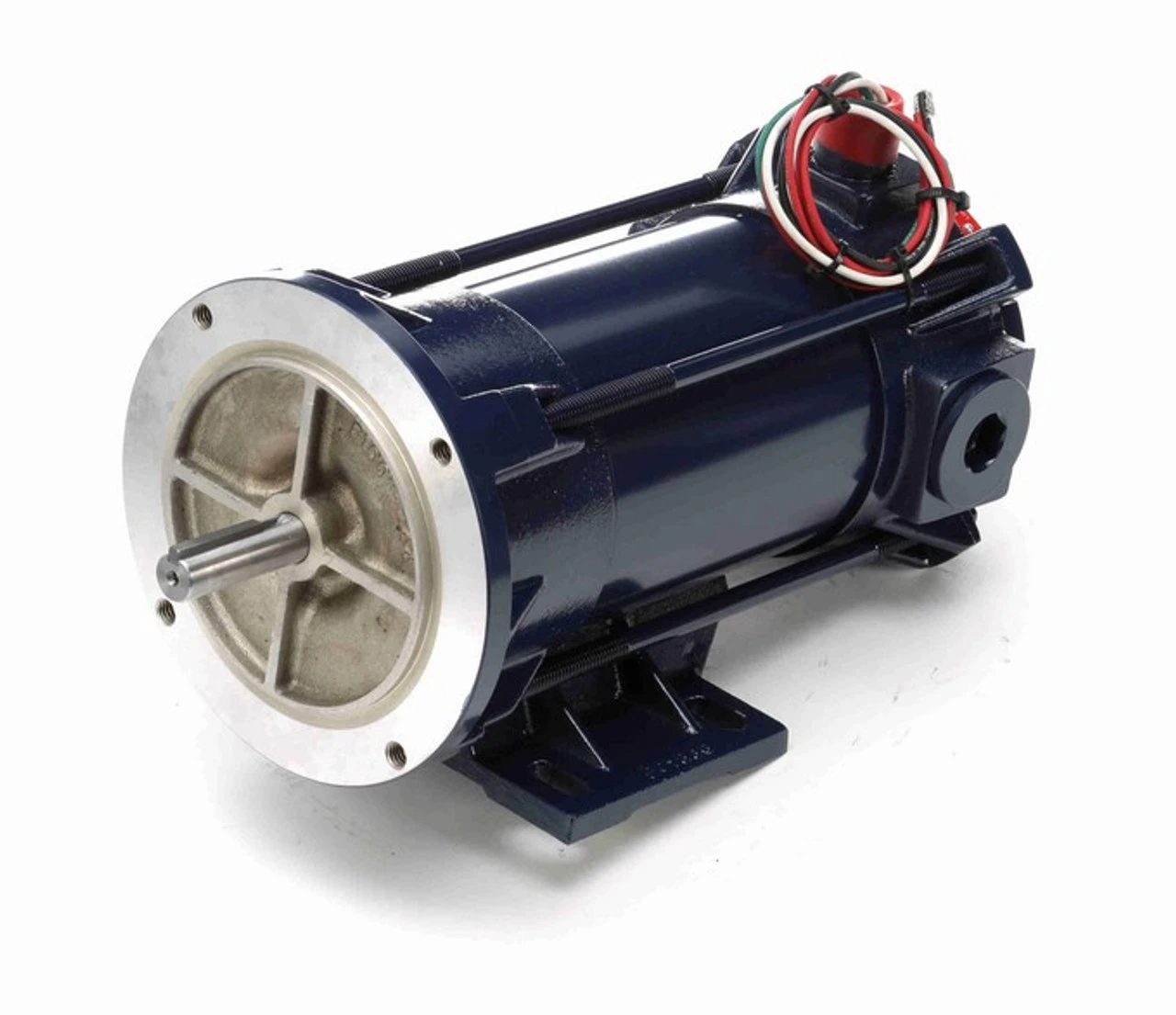

118015.00 Leeson 1/3 Hp 1800 RPM 90VDC 56C Frame (With Base) TENV DC Controllable Explosion Proof Motor

Original price was: $346.00.Current price is: $97.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/3 hp 1800 RPM, 3.5 amps 90 Volt DC Controllable Motor
NEMA 56C Frame, Shaft 5/8″ Diameter x 1 7/8
Service Factor: 1.0 Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings, Class H Insulation
1 Year Manufacture Warranty

Explosion Proof C-Face DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Explosion Proof Class 1 Groups C and D, Class II Groups F and G. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. 118015.00
