116607.00 Leeson 1/3 Hp 1200 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor

Original price was: $311.00.Current price is: $98.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1/3 hp 1200 RPM, 7.8/3.6-3.9 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload Protection = Auto
Rigid Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

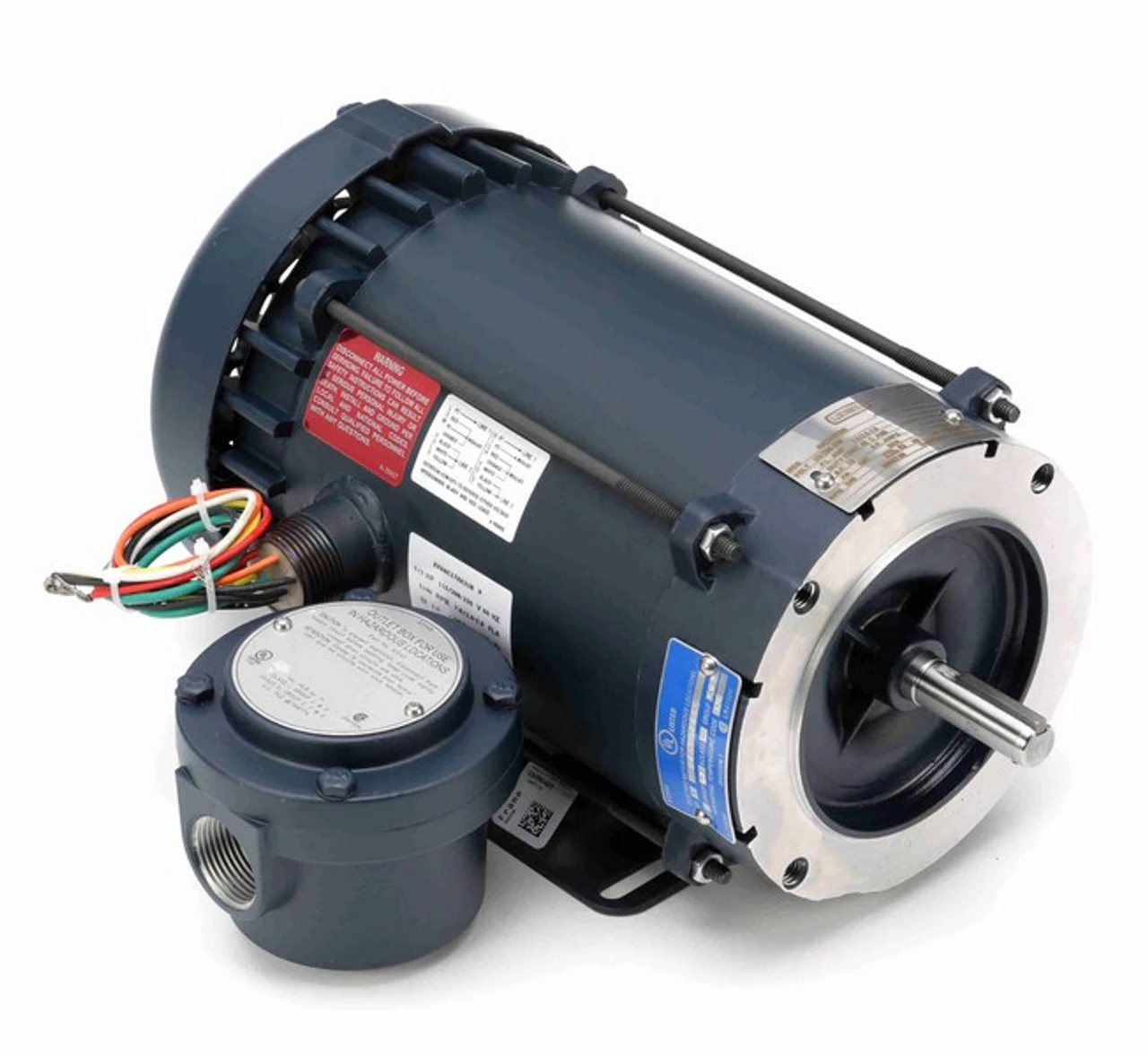

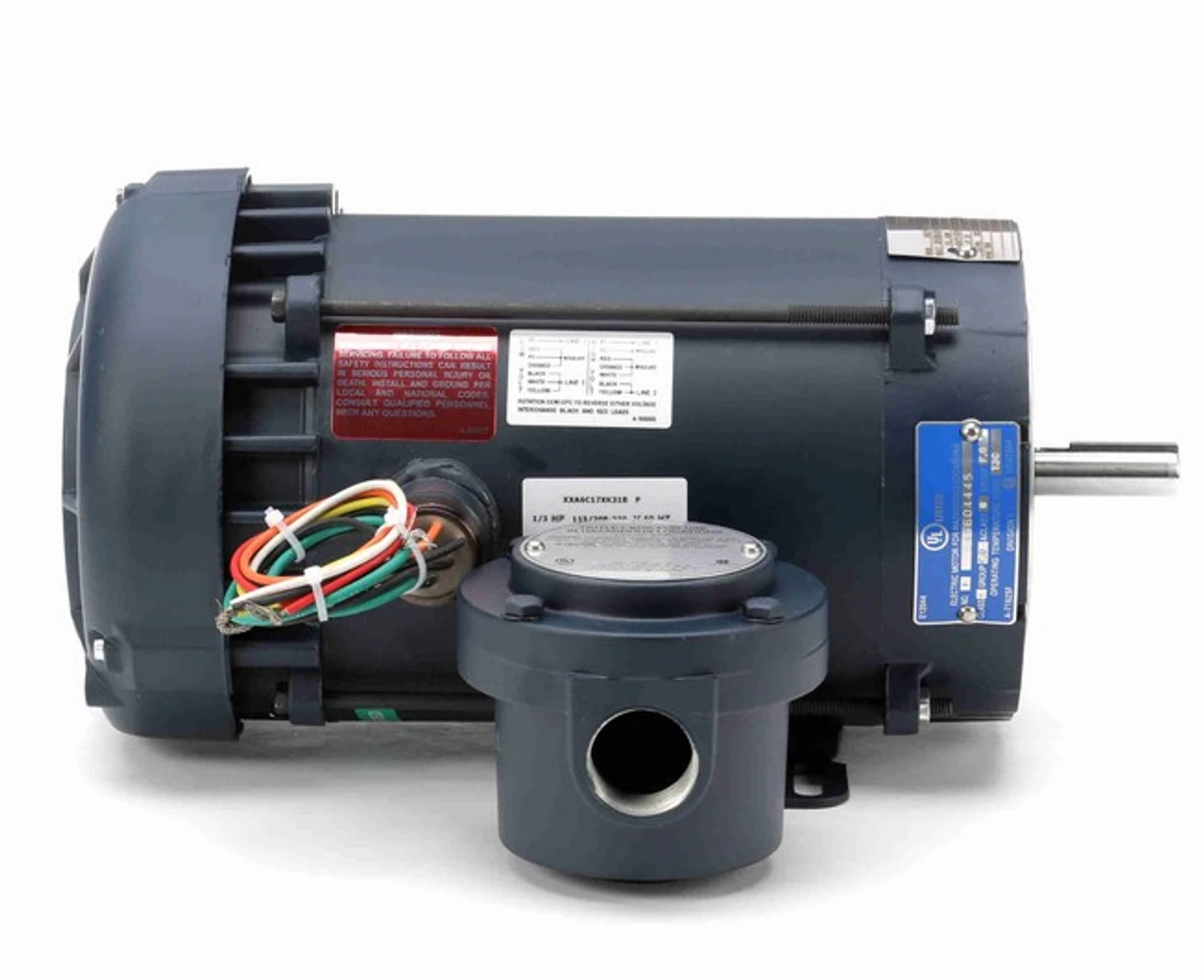

Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.116607.00
