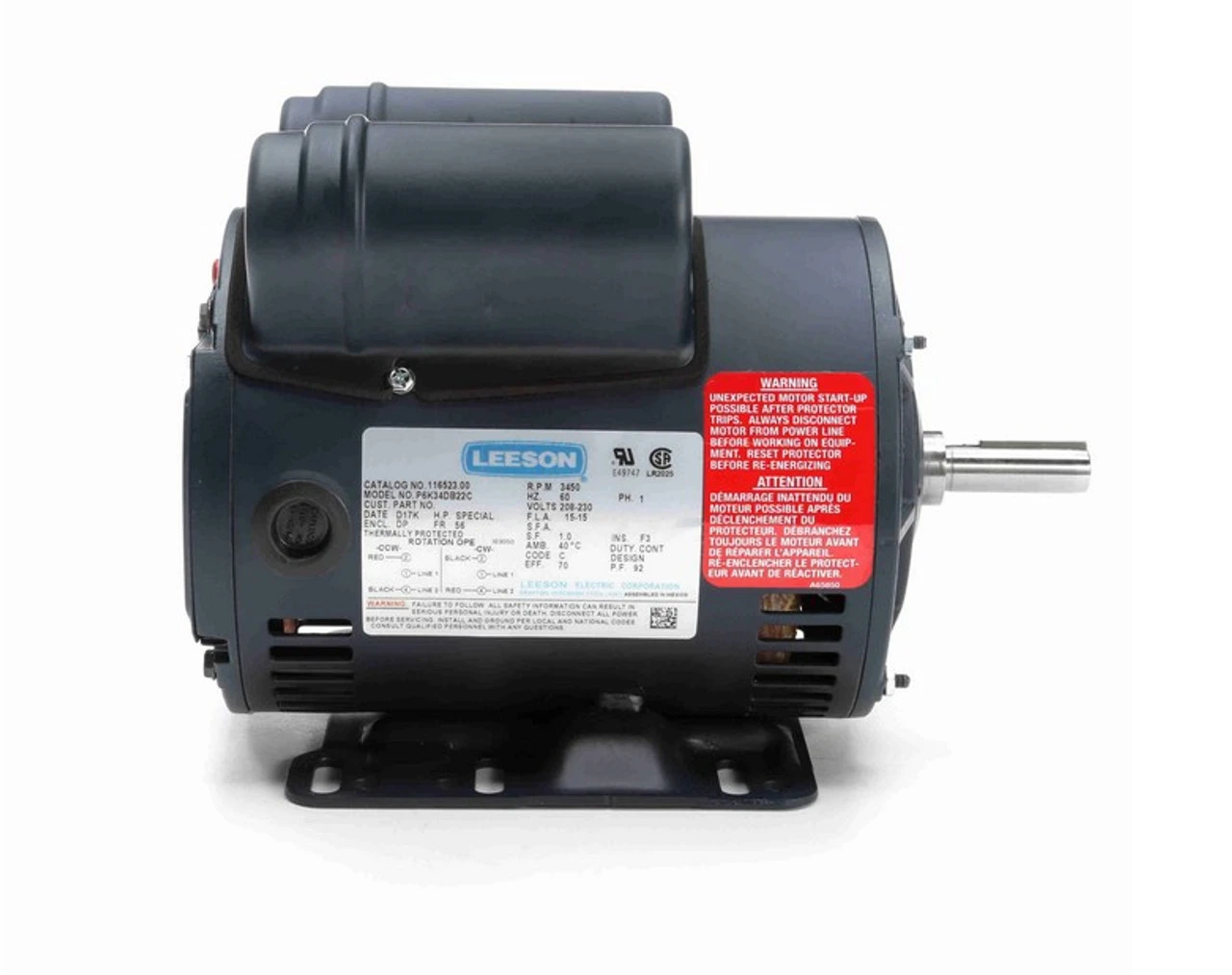

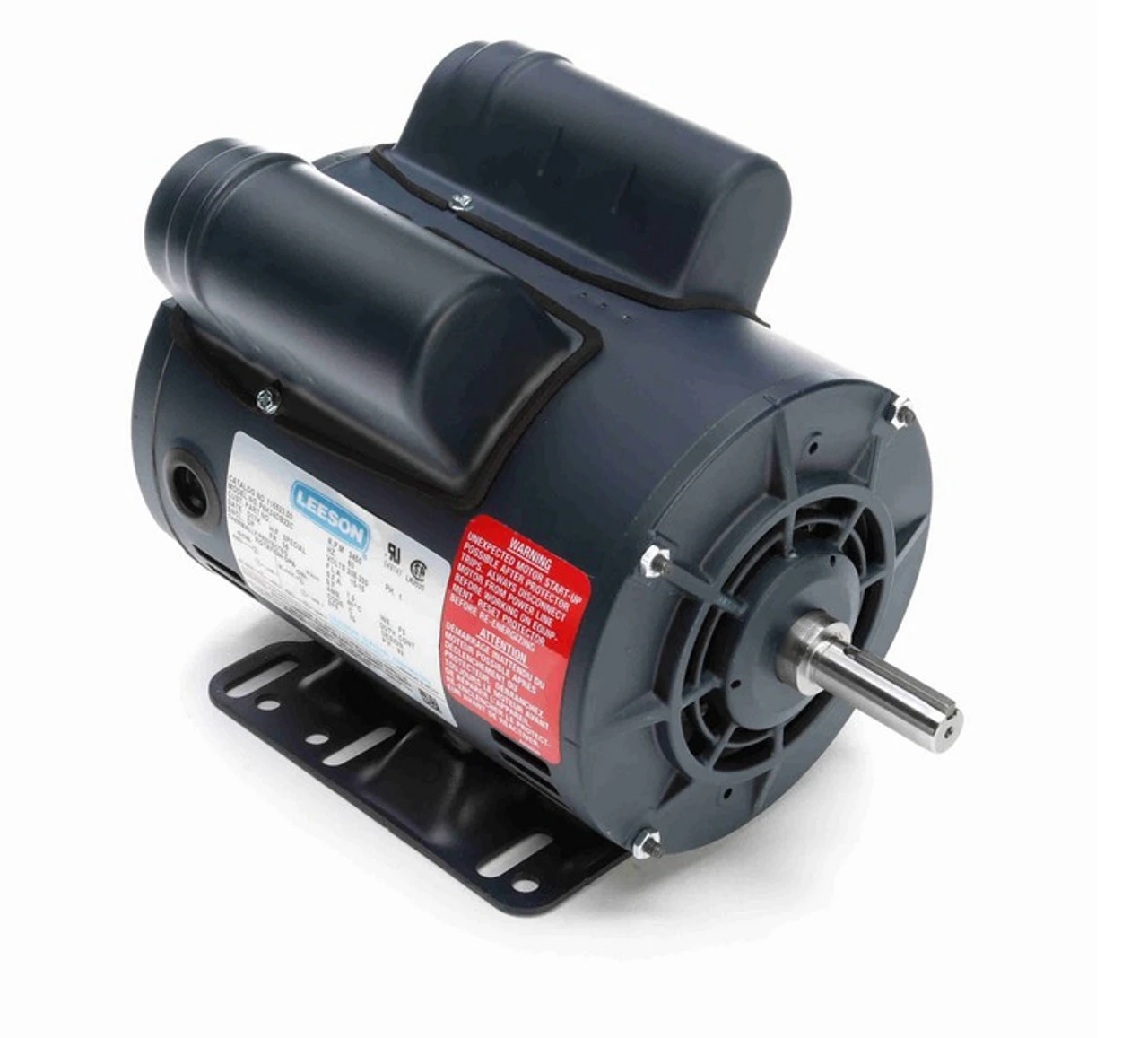

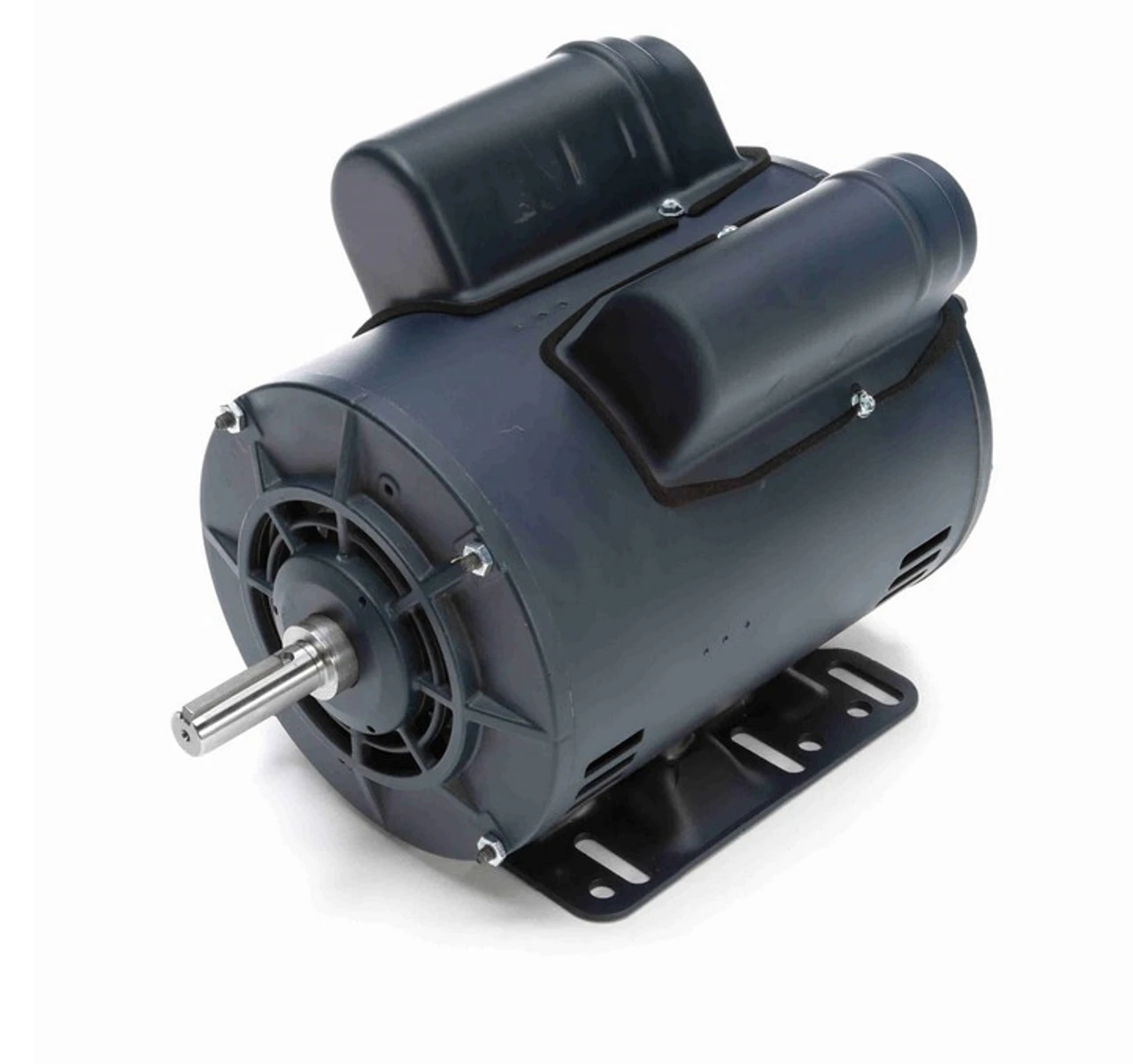

116523.00 Leeson 5 Hp 3600 RPM 208-230V 56 Frame (Rigid Base) ODP 1-Phase Compressor Motor
Original price was: $392.00.$96.99Current price is: $96.99.
- Product guarantee 100% satisfaction
- Secure Shopping with Safe Payments
- The home of quality products.
- Best price, safe shopping guarantee
- 5 hp 3600 RPM, 15.0 amps 208-230 Volts 60 Hz. Capacitor Start/Run 1-Phase Motor
- NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0 Overload Protection = Manual
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Air compressor motor designed to have higher torque than general purpose motors. Wiring diagram on motor name plate. ODP = Open Drip Proof.
Replaces Marathon 5KCR48UN2654Y, 9040
