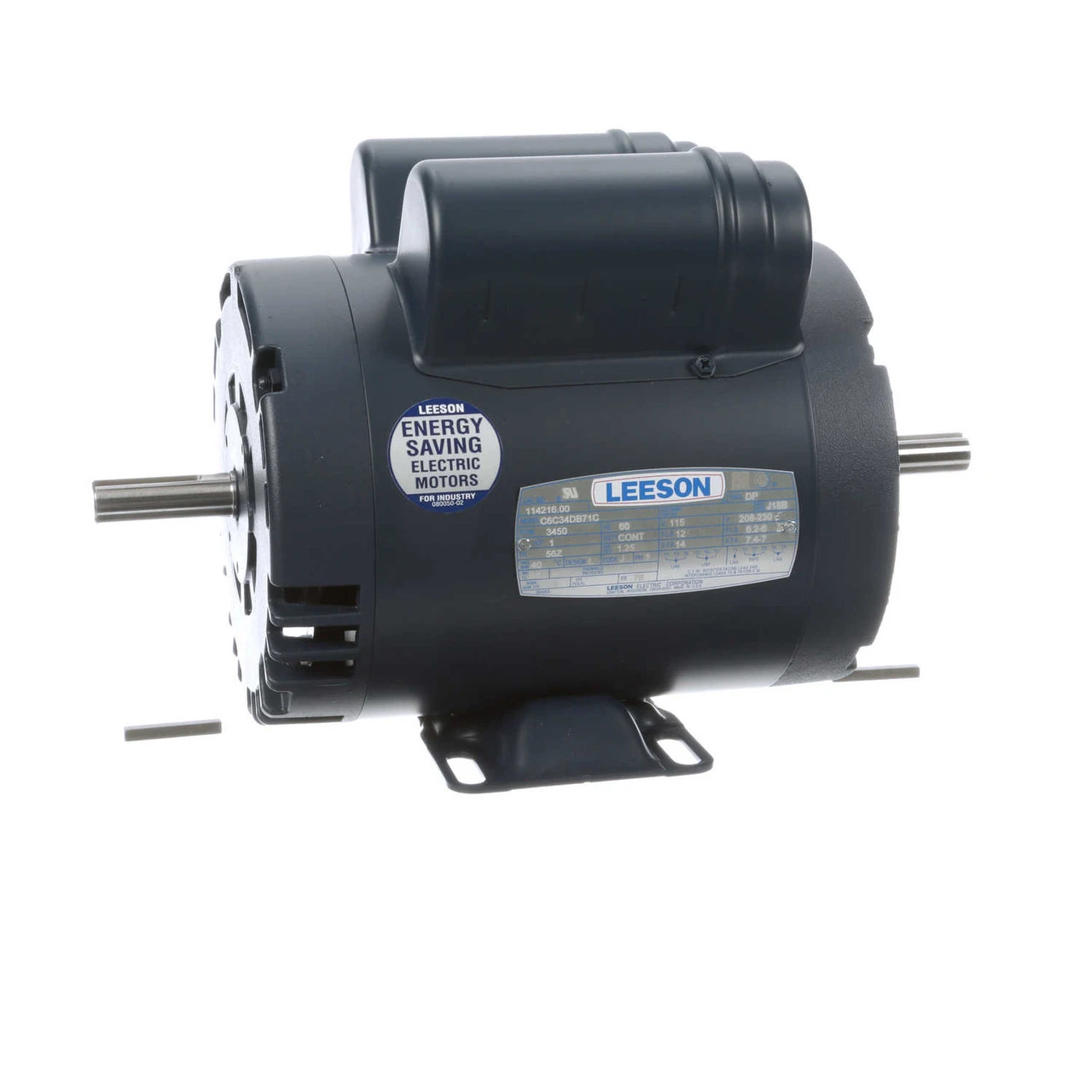

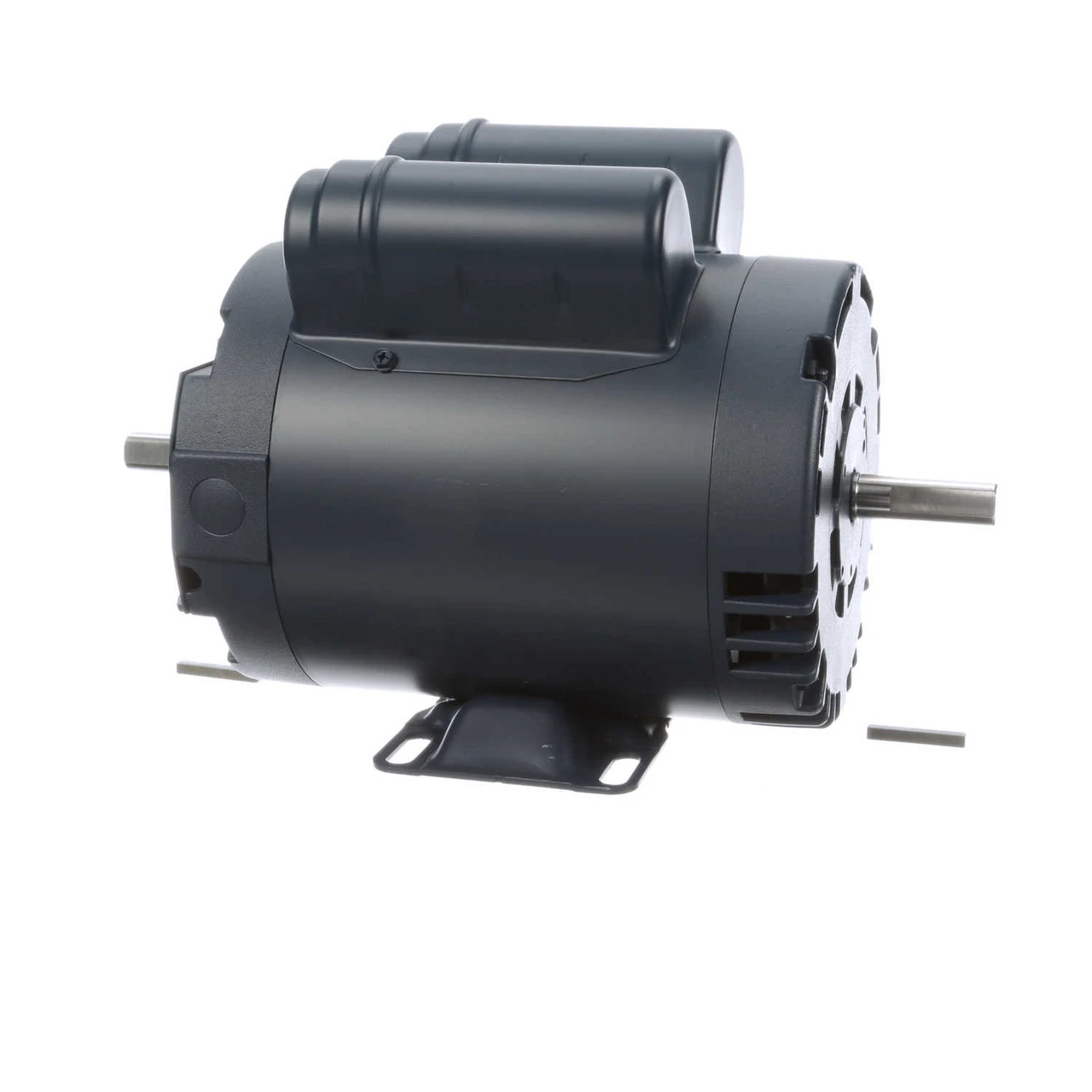

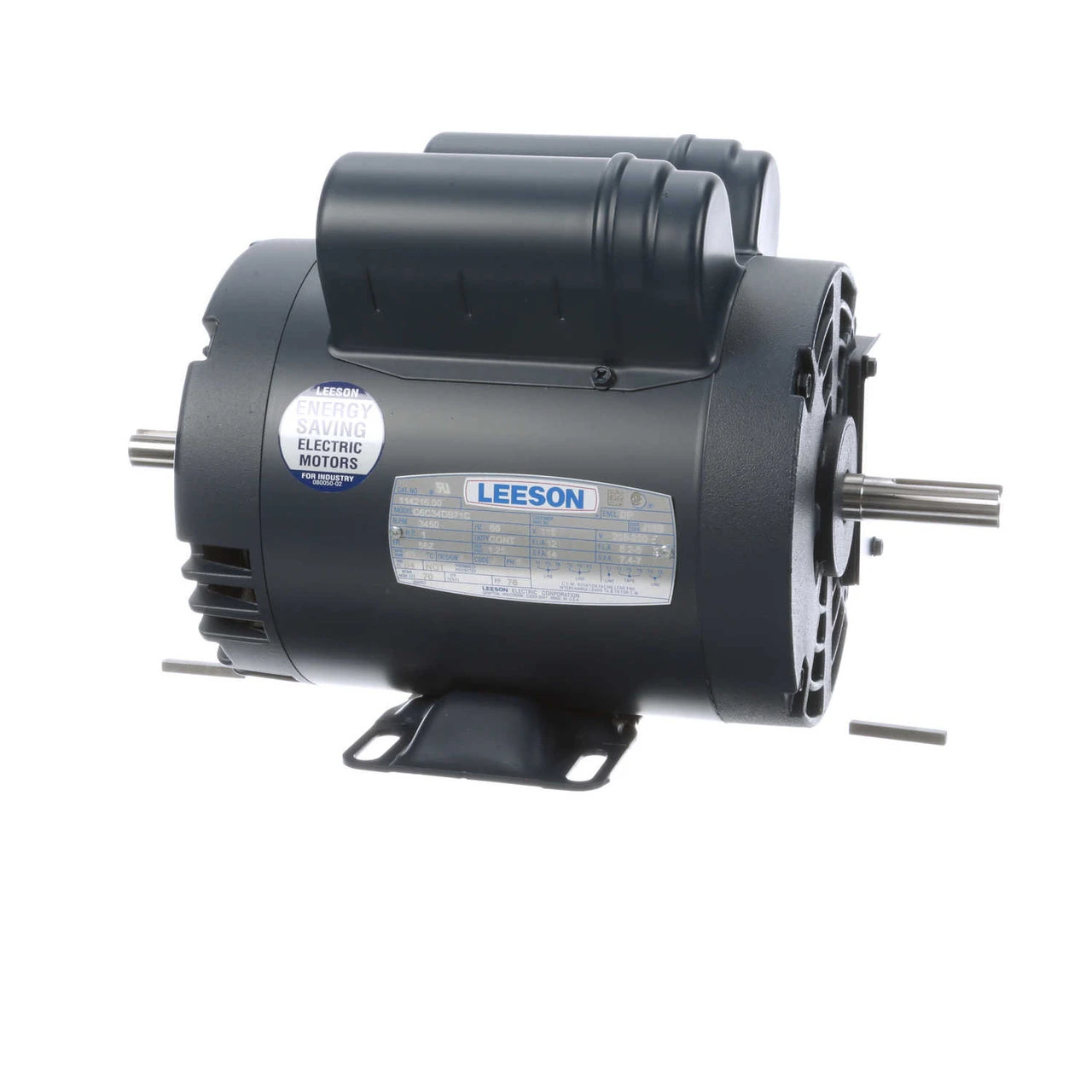

114216.00 Leeson | 1 Hp 3450 RPM 115/208-230V Double Shafted Power Tool Motor

Original price was: $329.00.Current price is: $98.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

1 hp 3450 RPM, 12.0/6.0 amps, 115/208-230V 60hz.
Double shielded ball bearings to prevent failures caused by saw dust accumulation
Open Drip Proof – Rigid Base Mounting – 56Z Frame
Service Factor 1.25; Class B Insulation
Capacitor Start Induction Run
Overload Protection = None

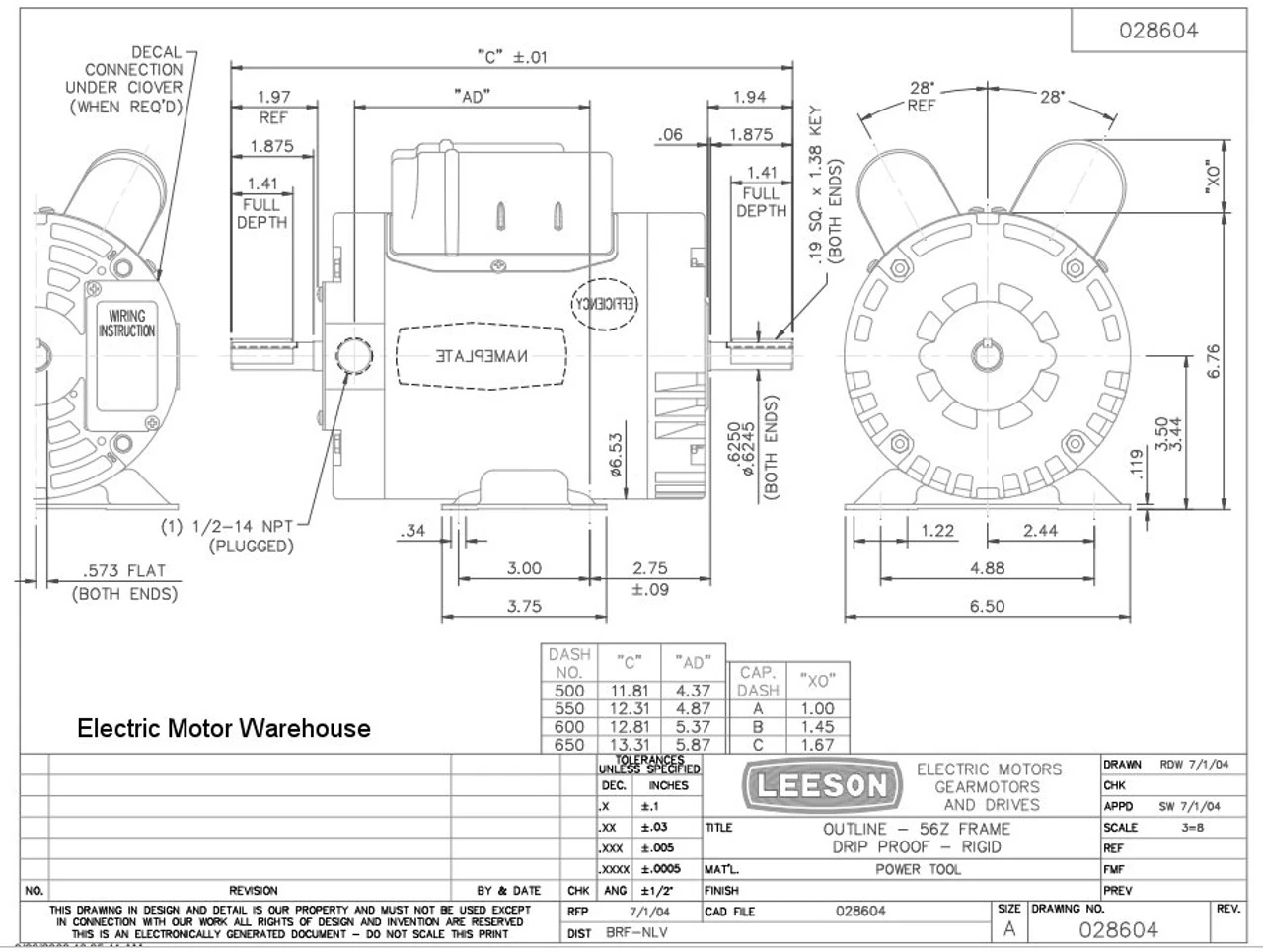

Overall Motor Length = 12.81 inches, motor name plate shows wiring diagram

Capacitor Start for high torques and reduced amperage, improved efficiency. Encapsulated, electronic starting switch. Shaft extension each end, with keyway and flat 90 degrees apart of mounting. Useable shaft, each end is 1 7/8″ long by 5/8″ diameter. No overload protection. Capacitor start. 1 year manufacture warranty.

Woodworking/Powertool Motor. C6C34DB71C, 114216.00
