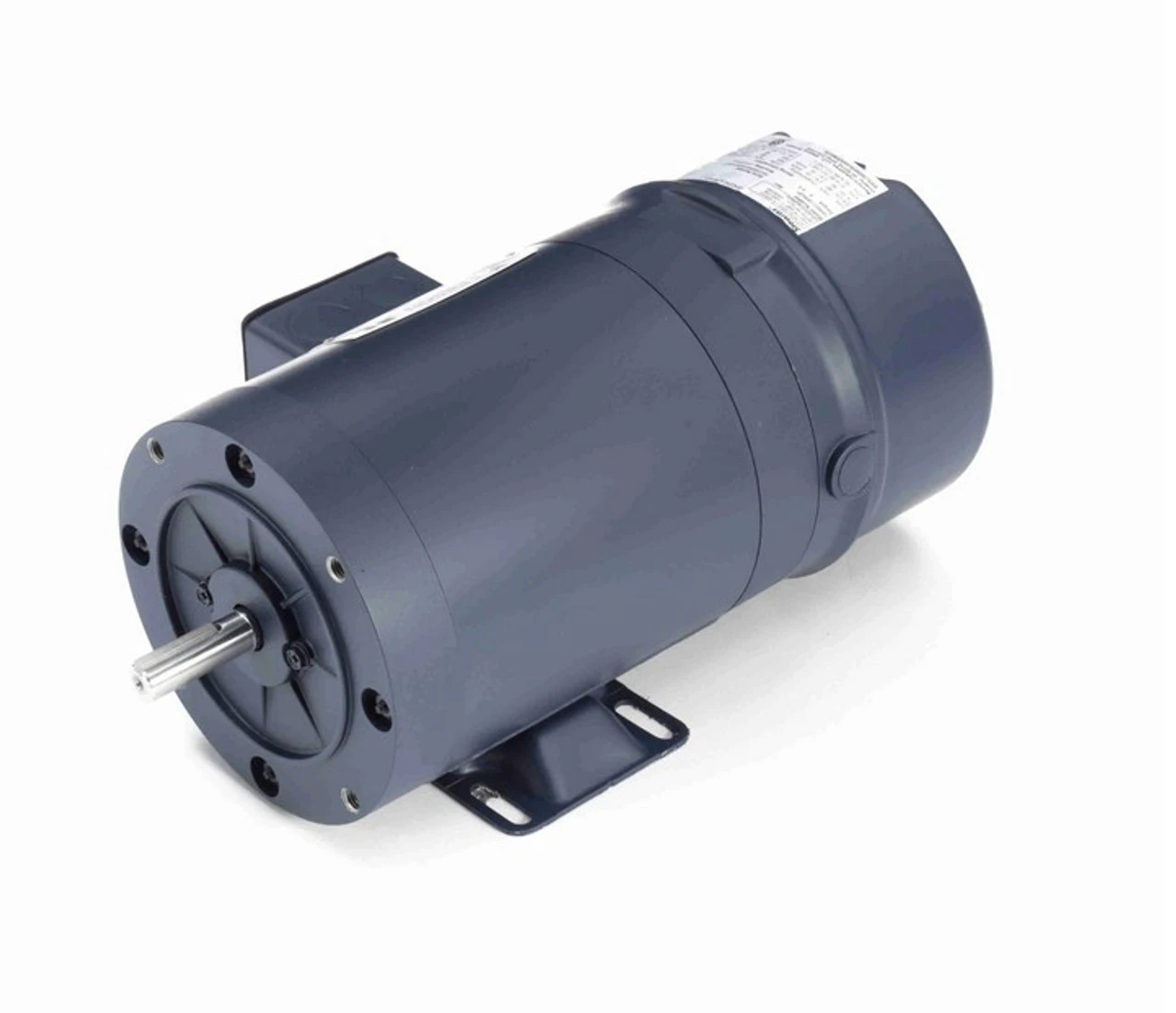

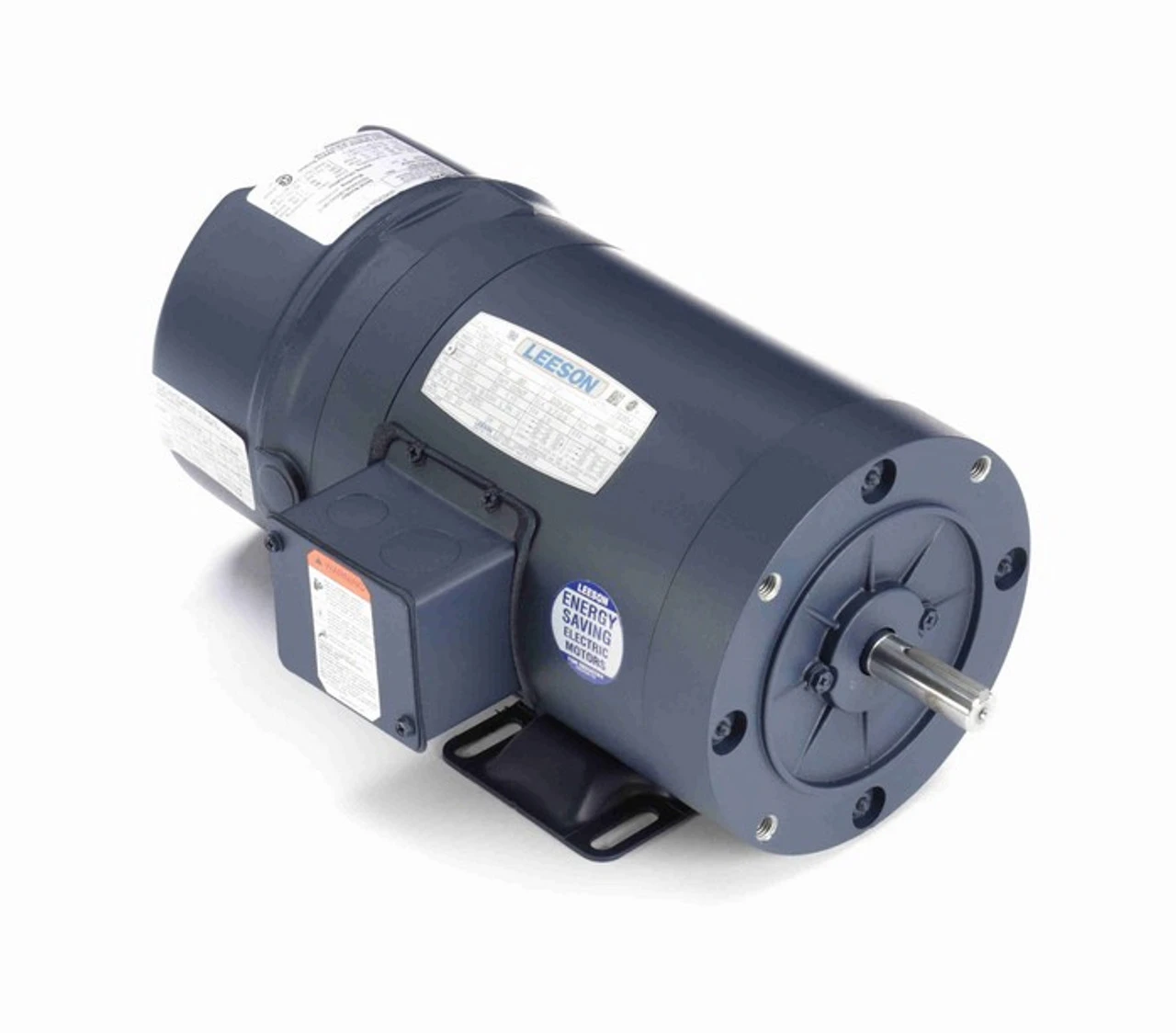

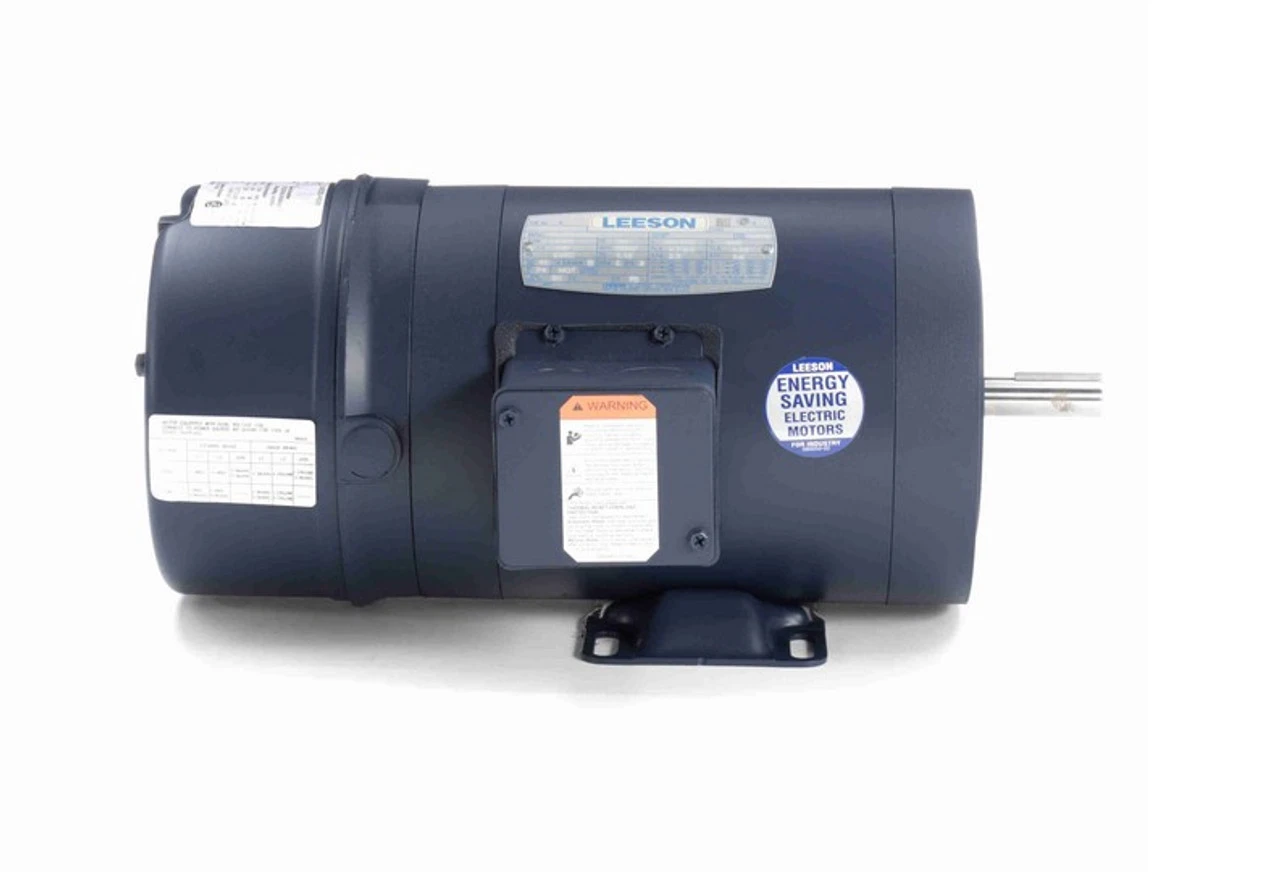

110671.00 Leeson 3/4 Hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor

• 3/4 hp 1800 RPM, 2.7-2.5/1.3 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 5/8
• Service Factor: 1.15, Overload Protection = None
• Rigid Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

Brake motor with a C-face mount with brake engaged when motor powered off. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally-Enclosed Non-Ventilated. 110671.00
