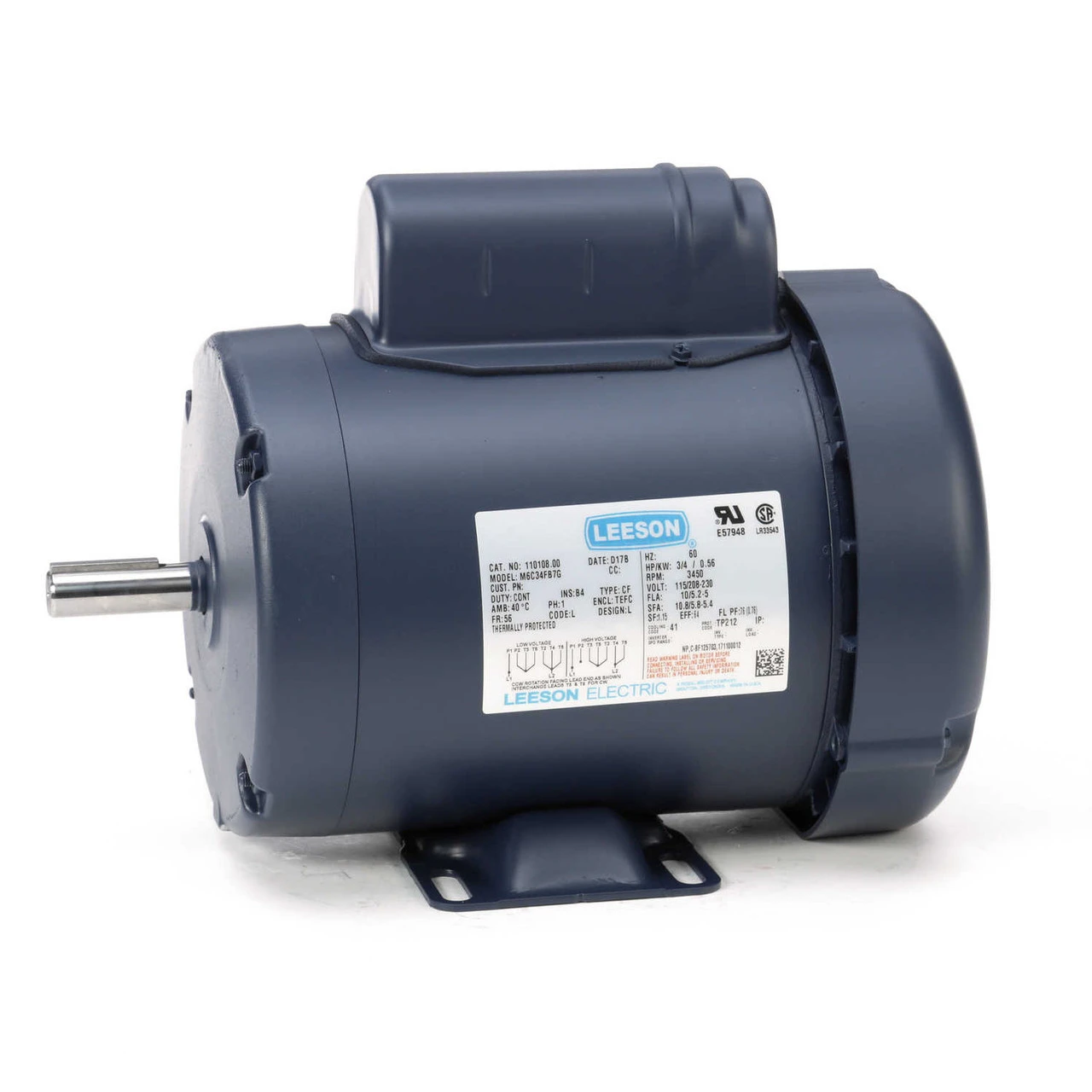

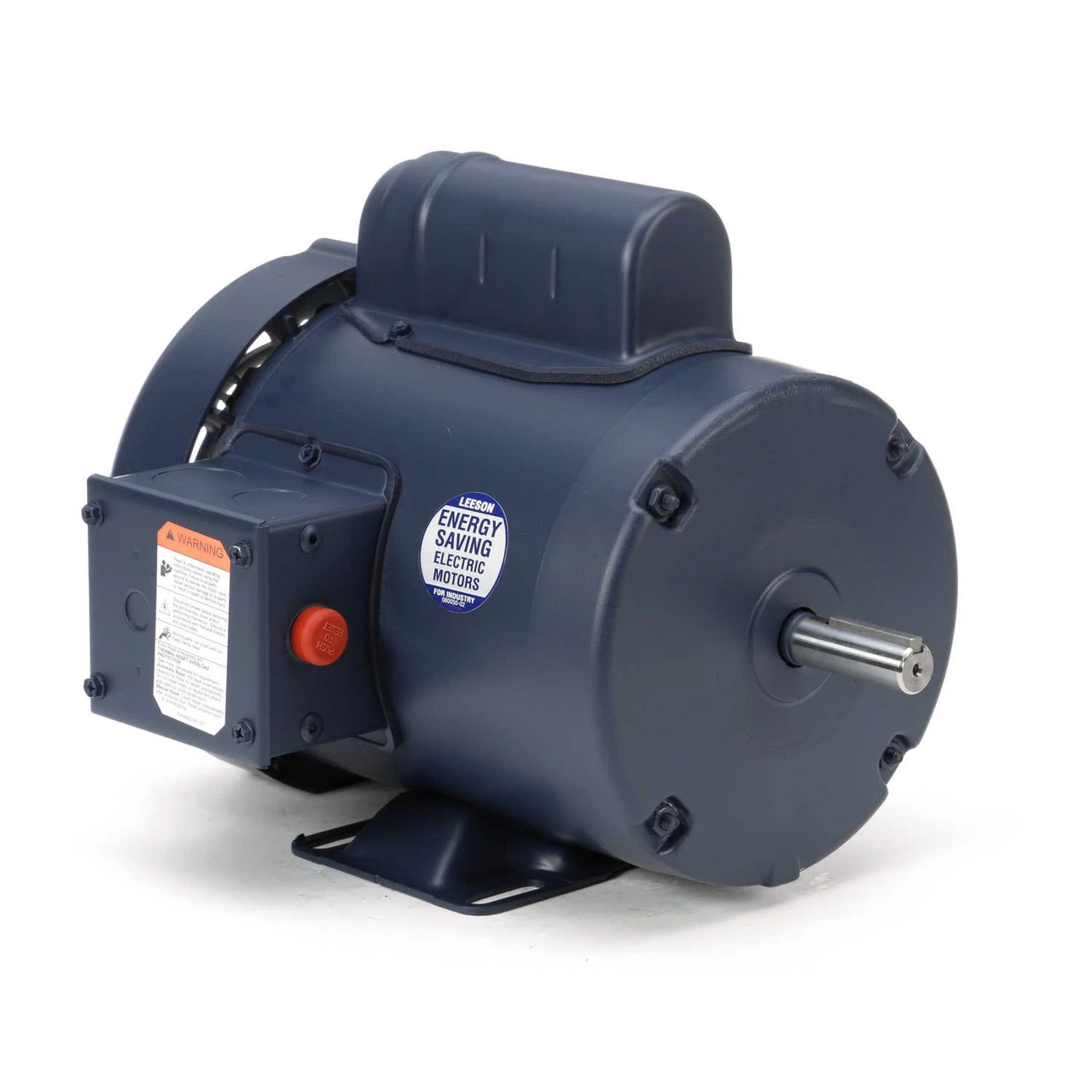

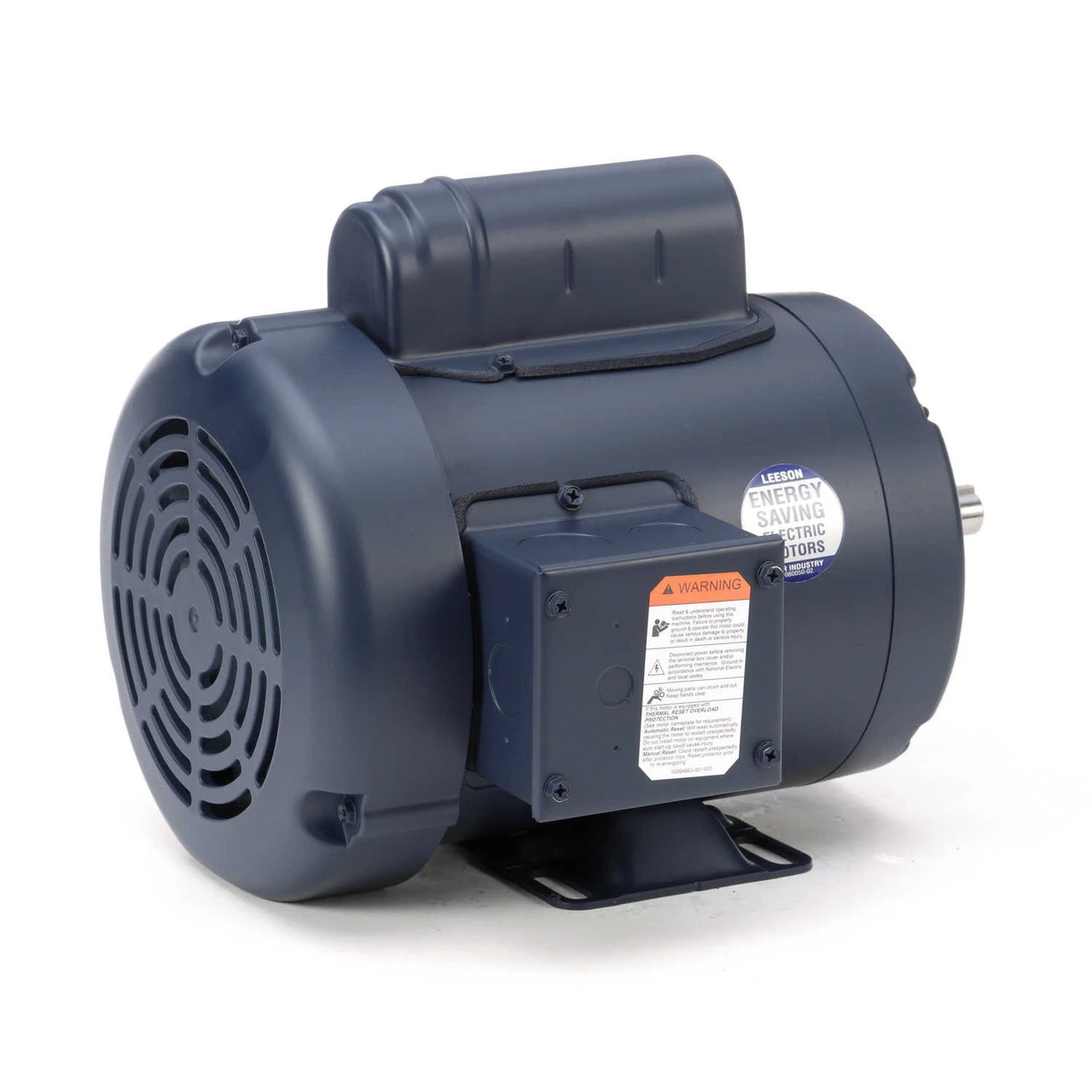

110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection

Original price was: $381.30.Current price is: $99.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

3/4 hp 3450 RPM, 10.0/5.0 amps, 115/208-230V 60hz
NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
TEFC – Totally Enclosed Fan cooled
Manual Overload Protection – Service Factor 1.15
Rigid Base Mount – Ball Bearings – Class B Insulation
Overall Motor Length = 11.31 inches

This is an excellent motor for woodworking equipment such as table saws, planners, etc. Totally Enclosed Fan Cooled design prevent motor problems caused by wood dust and shavings. Motor has a keyed shaft and is electrically reversible. Motor name plate shows wiring diagram.

M6C34FB7G, 110108.00
