110088.00 Leeson | 1 Hp 1725 RPM 56 Frame TEFC (Farm Duty)115/208-230 Volts

Original price was: $399.00.Current price is: $98.99.

Product guarantee 100% satisfaction

Secure Shopping with Safe Payments

The home of quality products.

Best price, safe shopping guarantee

MADE IN THE USA

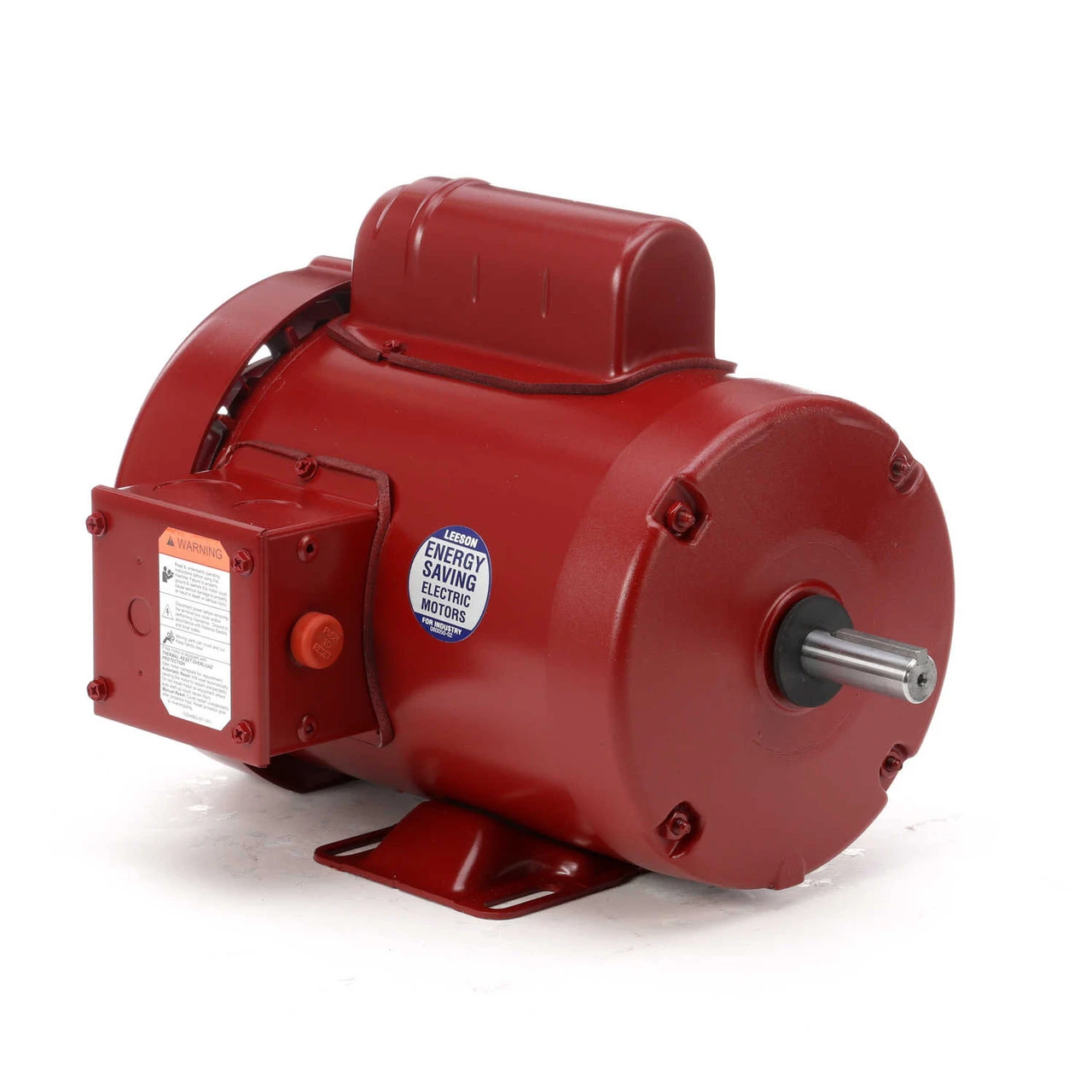

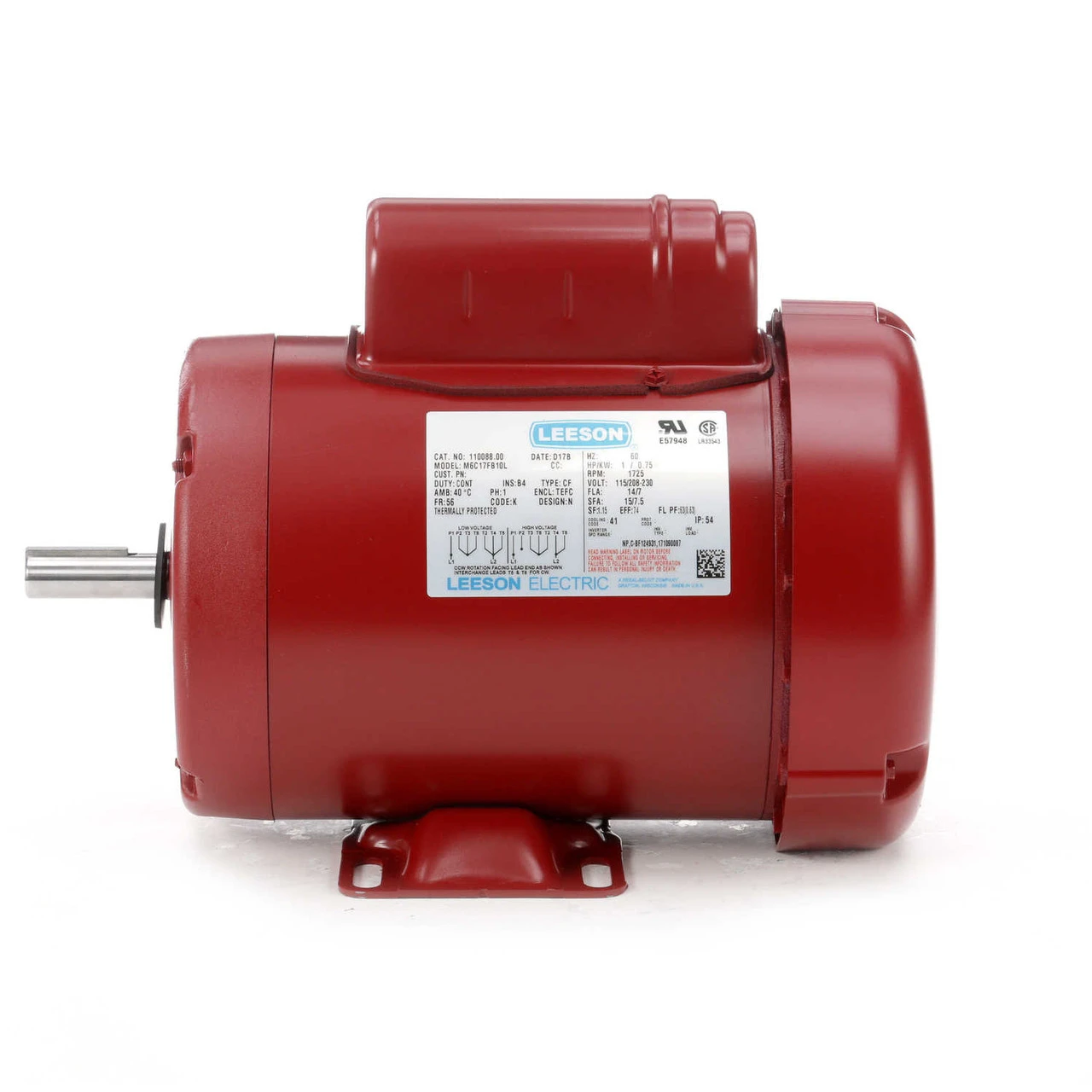

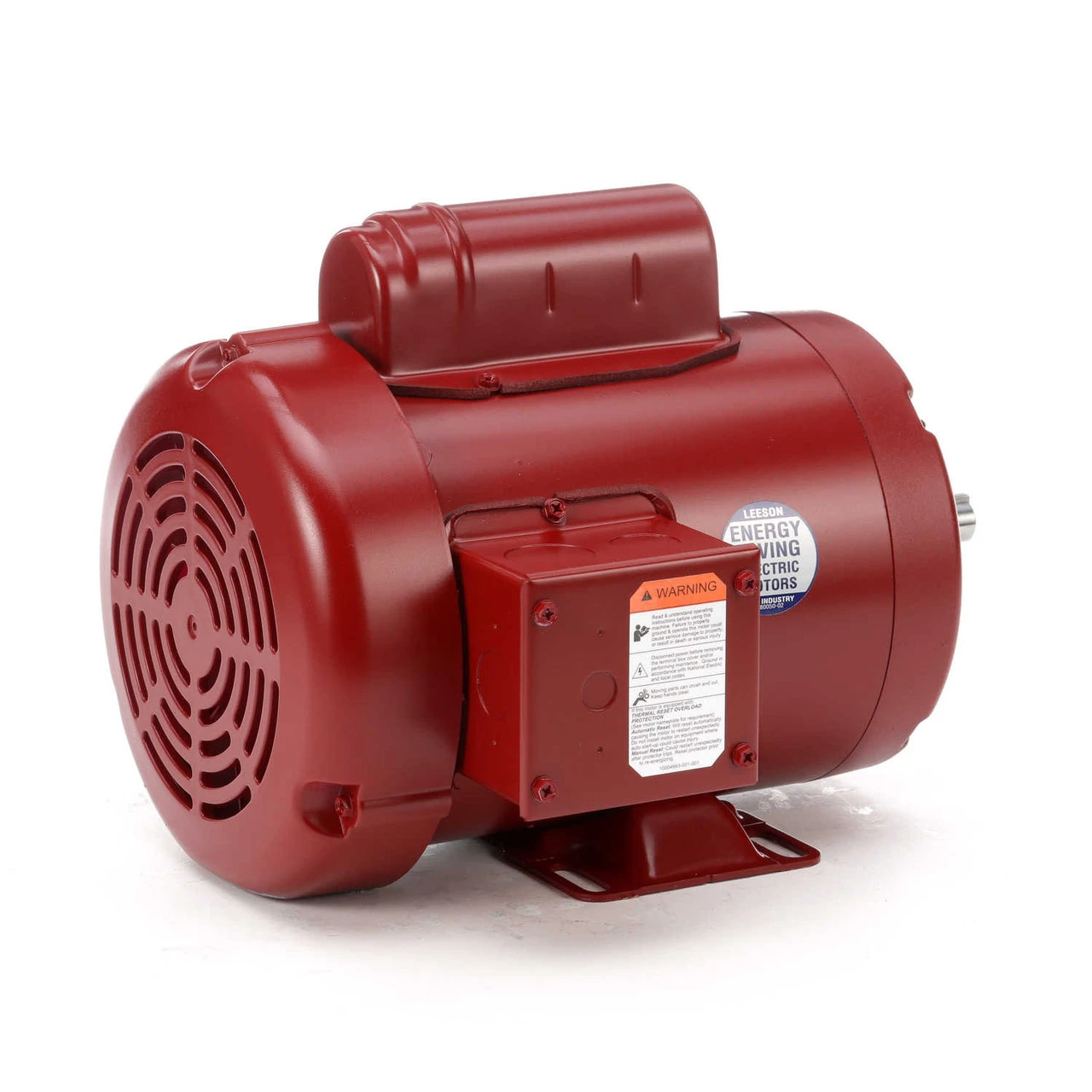

Single Phase Leeson Farm Duty High Starting Torque, Capacitor Start motor.

1 hp 1725 RPM, 14.0/7.0 amps, 115/208-230 volts 60hz
TEFC – Totally Enclosed Fan cooled
Electrically Reversible
Manual Overload Protection
Service Factor 1.15

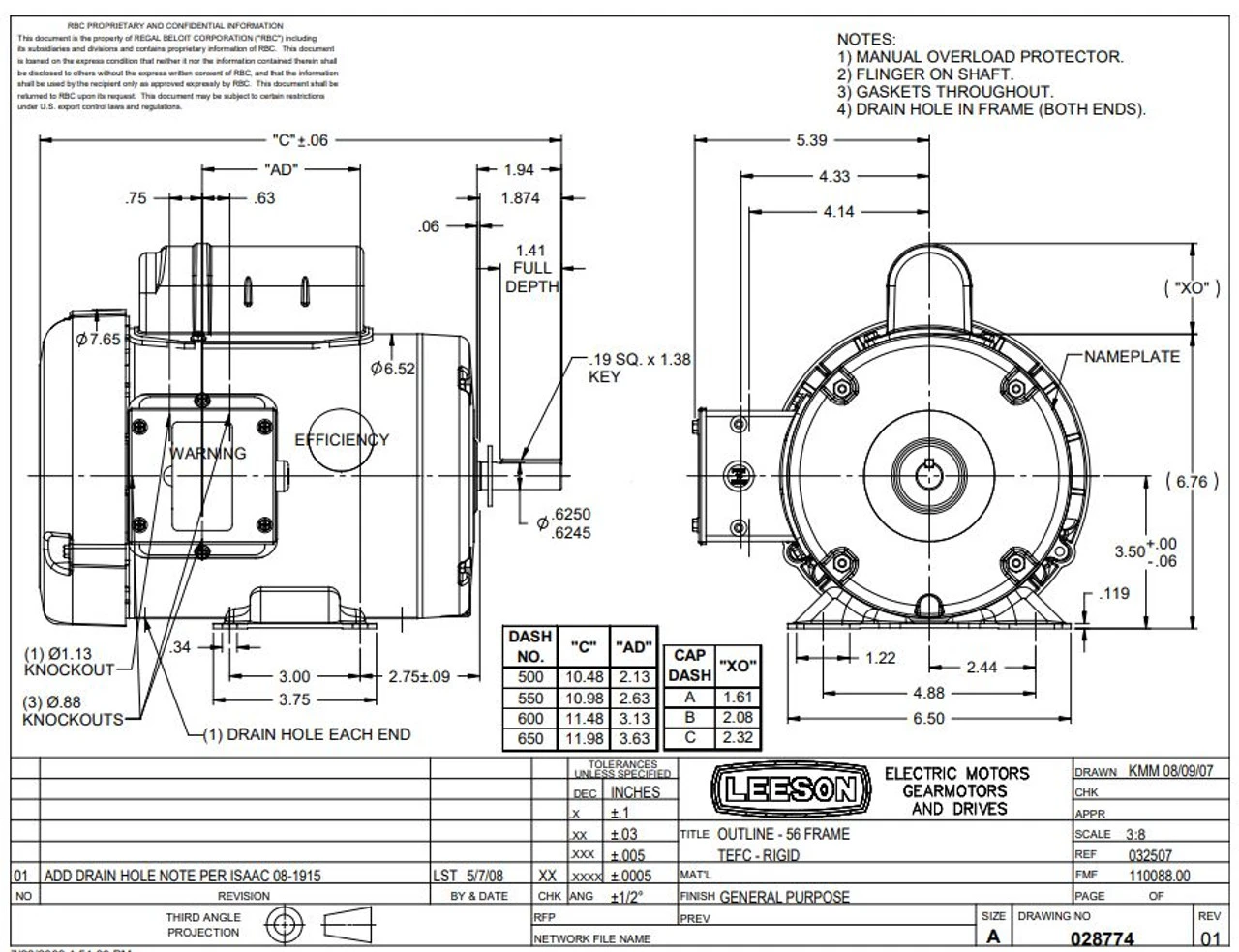

NEMA 56 Frame – Flat Rigid base mount
5/8″ Diameter shaft x 1 7/8″
Class F Insulated – Ball Bearings w/low temp grease
1 Year Manufacture Warranty

Excellent motor for any application requiring a 1 hp motor. This Totally Enclosed motor is Excellent for woodworking machines and other industrial machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 56 frame, flat base with 4 holes. 3″ x 5″ mounting. Farm duty motors have many extra features over standard motors such as double sealed bearings with Exxon grease for a temperature range of -20F to +350F. Rubber boot over reset button provides additional protection. Gasketed junction box and capacitor covers.

Agricultural Motor

Cross Ref: Marathon F104
Leeson Model M6C17FB10L, 110088.00
