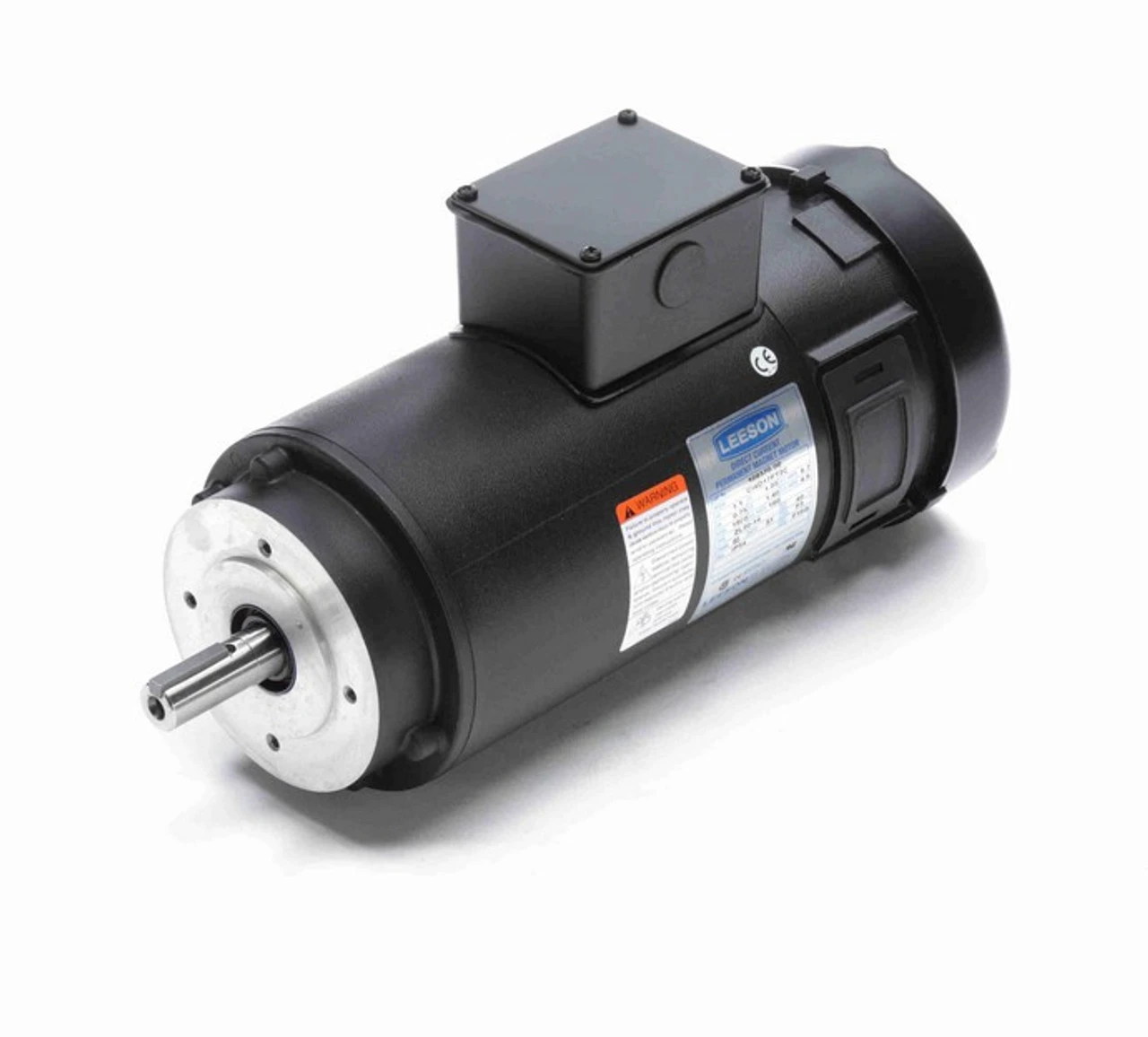

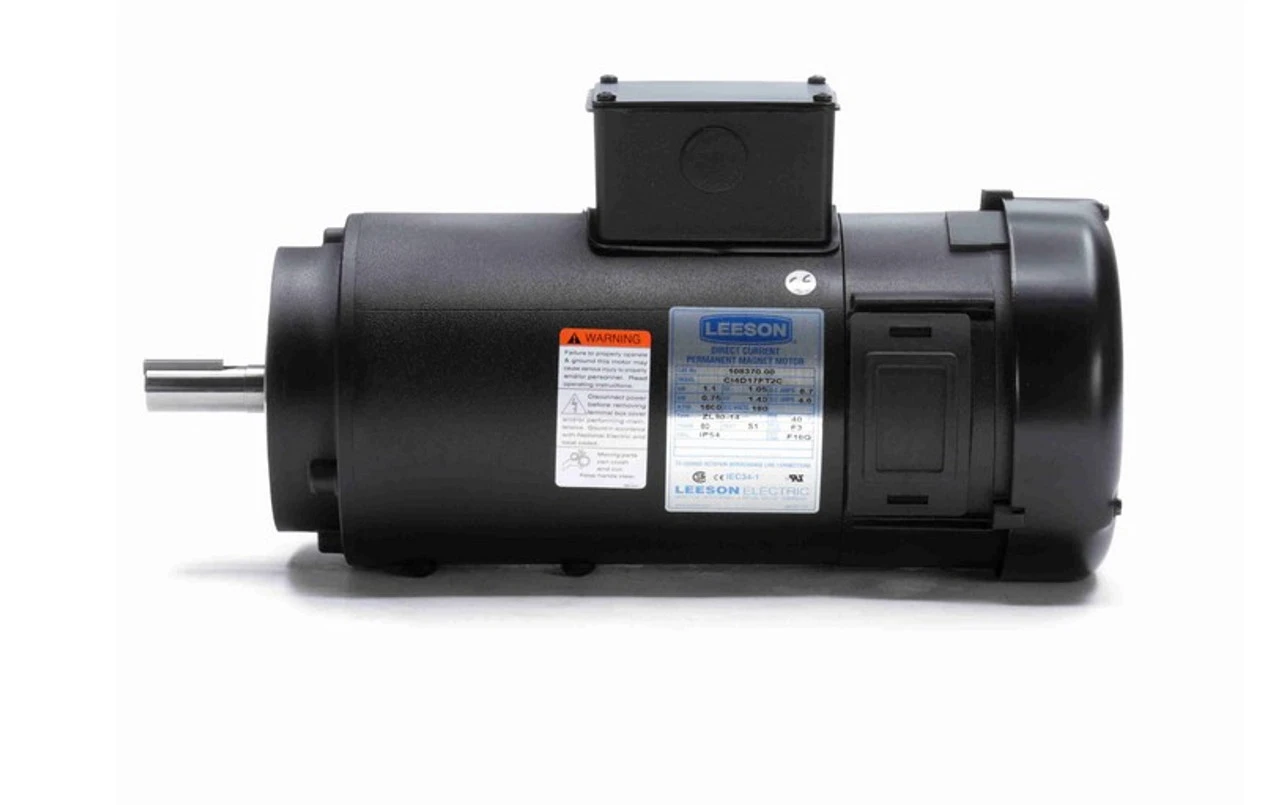

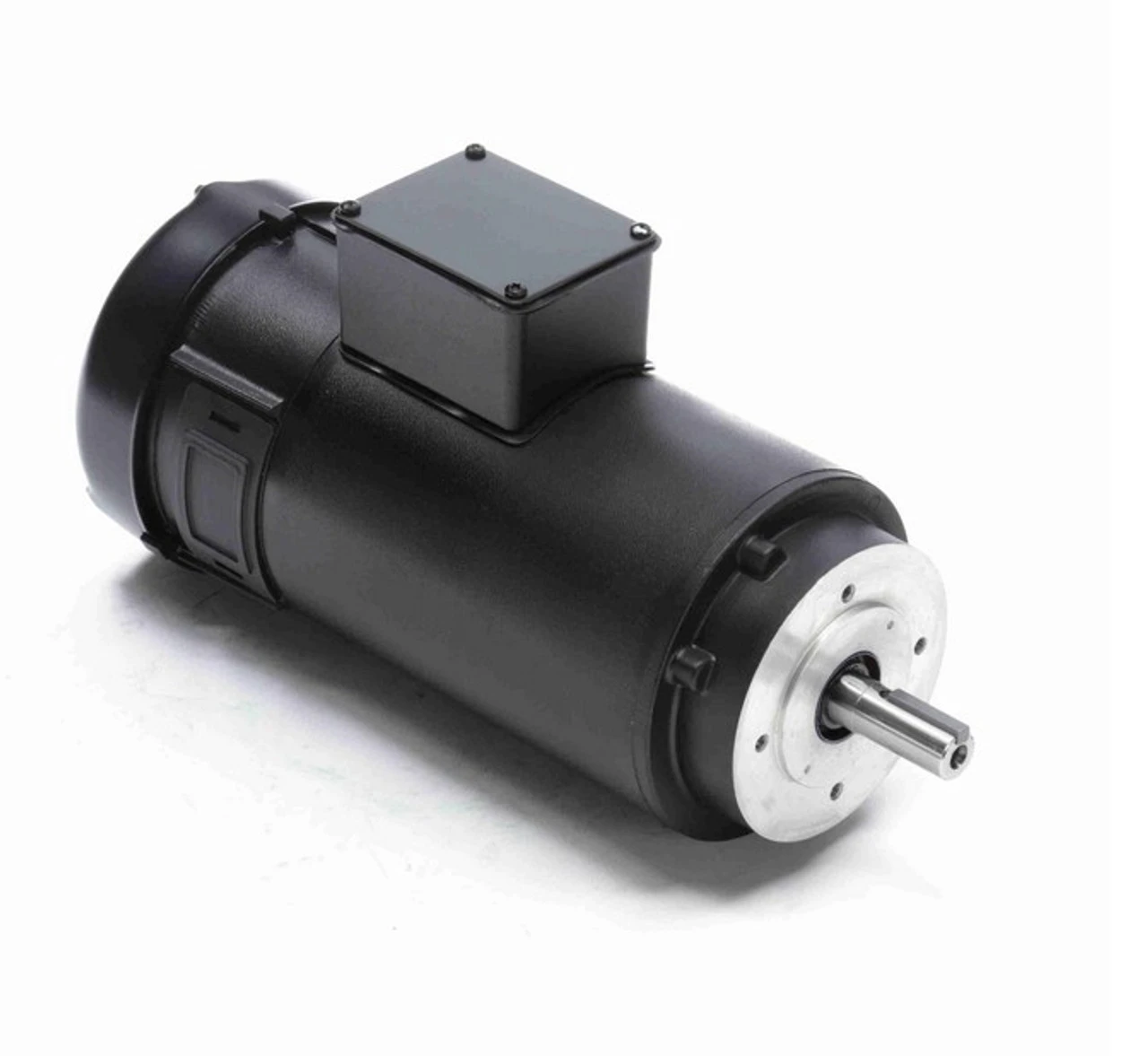

108370.00 Leeson 1.1 KW 1800 RPM 180VDC 80 Frame IP54 (No Base) TEFC Controllable DC Motor

• 1.1 kW 1800 RPM, 3.5 amps 180 Volt Controllable DC Motor
• IEC 71 Frame, IP54 Enclosure, Shaft 3/4″ Diameter x 2″
• Service Factor: 1.0 Overload Protection = None
• No Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty

Metric DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. 108370.00
